Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

E641484: 키트, RJ45에서 DB9 케이블, EloPOS에 대한 정보는 어디에서 찾을 수 있나요?

이 문서는 EloPOS 시스템에 포함된 E641484: Kit, RJ45 to DB9 케이블에 대한 정보를 나열합니다.

설명

  • 길이: 900mm
  • RJ45 수직 남성 to DB9 수직 남성 (직선 케이블 유형)

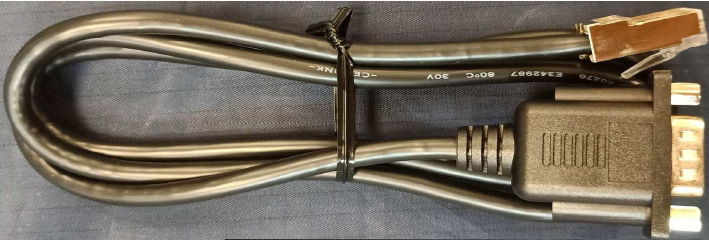

사진

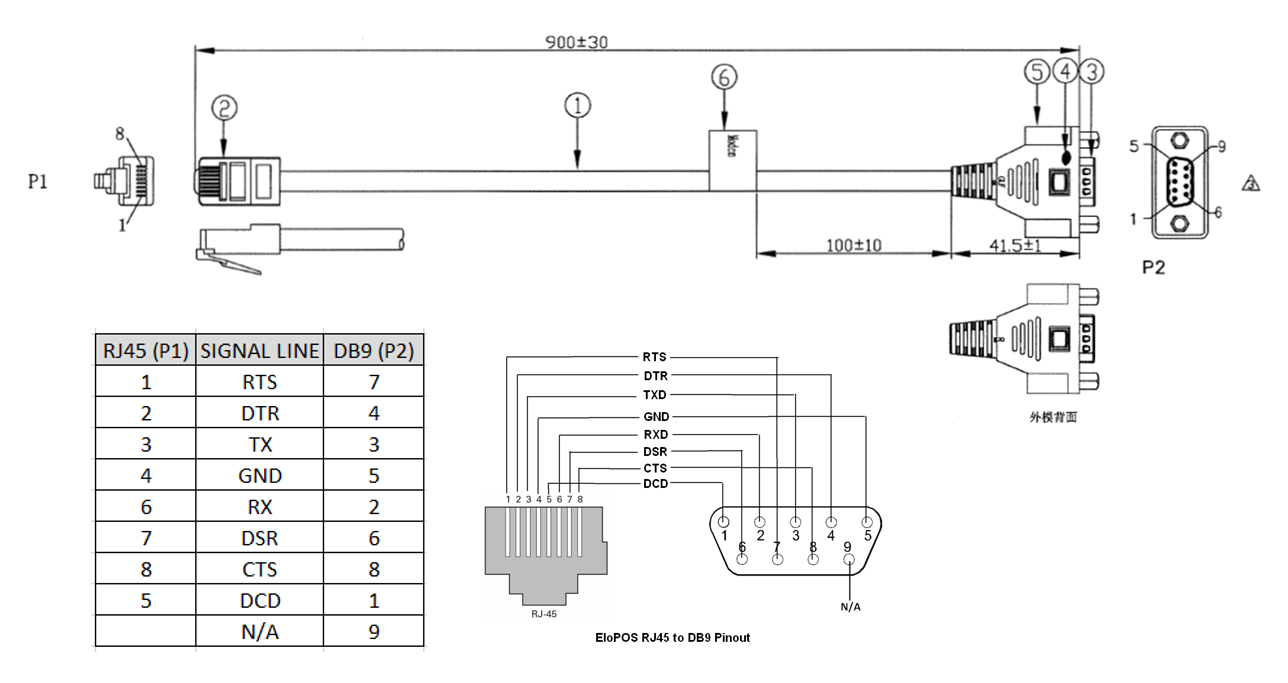

도면 및 핀배치
