Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

Waar vind ik de pinouts en afmetingen van de 2701 RSU IntelliTouch-controller?

Dit artikel biedt de pinouts en afmetingen van de 2701 RSU IntelliTouch Controller

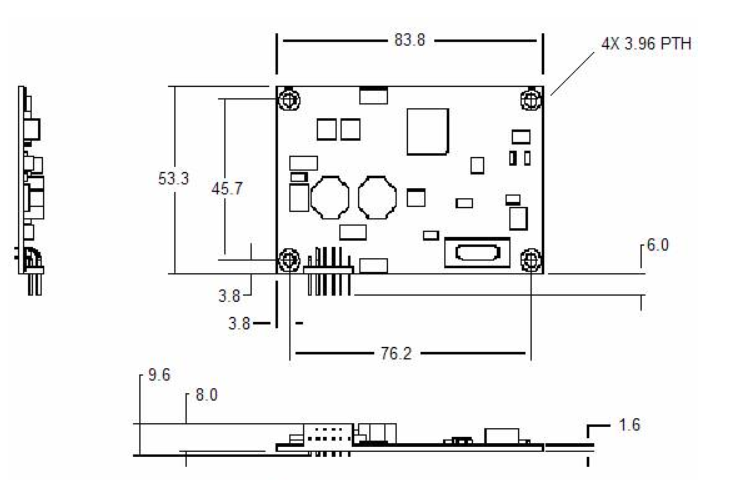

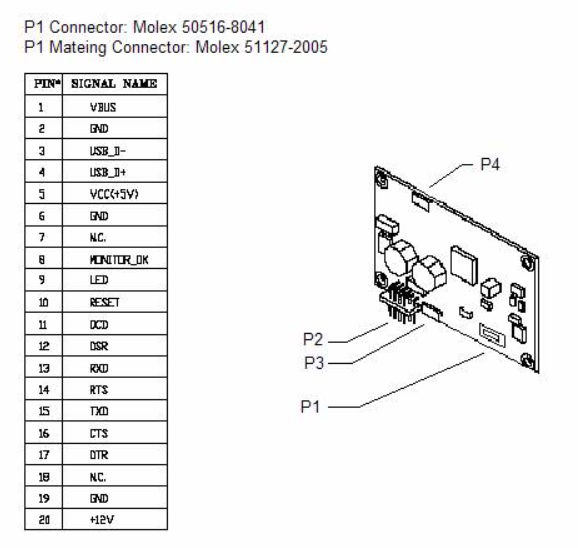

Zie hieronder voor pinouts en afmetingen van de 2701 RSU IntelliTouch Controller.
