Waar kan ik de pinout vinden voor de RJ45 naar DB9 kabel voor de EloPOS eenheden?

Dit artikel beschrijft de pinout voor de RJ45 naar DB9 kabel die in de doos met de EloPOS eenheden komt

Onderdeelomschrijving: 5K.47T20.501: CABLE RJ45-RS232 900MM EA15PA0-1

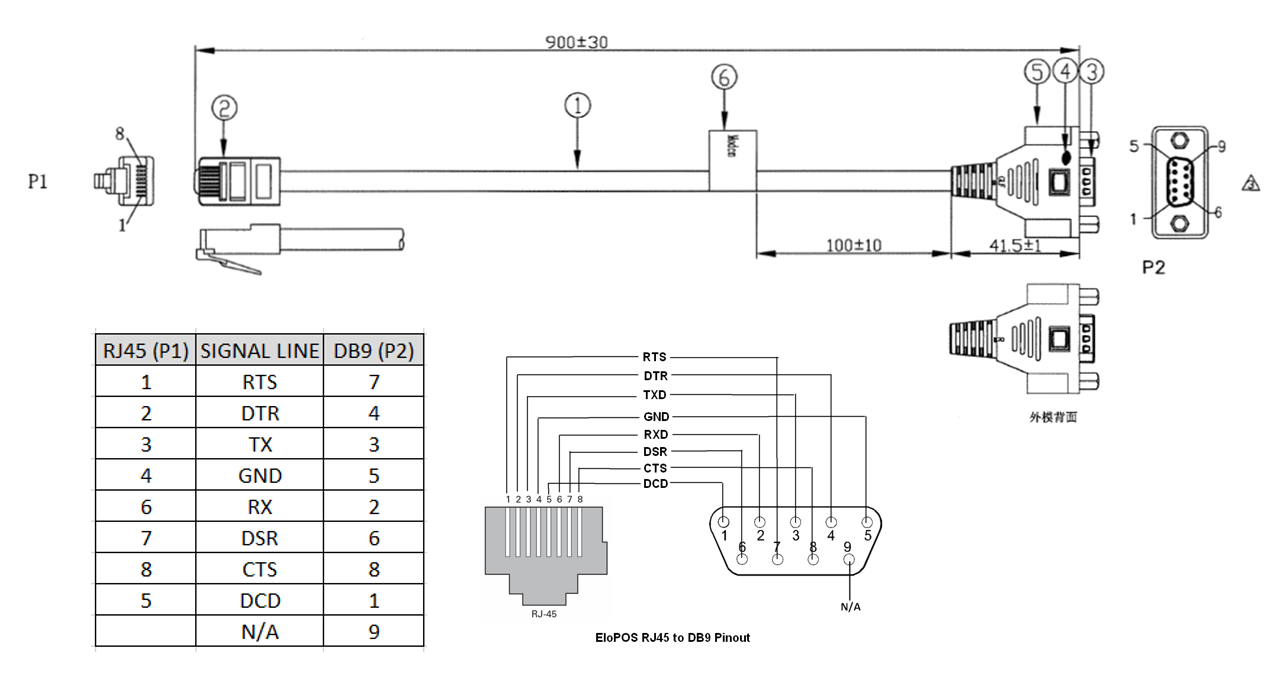

EloPOS RJ45 naar DB9 Pinout

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
