Waar kan ik de pinout vinden voor E196292, X-Series RS232 naar DB9-kabel?

Dit artikel bevat de pinout voor de E196292, X-Series RS232 naar DB9 Kabel



Hieronder staat de tekening en pinouts voor P/N: E196292, X-Series RS232 naar DB9 Kabel.

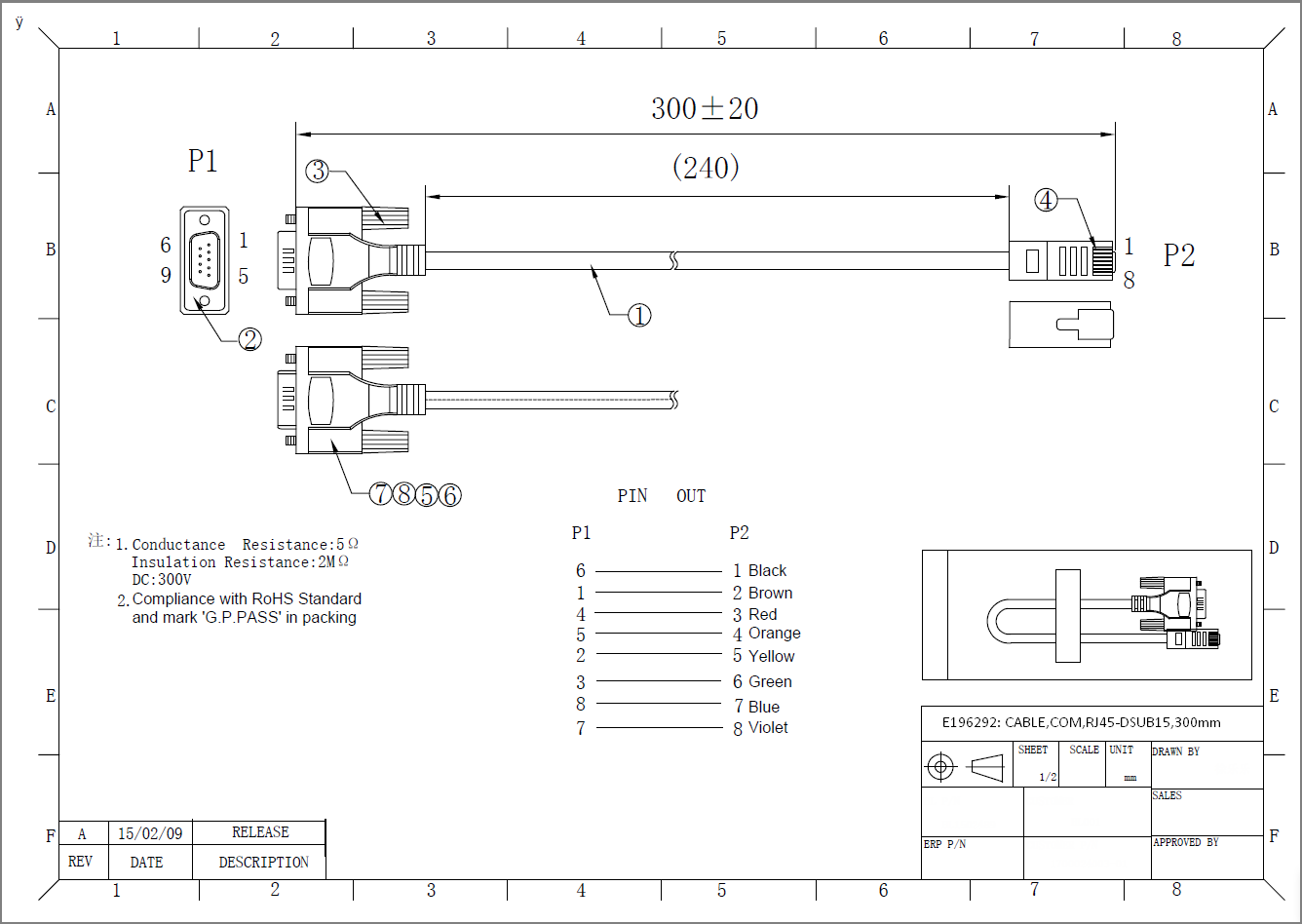

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

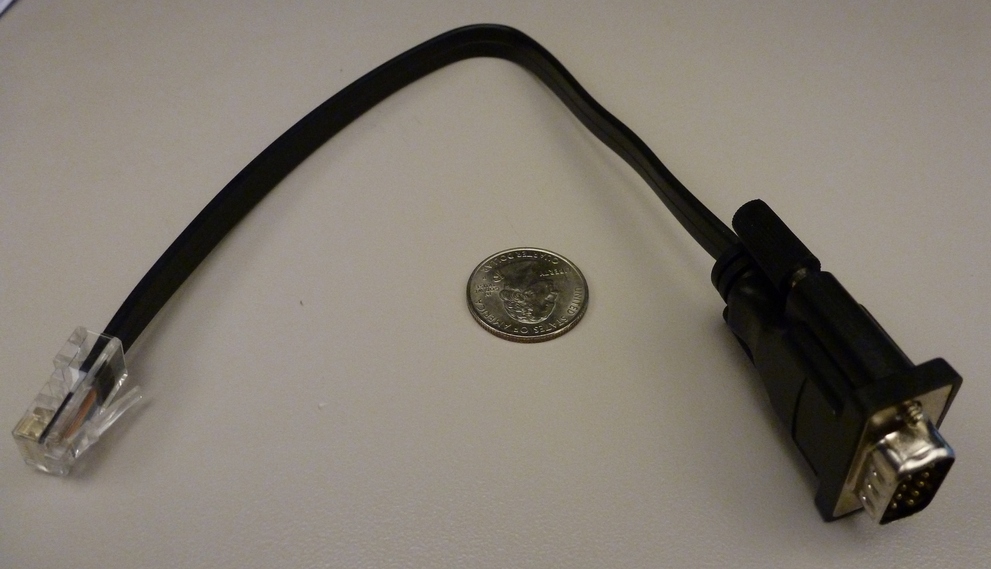

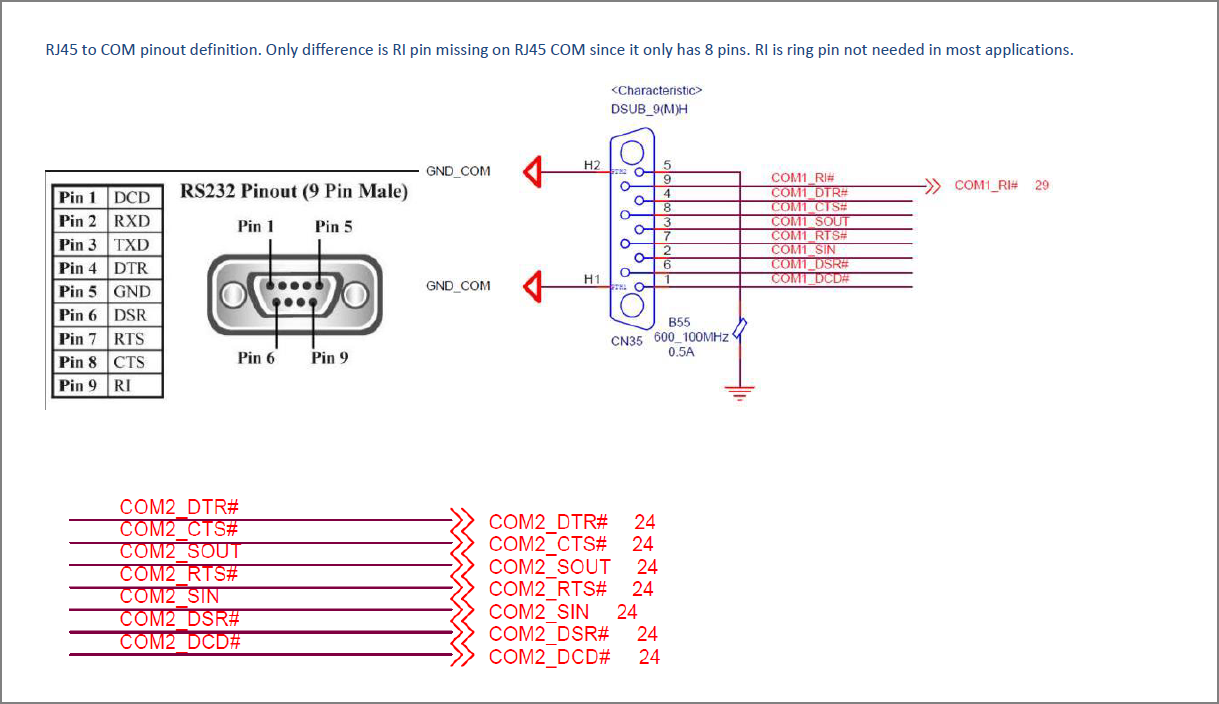

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
