Wat zijn de verschillen tussen de EloPOS DB9 naar RJ45-kabel en de X-Series DB9 naar RJ45-kabel?

Dit artikel bevat informatie over de verschillen tussen de EloPOS DB9 naar RJ45 kabel en de X-Series DB9 naar RJ45 kabel

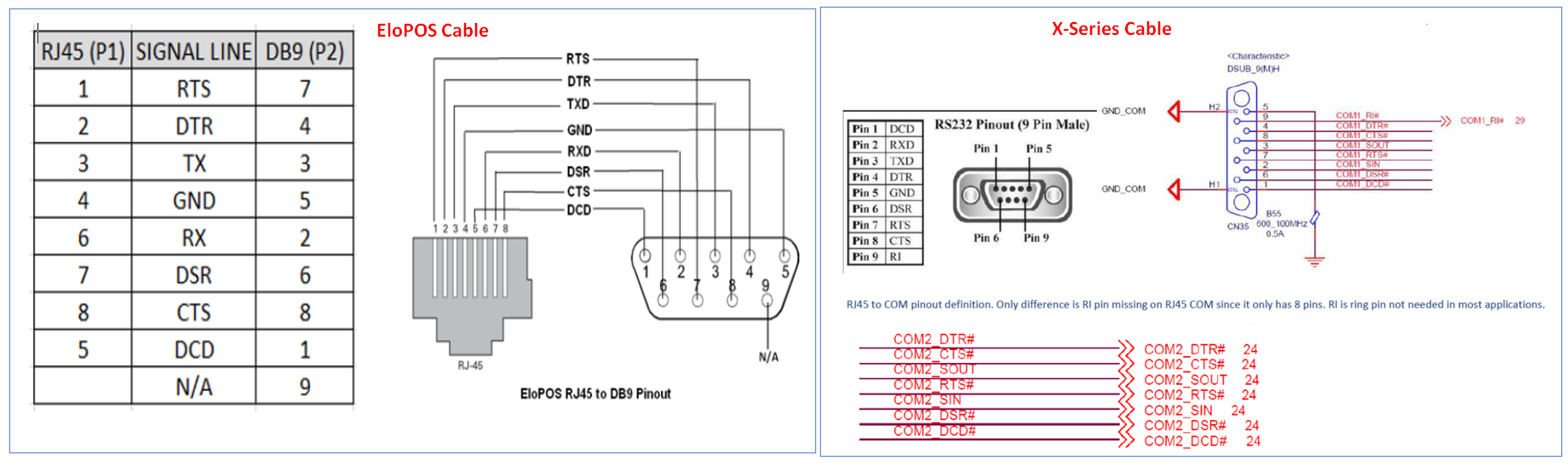

Hieronder staan de verschillen in pinout tussen de EloPOS DB9 naar RJ45 kabel en de X-Series DB9 naar RJ45 kabel. Deze twee kabels zijn NIET uitwisselbaar.

Zie de volledige specificaties voor deze kabels in de onderstaande artikelen:
