Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

Waar kan ik informatie vinden over E075614, USB Y-kabel voor 0700L (Obsolete)?

Dit artikel biedt meer informatie over Elo P/N: E075614, USB Y-kabel voor 0700L-monitor

Hieronder vindt u informatie over Elo P/N: E075614, 8-voet USB Y-kabel voor 0700L-monitor (nu obsoliet)

Onderdeelnummer & Beschrijving

  • E075614: CAB-USB-XT-8.2FT-R
  • CAB-KIT-2.5 Meter Y-kabel voor de 0700L
  • Opmerking: Eindconnector die in de 0700L steekt is Mini-USB

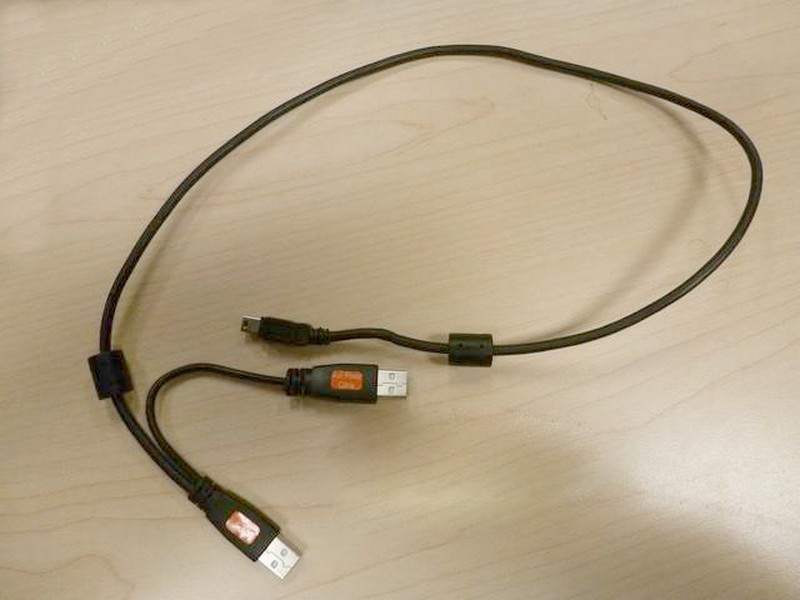

Foto

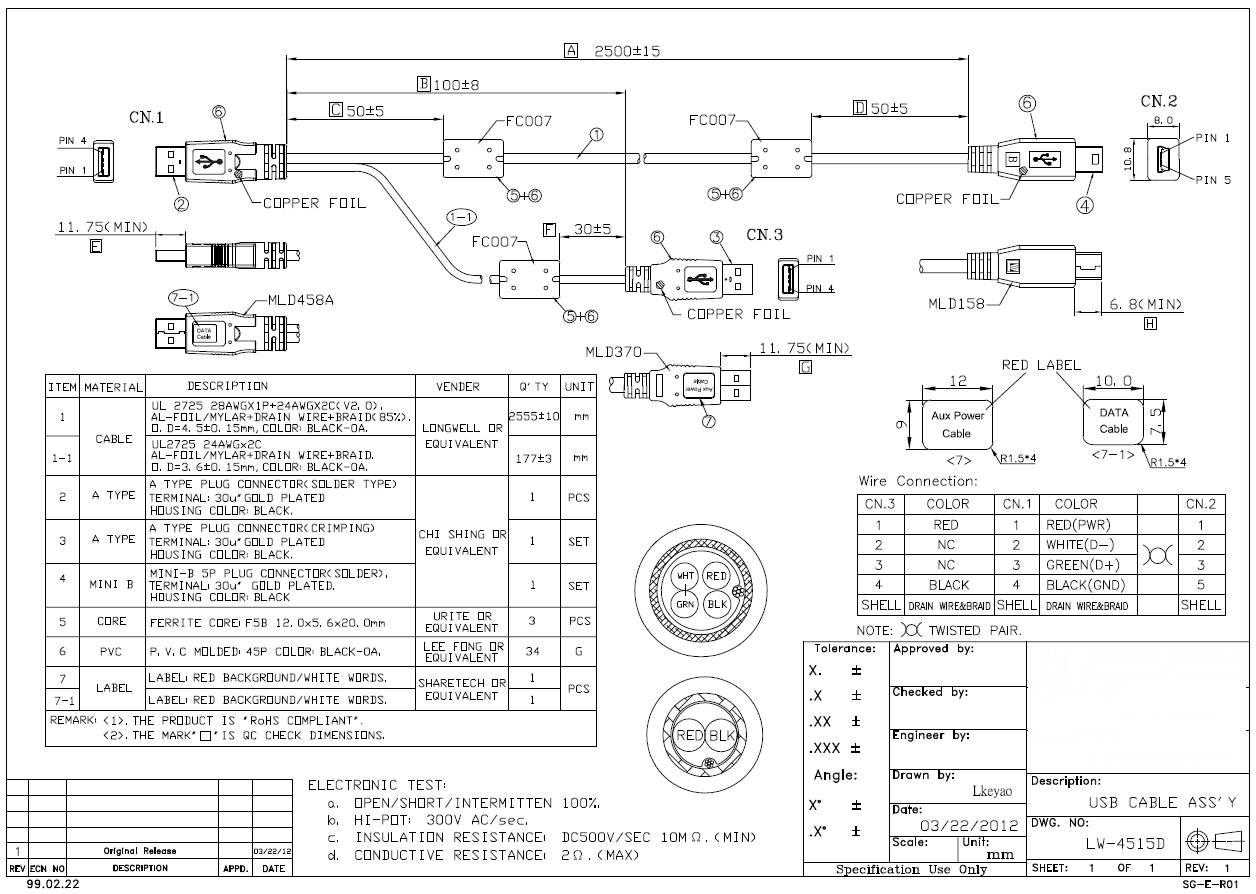

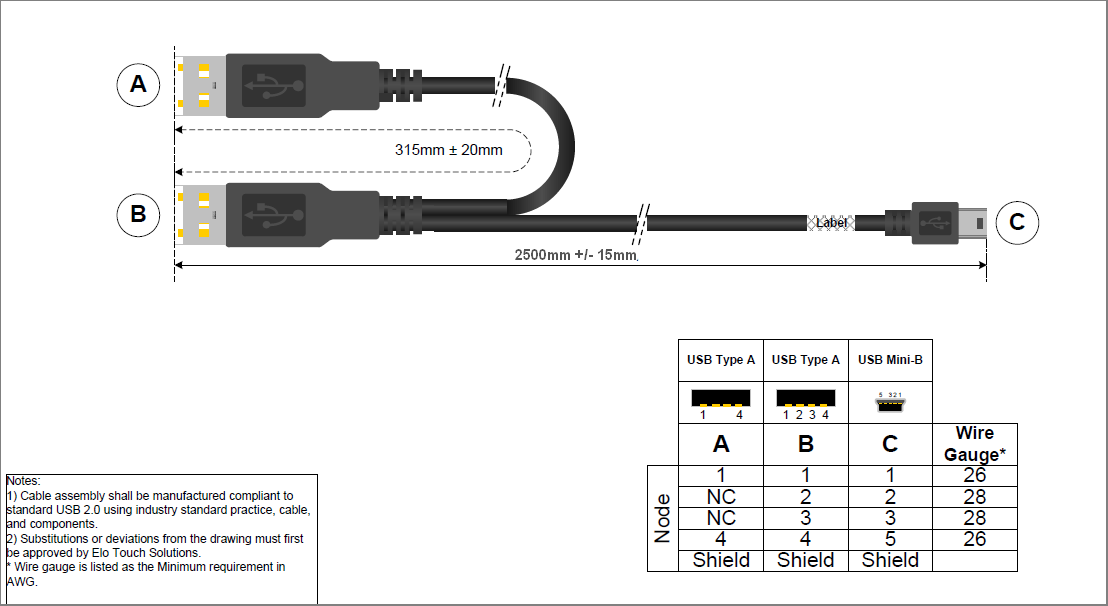

Tekening
