Waar kan ik informatie vinden over P/N: E350807, USB Hub voor de i-Series?

Dit artikel biedt informatie over P/N: E350807, USB Hub voor de i-Series?

Zie onderstaande informatie en documentatie voor de i-Series 2.0 USB Hub Kit, E350807

Specificaties van de USB Hub zijn:

  • P/N: E350807

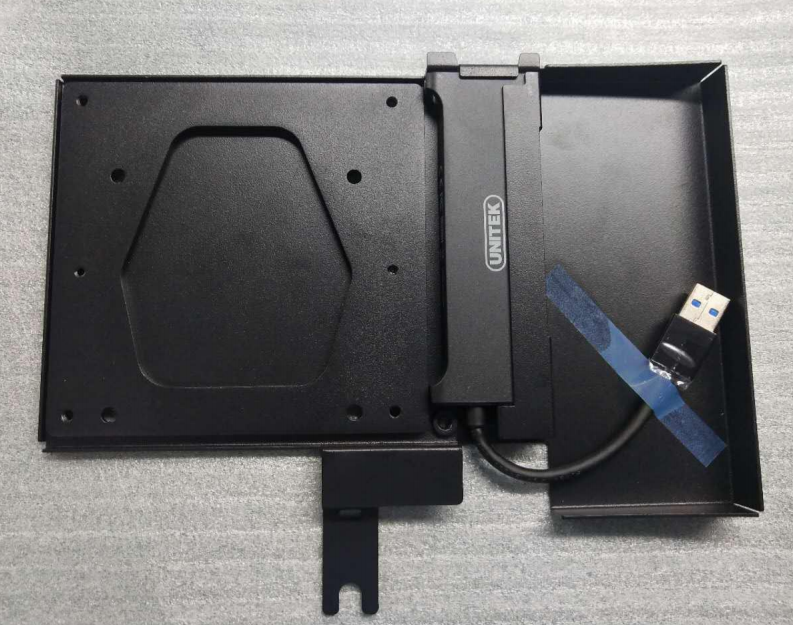

  • Beschrijving: Kit, USB Hub & beugel, i-Series 2.0
  • Snelinstallatiegids: QIG600099 (bijgevoegd bij dit artikel)

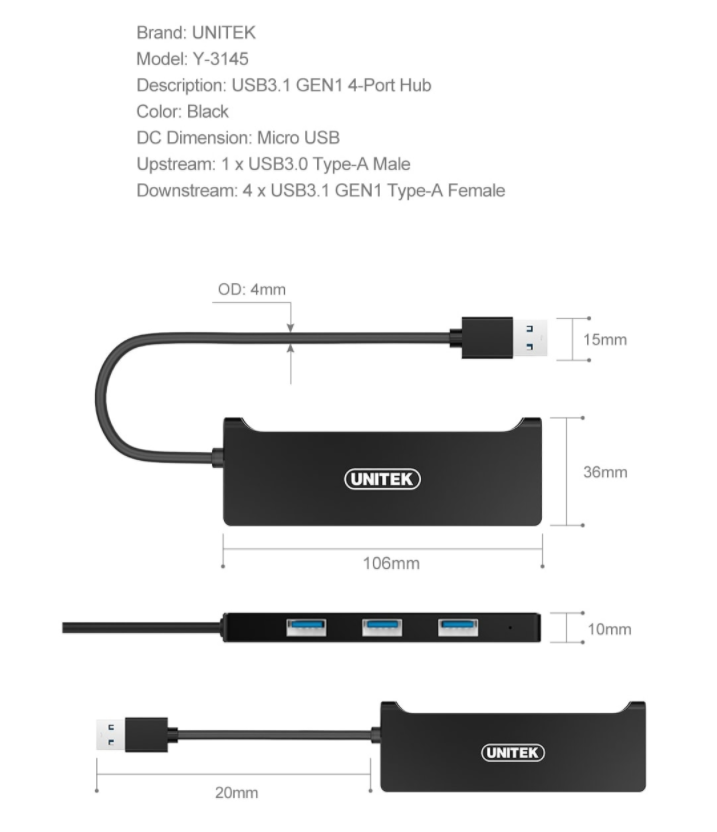

  • Tekening: SD610048 (bijgevoegd bij dit artikel)

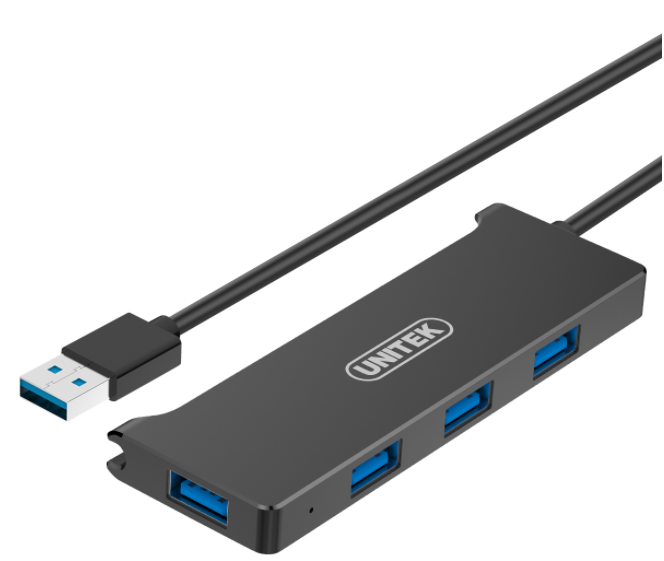

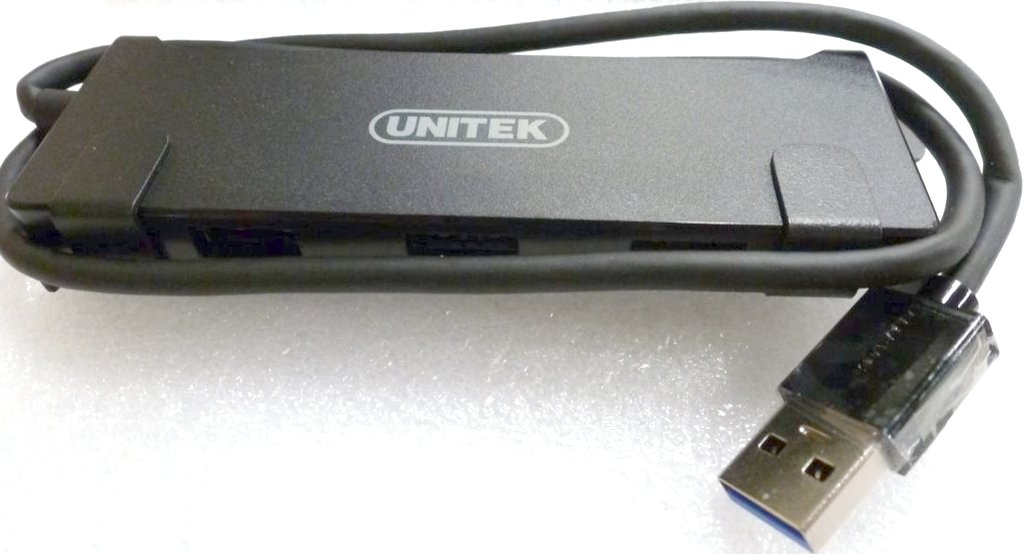

  • UNITEK Y-3145, USB 3.1 Gen.1 4-Poorts Hub, Zwart
  • Upstream: 1 x USB 3.0 Type-A Male
  • Downstream: 4 x USB 3.1 Gen1 Type-A Female
