Waar kan ik de afmetingen of tekening van de X-Series standaard vinden, P/N: E154446?

Dit artikel biedt de dimensionale tekening van de X-Series standaard, P/N: E154446

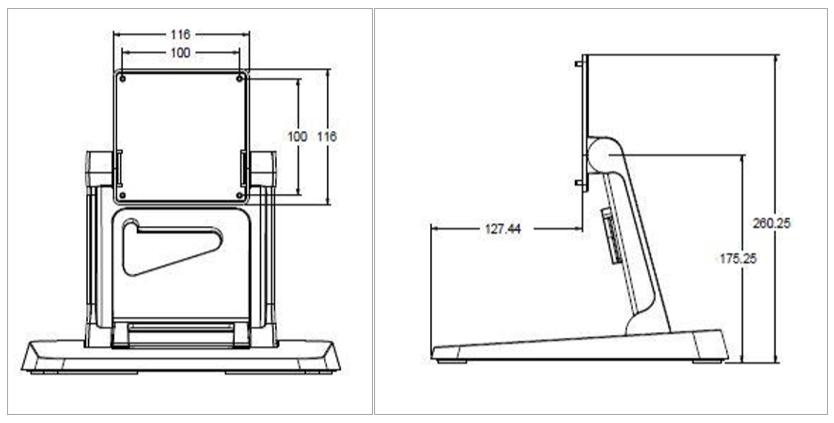

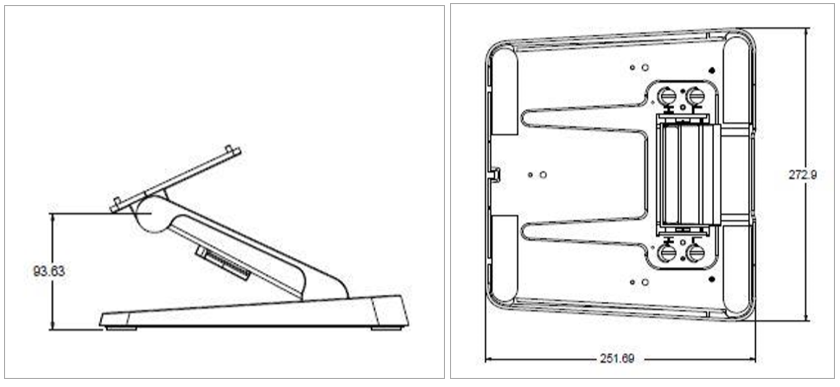

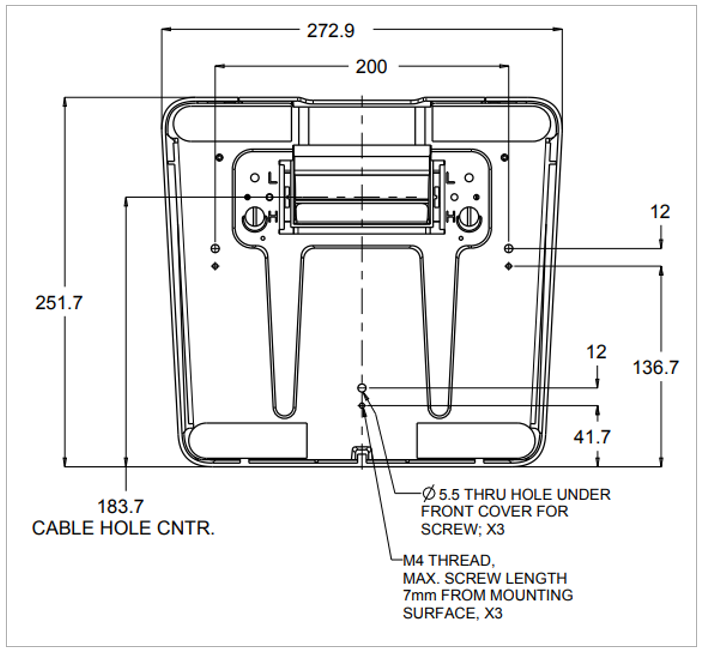

Zie hieronder voor de dimensionale tekening van de X-Series standaard, Onderdelennummer: E154446
