Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

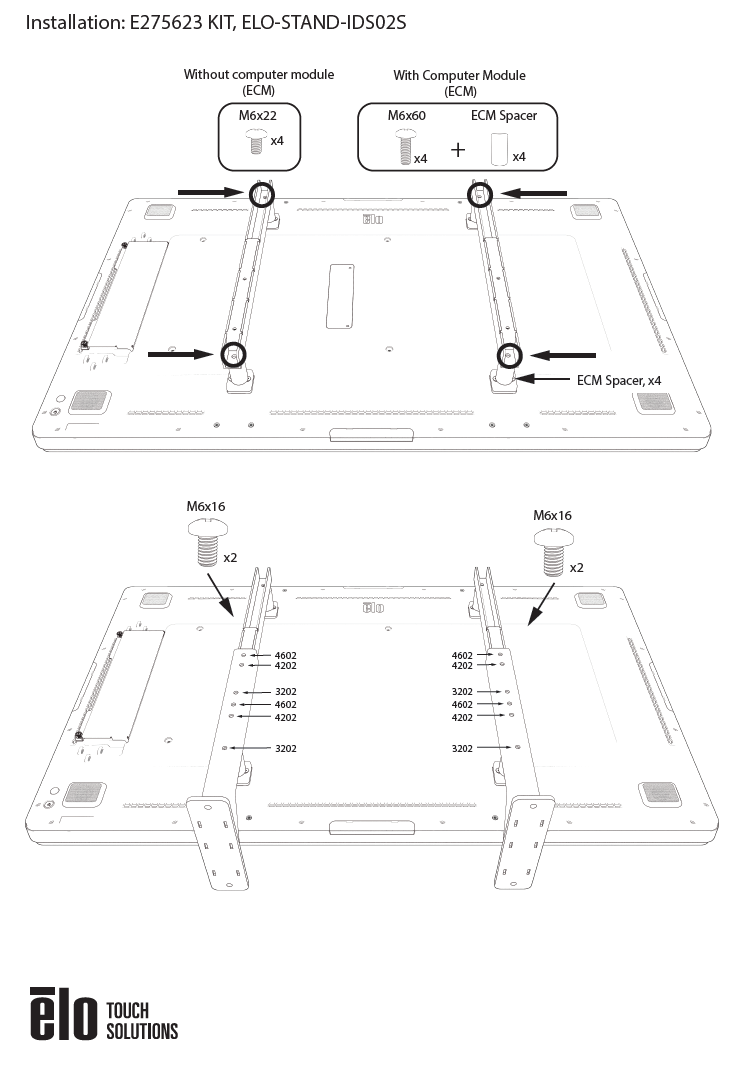

Waar kan ik specificaties en foto's vinden van de E275623 Stand voor IDS 02 Series?

Dit artikel biedt specificaties en foto's van de E275623 Stand voor IDS 02 Series

Zie hieronder specificaties en foto's van de E275623 Stand voor IDS 02 Series monitoren.

Inhoud van de set:

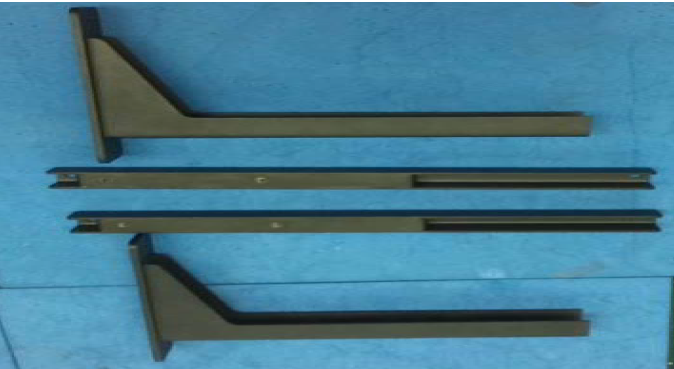

  • 2x IDS3_STAND_MNT
  • 2x IDS3_STAND_LEG

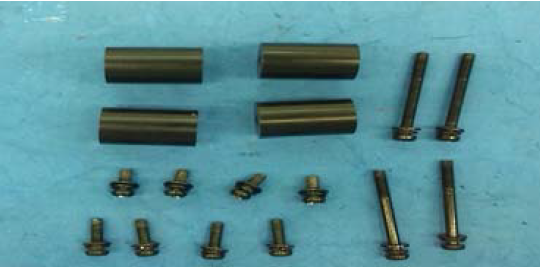

  • 4x M6 x 22mm Philips schroeven
  • 4x M6 x 16mm Philips schroeven
  • 4x M6 x 60mm Philips schroeven
  • 4x VESA SPACER 39MM lang

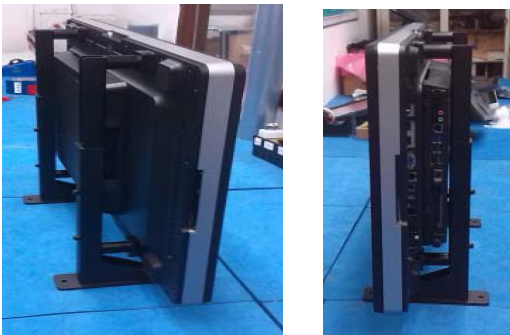

Foto's:
