Waar kan ik een dimensionale tekening vinden voor de 1e generatie 2D barcode scanner (E926356)?

Dit artikel biedt een dimensionale tekening van de 2D Barcode Scanner, Onderdelenummer: E926356

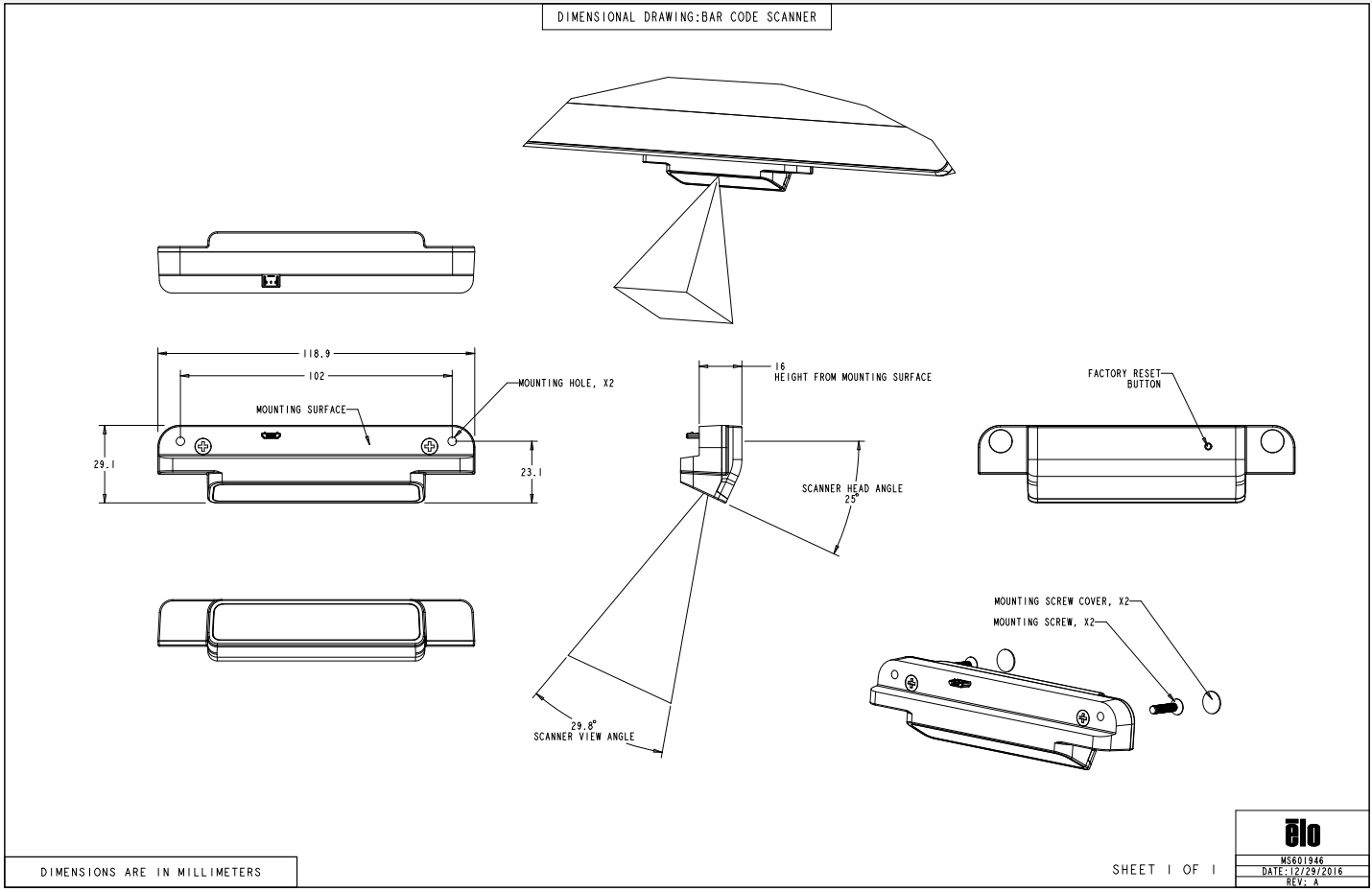

Zie de onderstaande tekening van de 2D Barcode Scanner, Onderdelenummer: E926356

De onderstaande tekening kan ook worden gedownload HIER
