Waar kan ik informatie vinden over E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M?

Dit artikel biedt informatie over E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

De onderstaande informatie betreft Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

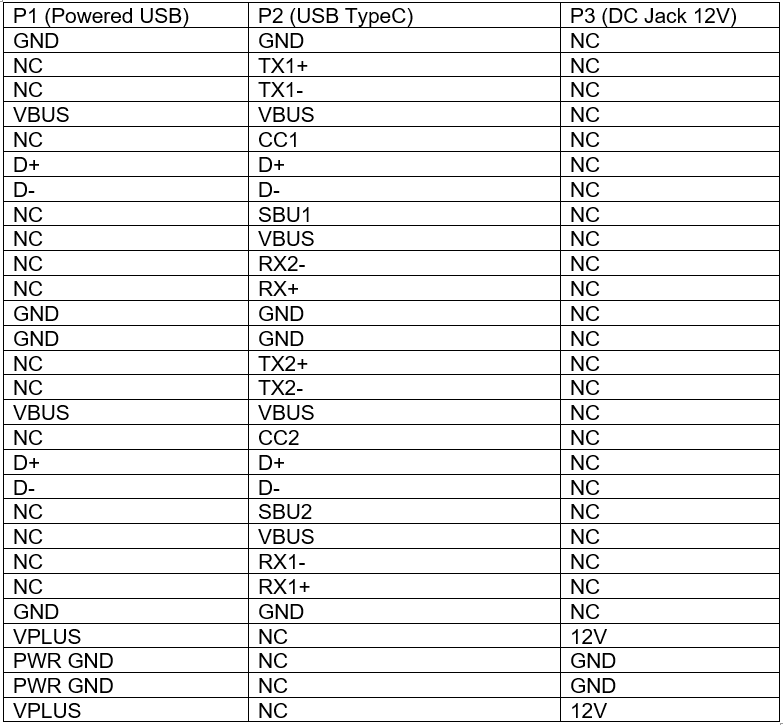

Specificaties:

  • De Power-via-USB voor TypeC kabel dient drie soorten stekkers op de kabel te bevatten.
    • Één (P1) zijde moet een standaard Powered USB mannelijke stekker zijn
    • De andere zijde moet USB TypeC (P2) en DC jack 12V (P3) zijn
    • De kabel moet 3,0 m lang zijn, zwart

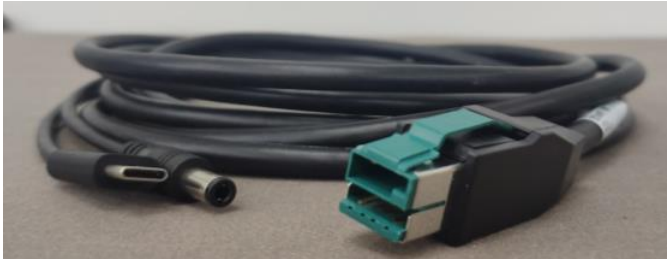

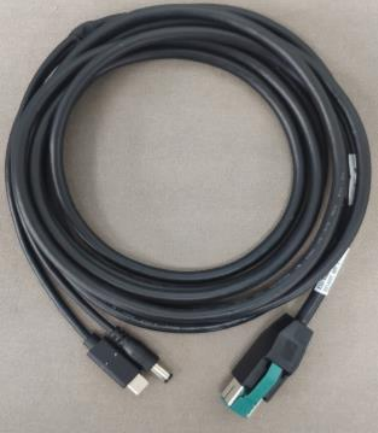

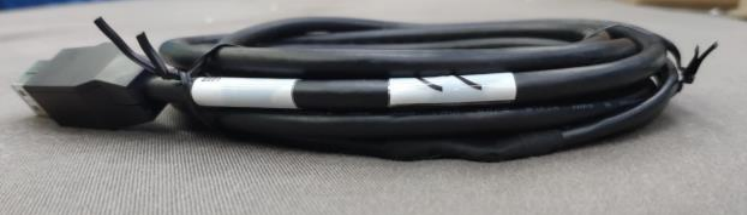

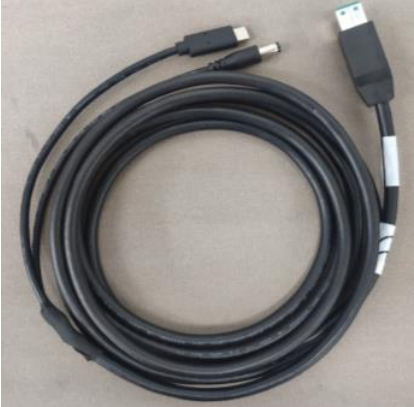

Foto's
