Waar kan ik informatie vinden over de E462672 Elo 2293L-2294L rackmount bezel kit?

Dit artikel biedt informatie over E462672 Elo 2293L-2294L Rack mount Bezel

E462672 Elo 2293L-2294L Rack mount Bezel, alleen geschikt voor de intelliTouch, SecureTouch, AccuTouch versies van de producten. Deze beugel vereist 12U Rackruimte.

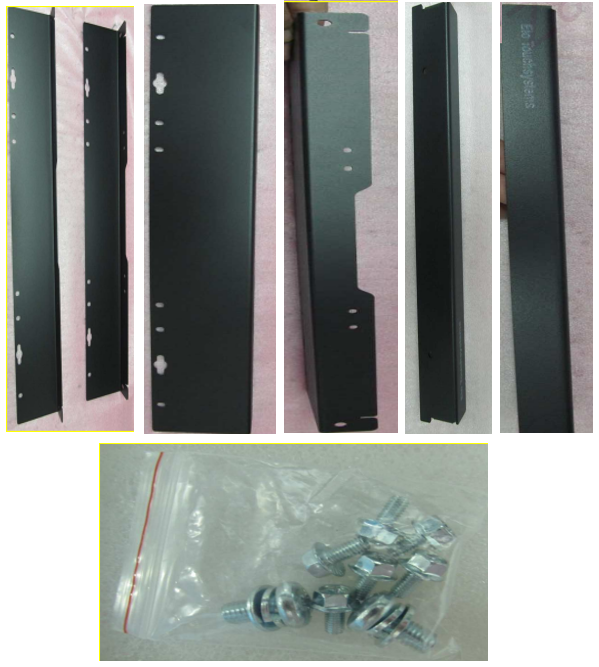

Inhoud van het kit:

  • 1x BEUGEL, ONDERSTE RACK MONTAGE
  • 2x BEUGEL, ZIJ, RACK MONTAGE
  • 4x SCHROEF, PHIL, PNHD W/CAPT WHRS, M6X12L-R
  • 4x SCHROEF, HXHD, PHIL, GETAND, M4X

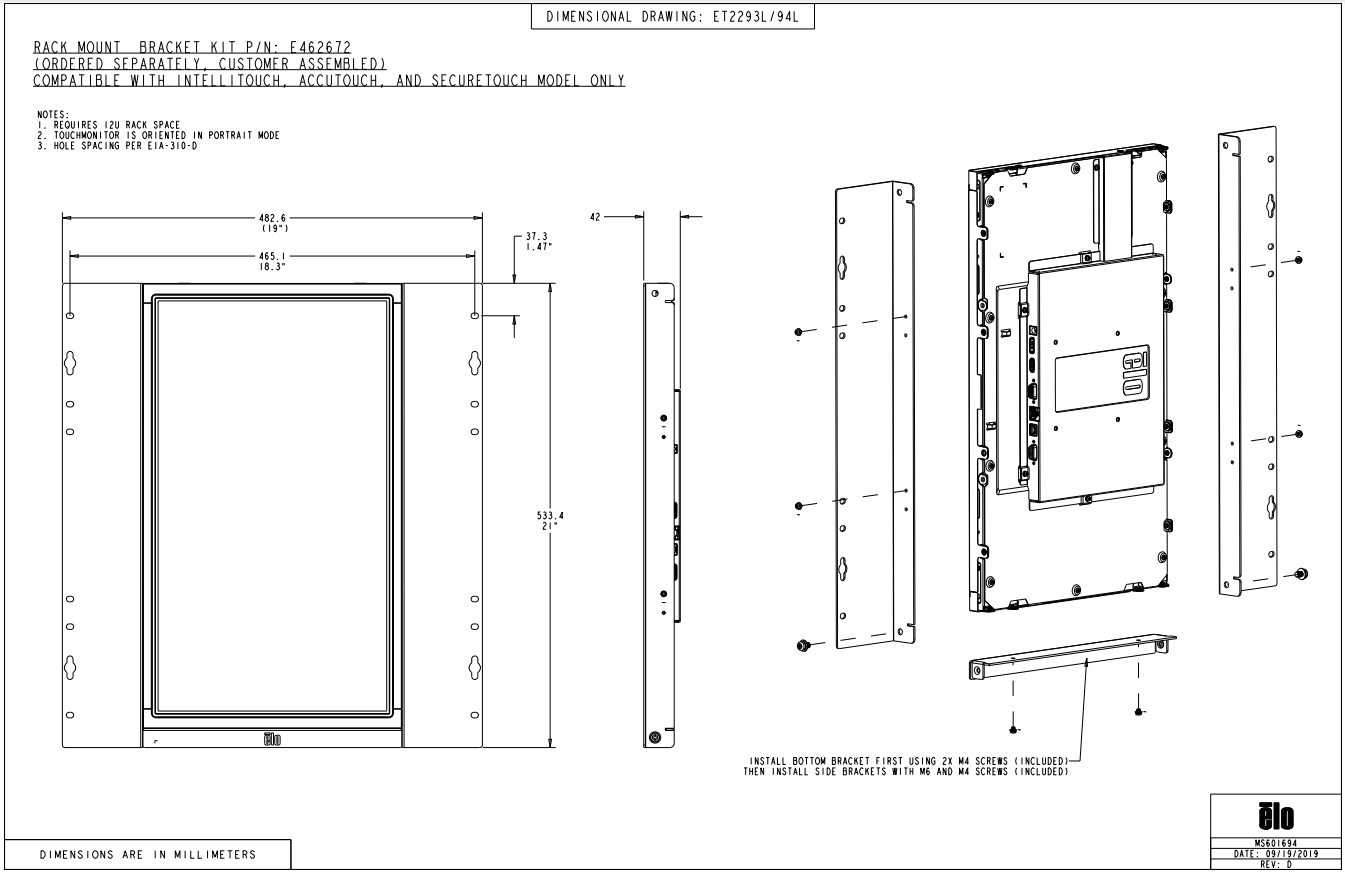

Tekening en Montage
