Waar kan ik informatie vinden over E763022 en E752302, 12V voeding USB Y-kabels?

Dit artikel biedt informatie over de 12V aangedreven USB-kabels die momenteel worden verkocht voor de Elo 1002L en 1502L touchmonitoren.

Artikelnummer en Beschrijvingen:

  • E763022: Kabel, USB 12V Pwd, 3M, 12V aangedreven USB Y-kabel 3m
  • E752302: Kabel, pUSB 12V 2.5mm 1.8m, Elo 12V aangedreven USB Y-kabel 1.8m

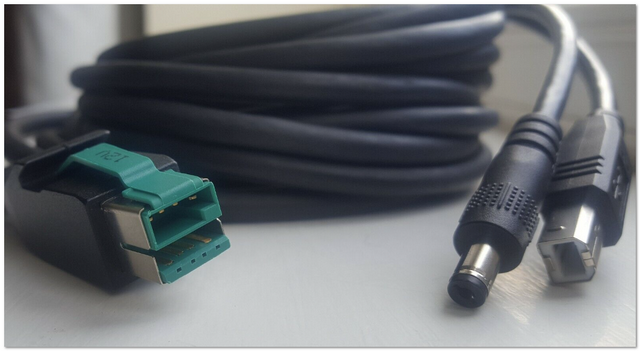

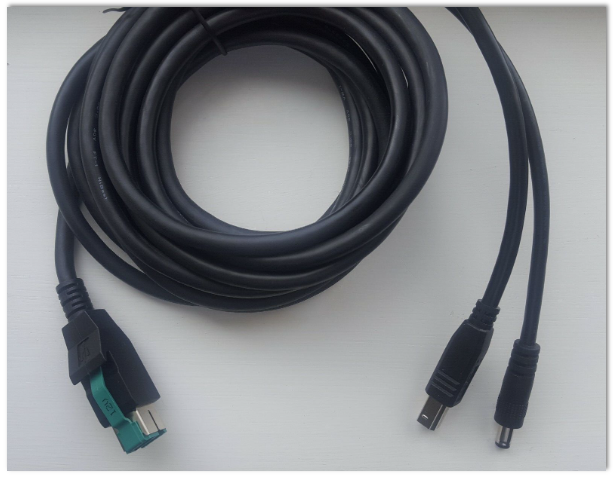

Foto's (3m kabel weergegeven. De 1.8m is identiek behalve voor de kabel lengte).

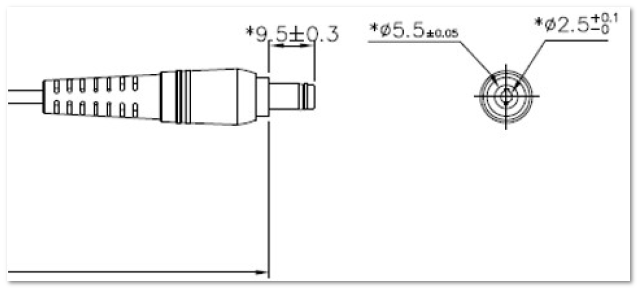

Pinout van 5.5mm x 2.5mm barrelconnector voor 12V DC-uitgang
