Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

Waar kan ik informatie vinden over E641484: Kit, RJ45 naar DB9-kabel, EloPOS?

Dit artikel bevat informatie voor de E641484: Kit, RJ45 naar DB9-kabels die zijn inbegrepen bij de EloPOS-systemen

Beschrijving

  • Lengte: 900mm
  • RJ45 verticale male naar DB9 verticale male (Rechtdoor kabeltype)

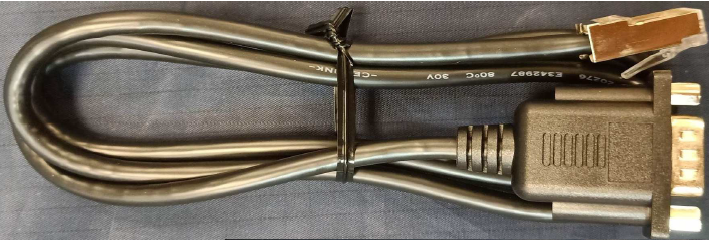

Foto

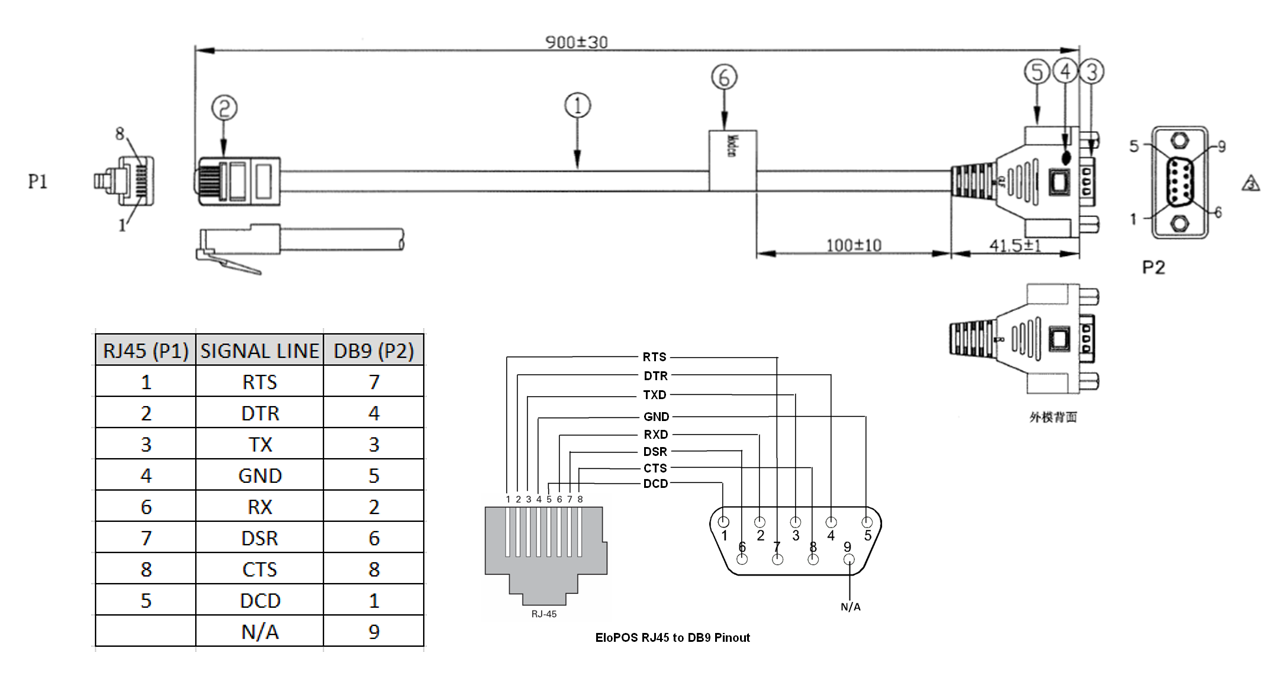

Tekening en pinout



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
