Gdzie mogę znaleźć pinout dla kabla RJ45 do DB9 dla jednostek EloPOS?

Ten artykuł opisuje rozmieszczenie pinów dla kabla RJ45 do DB9, który znajduje się w pudełku z jednostkami EloPOS

Opis części: 5K.47T20.501: KABEL RJ45-RS232 900MM EA15PA0-1

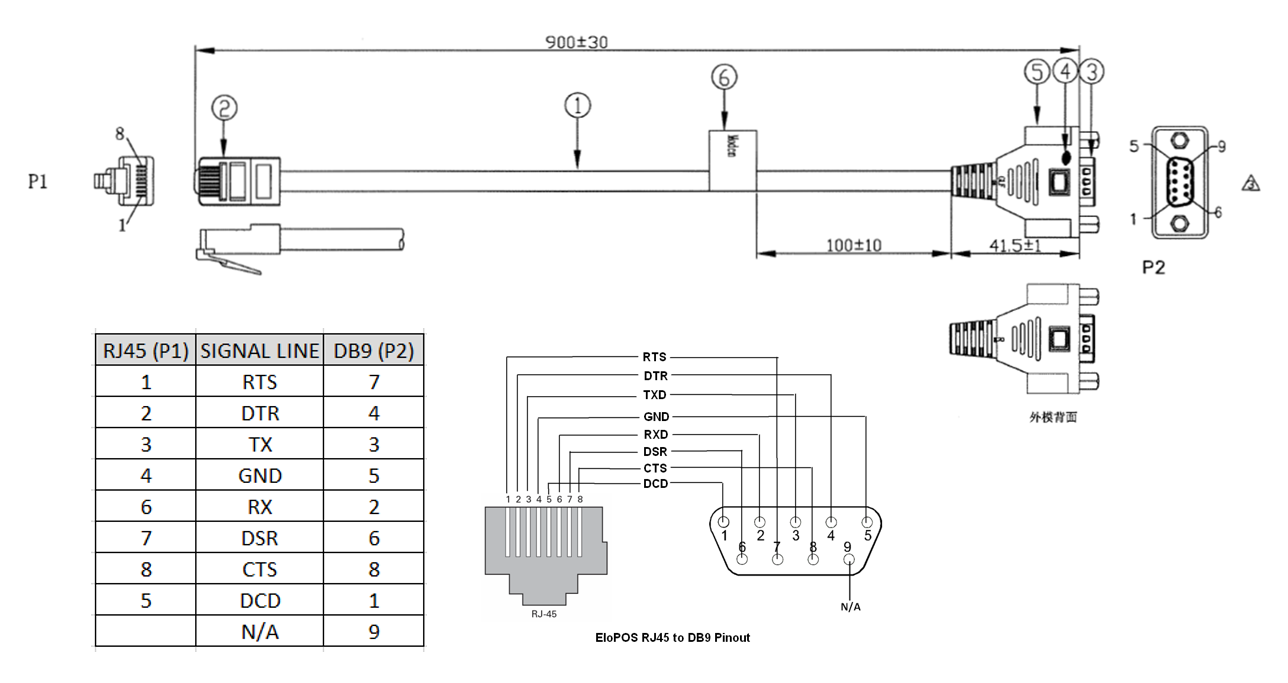

Rozmieszczenie pinów RJ45 do DB9 dla EloPOS

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
