Gdzie mogę znaleźć pinout złącza LVDS w modułach wyświetlaczy Elo?

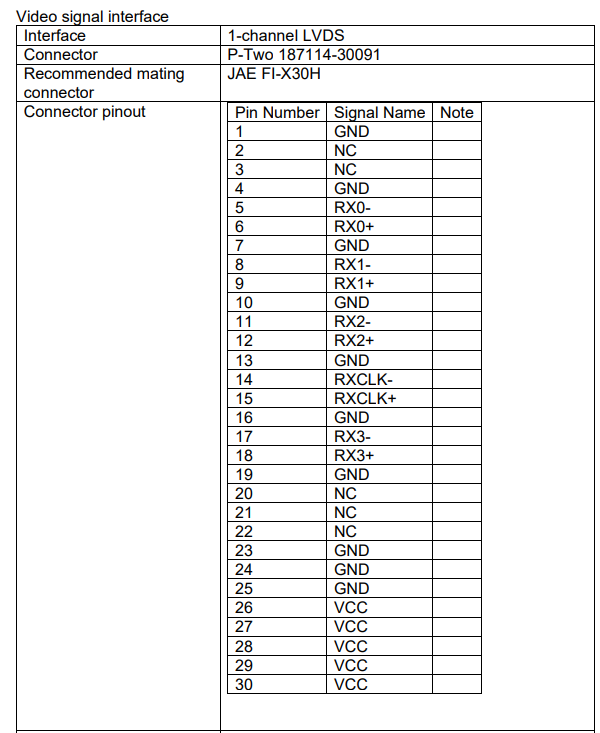

Artykuł ten pokazuje pinout złącza LVDS w module wyświetlacza Elo o przekątnej 15,6 cala, P/N:E270963
