Gdzie mogę znaleźć pinout dla E196292, kabla X-Series RS232 do DB9?

Artykuł ten zawiera pinout dla E196292, kabli RS232 do DB9 X-Series



Poniżej znajduje się rysunek i pinout dla P/N: E196292, kabla RS232 do DB9 X-Series.

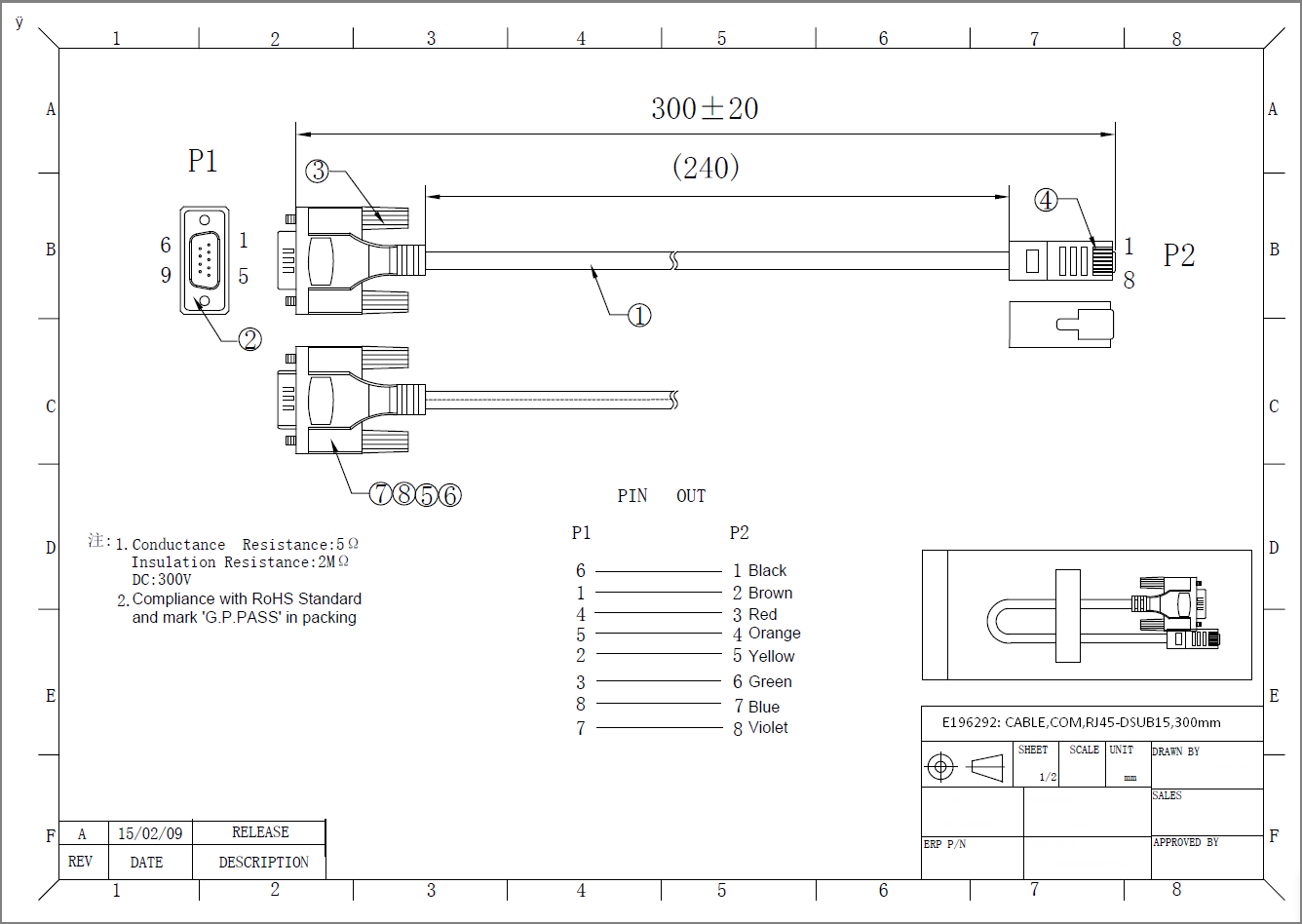

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

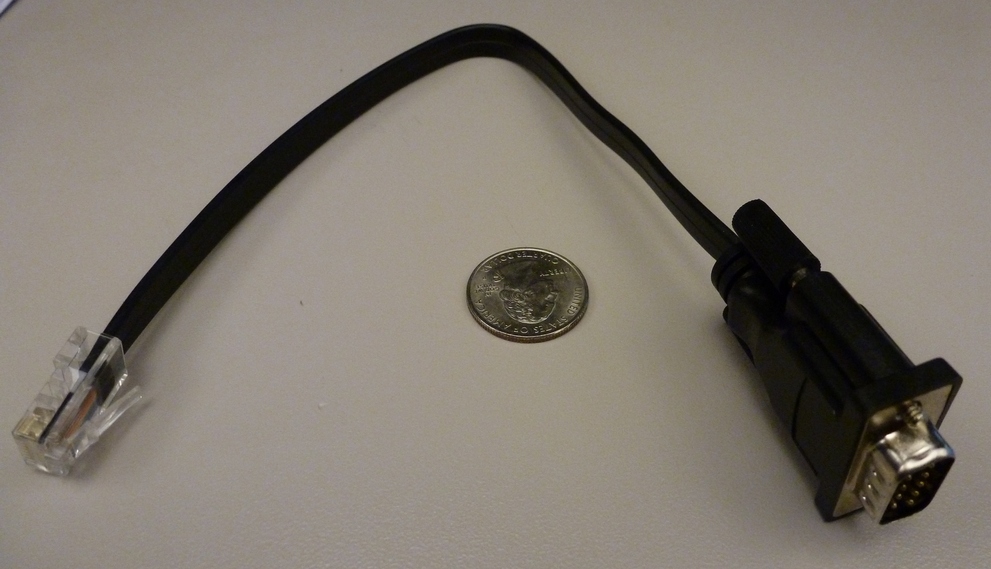

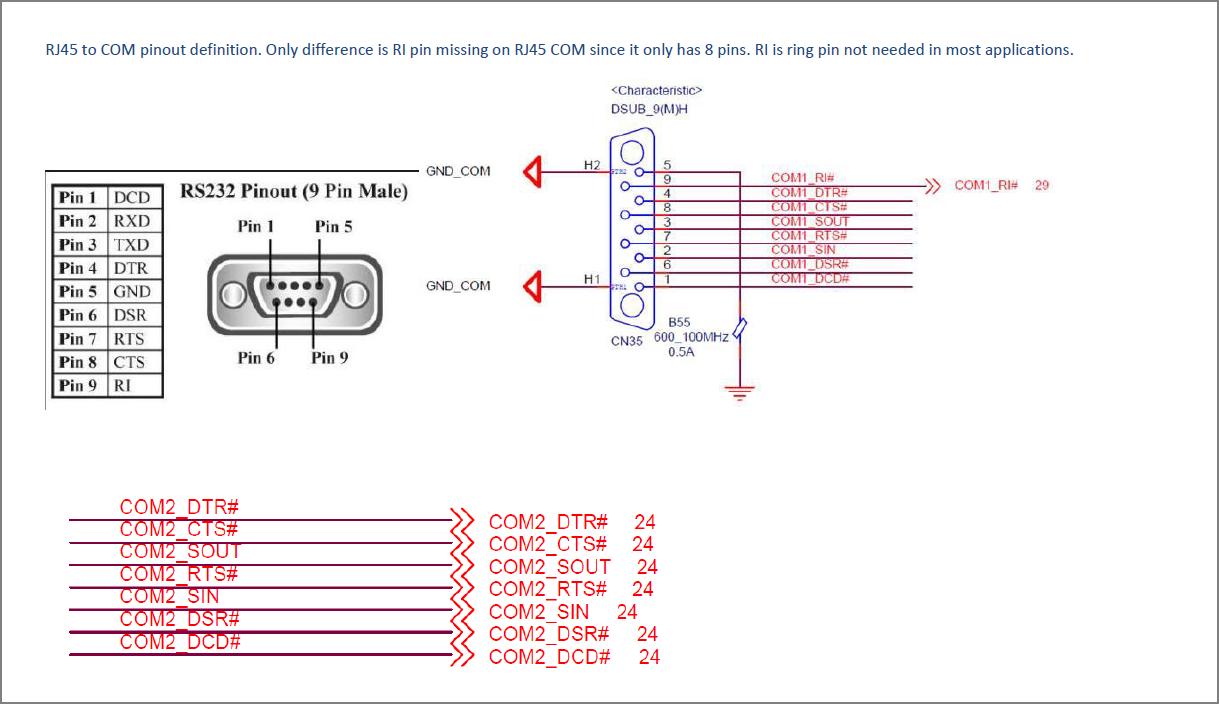

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
