Witamy w Dziale Wsparcia Elo

Sterowniki, informacje o produktach, odpowiedzi techniczne i nie tylko.

Jakie są różnice między kablem EloPOS DB9 do RJ45 a kablem X-Series DB9 do RJ45?

Artykuł ten zawiera informacje dotyczące różnic między kablem EloPOS DB9 do RJ45 a kablem X-Series DB9 do RJ45

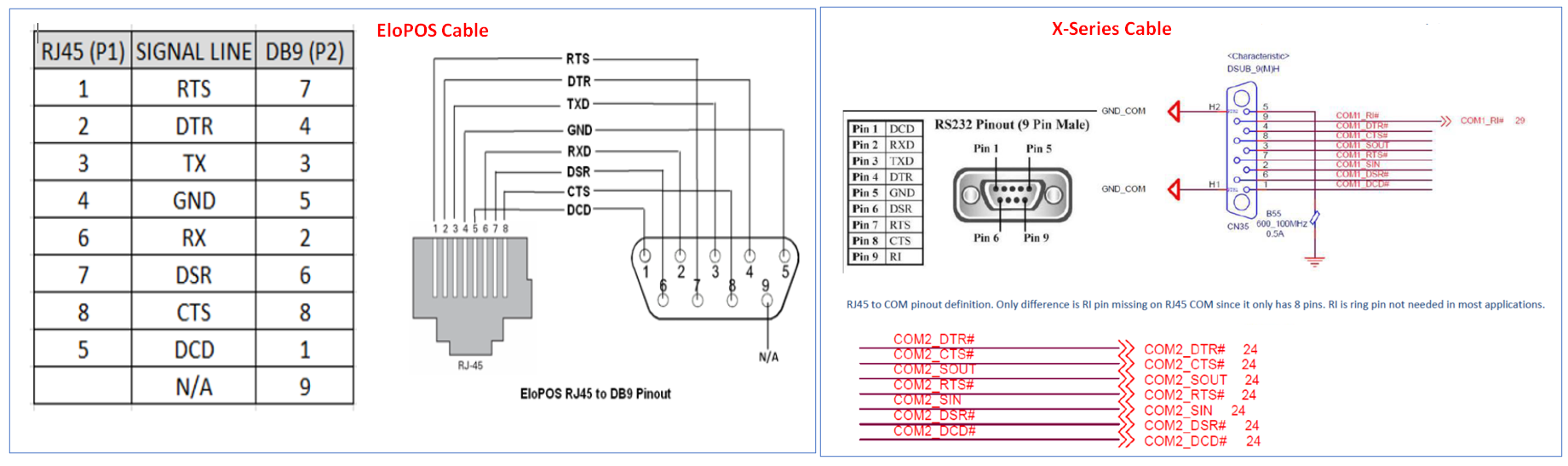

Poniżej przedstawiono różnice w pinout między kablem EloPOS DB9 do RJ45 a kablem X-Series DB9 do RJ45. Te dwa kable NIE są wymienne.

Zobacz pełne specyfikacje tych kabli w poniższych artykułach:




Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
