Gdzie mogę znaleźć informacje o E462672 Elo 2293L-2294L zestaw mocowania do szafy?

Ten artykuł zawiera informacje o E462672 Elo 2293L-2294L Bezel do montażu w szafie

E462672 Elo 2293L-2294L Bezel do montażu w szafie, odpowiedni tylko dla wersji intelliTouch, SecureTouch, AccuTouch produktów. Ten uchwyt wymaga 12U miejsca w szafie.

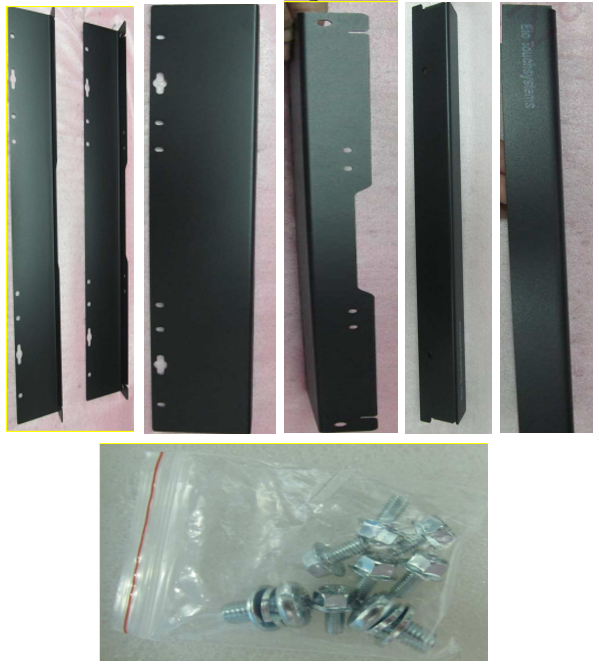

Zawartość zestawu:

  • 1x UCHWYT, DOLNY MONTAŻ DO SZAFY
  • 2x UCHWYT, BOCZNY, MONTAŻ DO SZAFY
  • 4x ŚRUBA, PHIL, PNHD Z CAPT WHRS, M6X12L-R
  • 4x ŚRUBA, HXHD, PHIL, ZĄBKOWANA, M4X

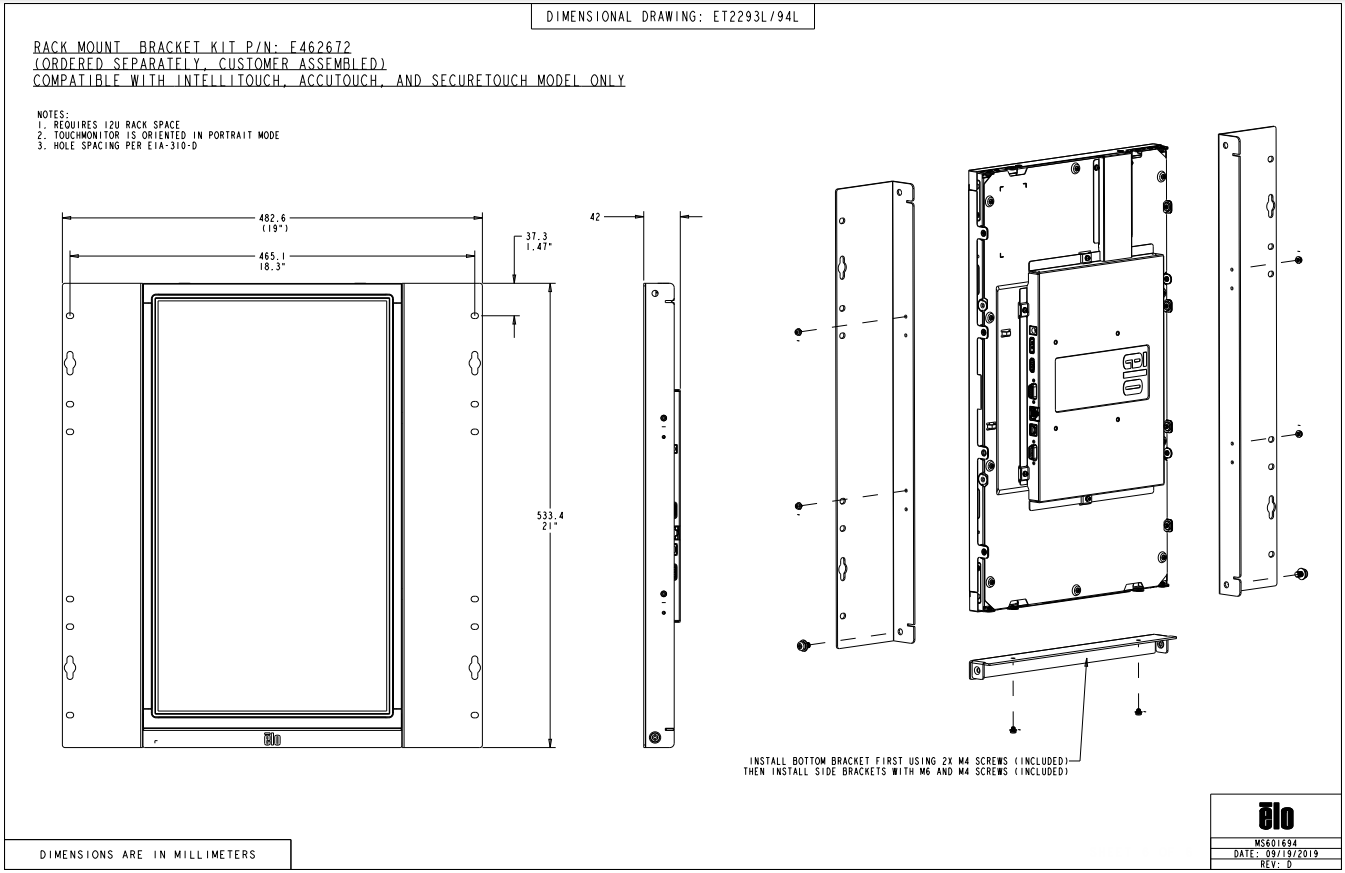

Rysunek i montaż
