Gdzie mogę znaleźć informacje o E641484: Zestaw, kabel RJ45 do DB9, EloPOS?

Artykuł ten zawiera informacje dotyczące E641484: Zestaw kabli RJ45 do DB9, które są dołączone do systemów EloPOS

Opis

  • Długość: 900mm
  • RJ45 męski pionowy do DB9 męski pionowy (Typ kabla prostego)

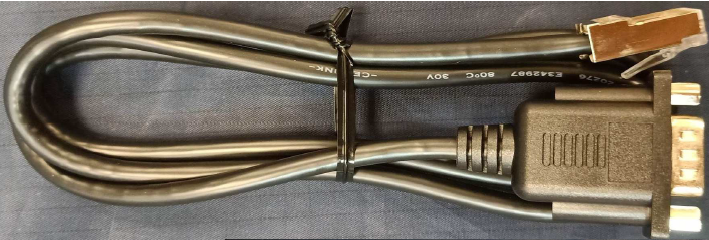

Zdjęcie

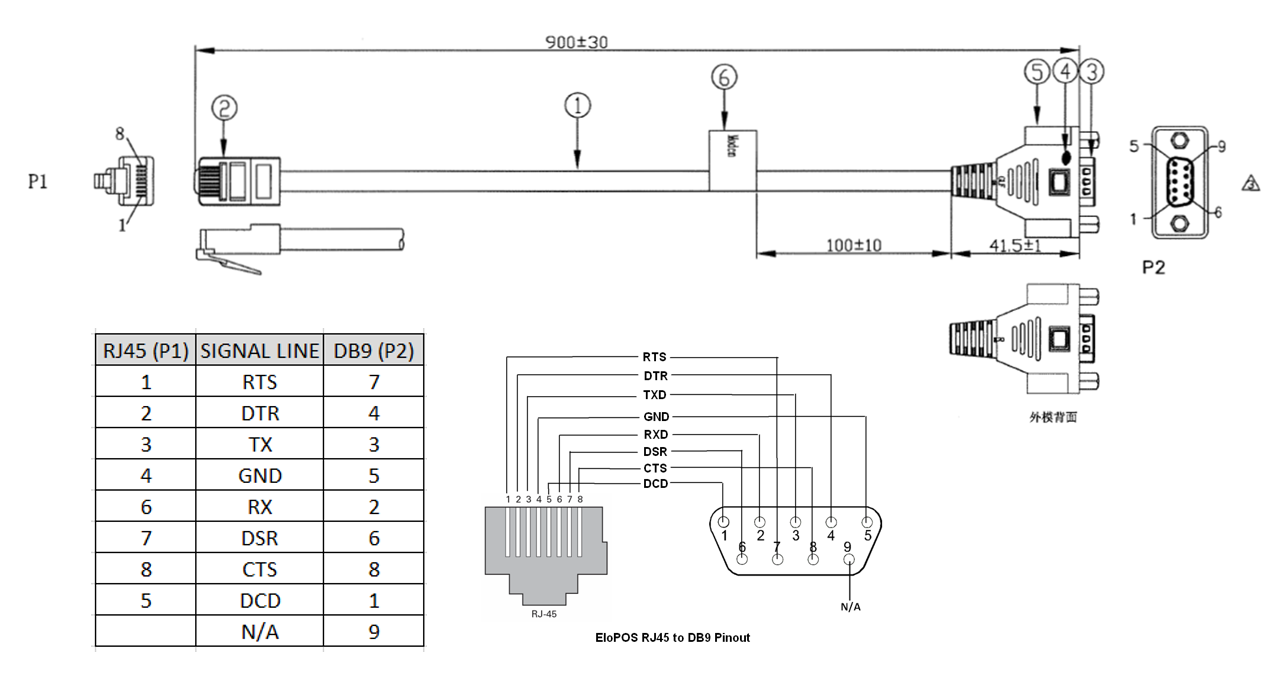

Rysunek i rozkład pinów
