Onde posso encontrar os pinouts e as dimensões do Controlador IntelliTouch 2701 RSU?

Este artigo fornece os pinouts e dimensões do Controlador 2701 RSU IntelliTouch

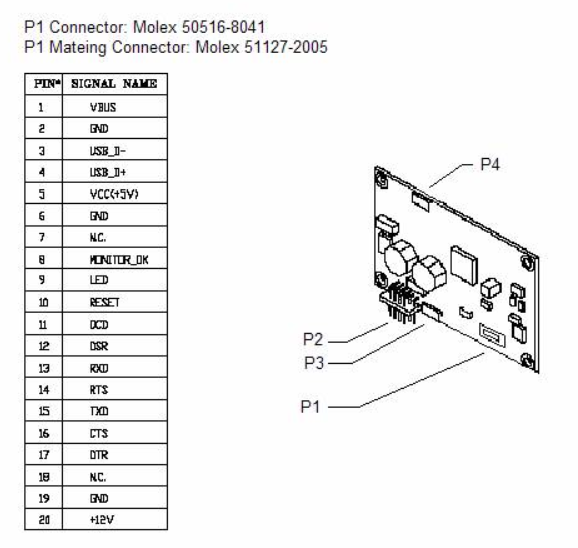

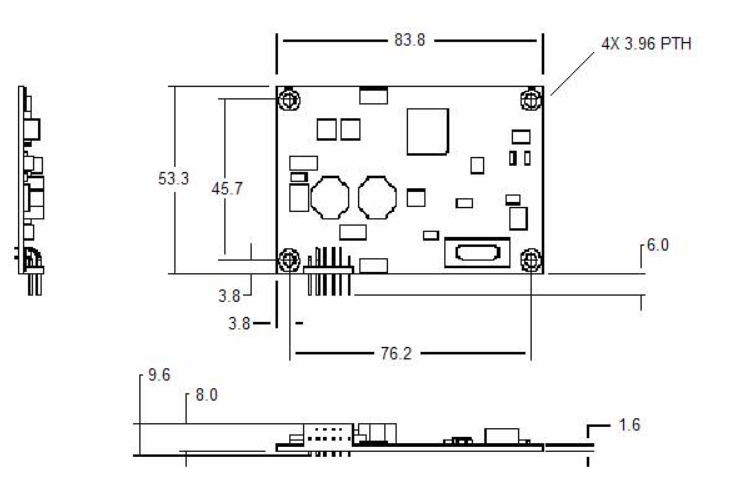

Veja abaixo os pinouts e dimensões do Controlador 2701 RSU IntelliTouch.
