Onde posso encontrar os jumpers e pinagens do Controlador Serial IntelliTouch 2500S SmartSet?

Este artigo fornece os Jumpers e Pinouts do Controlador Serial SmartSet IntelliTouch 2500S

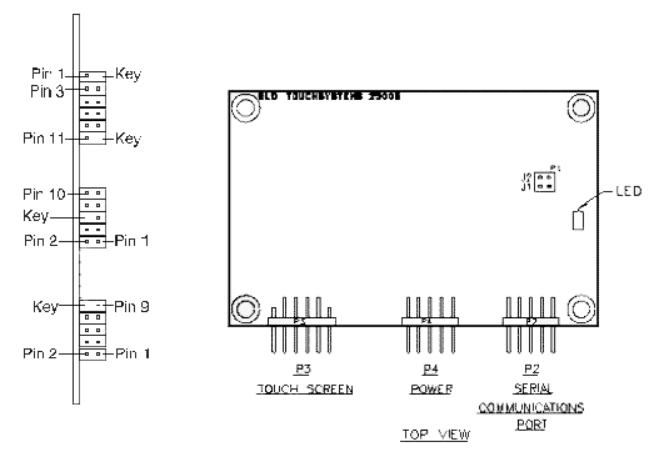

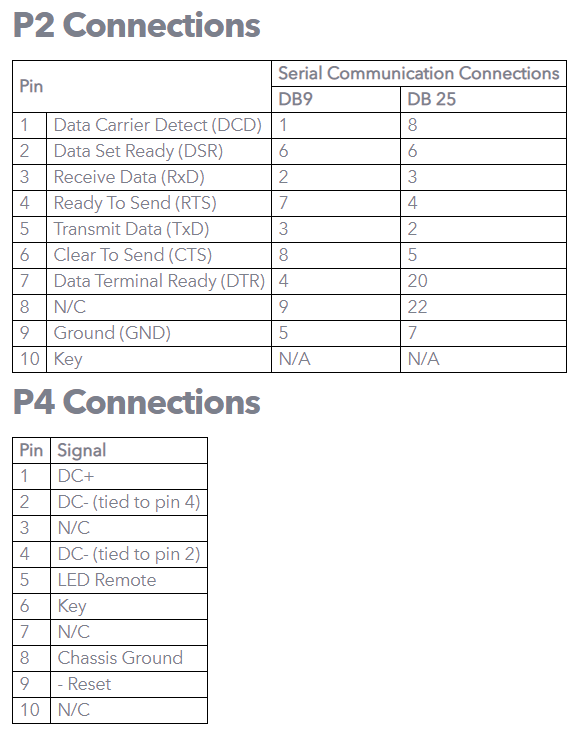

Veja abaixo os Jumpers e Pinouts do Controlador Serial SmartSet IntelliTouch 2500S.
