Qual é o número da peça para o suporte de display Windows para o suporte Wallaby?

Este artigo fornece o número da peça para o Suporte de Exibição Windows para o suporte Wallaby

Número da peça e descrição do Suporte de Exibição Windows que acompanha o Suporte de Autoatendimento Wallaby:
E244791: KIT-BRKT-SELF-SERVICE-15-22-WIN-2.0

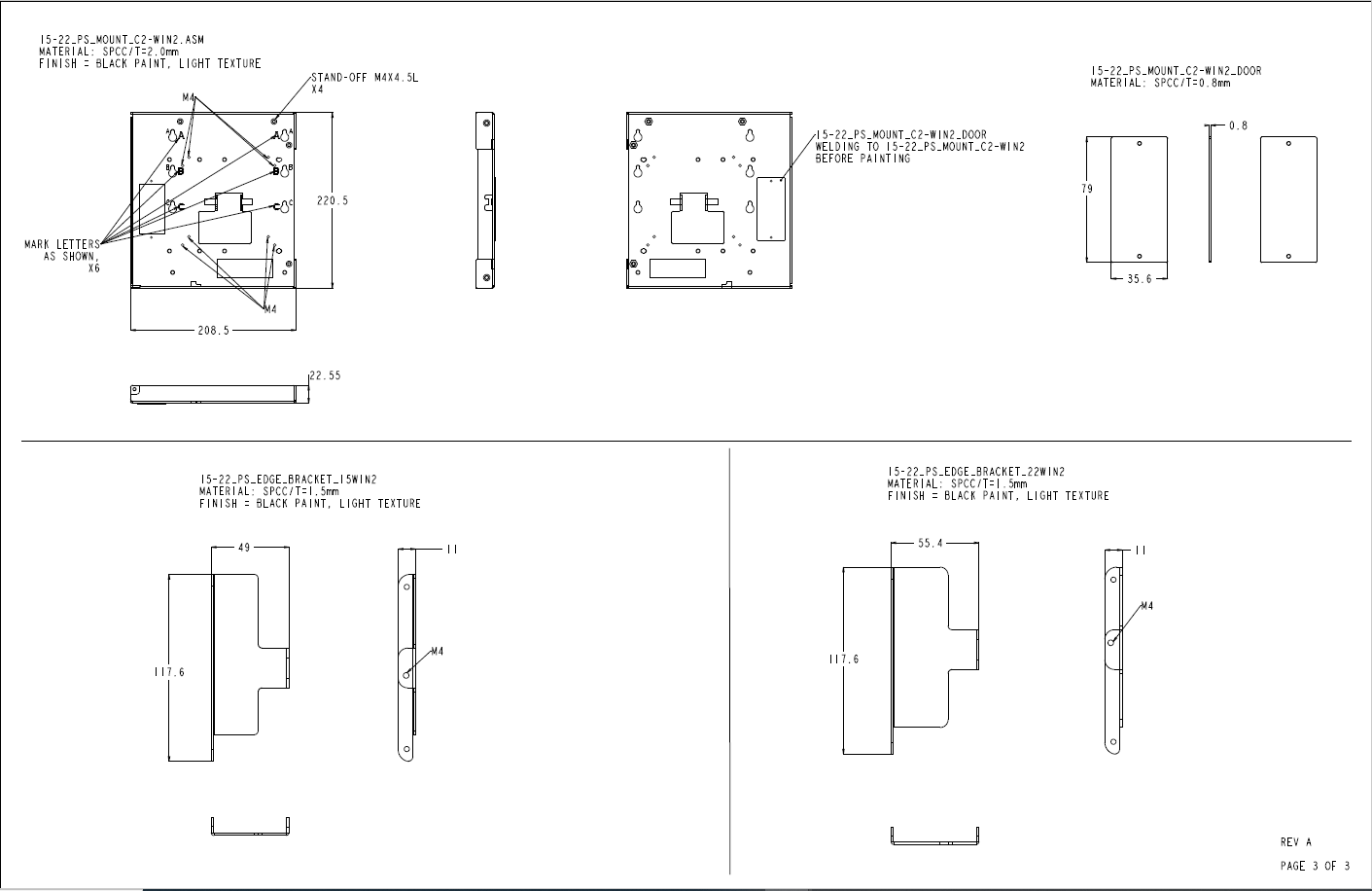

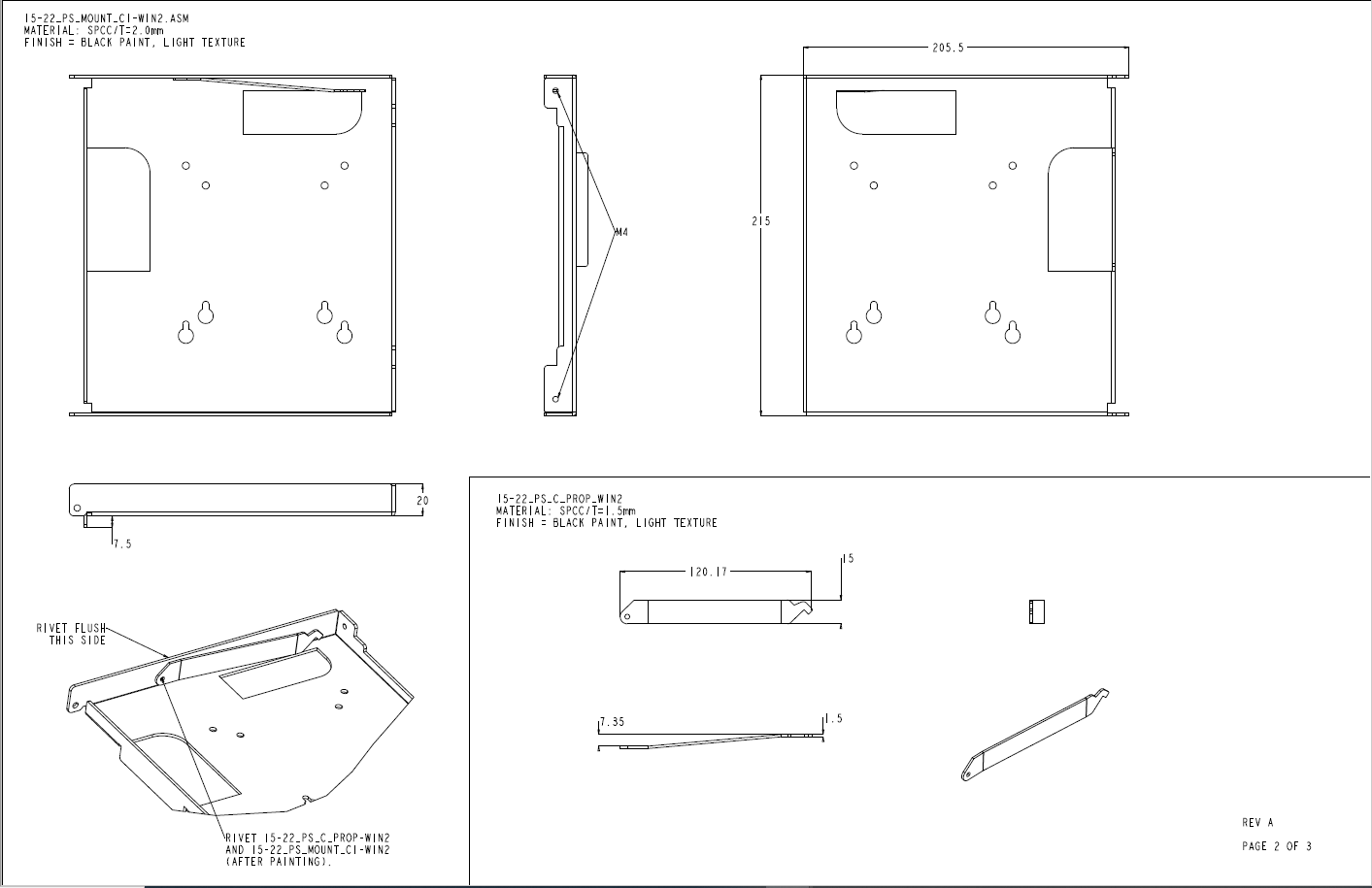

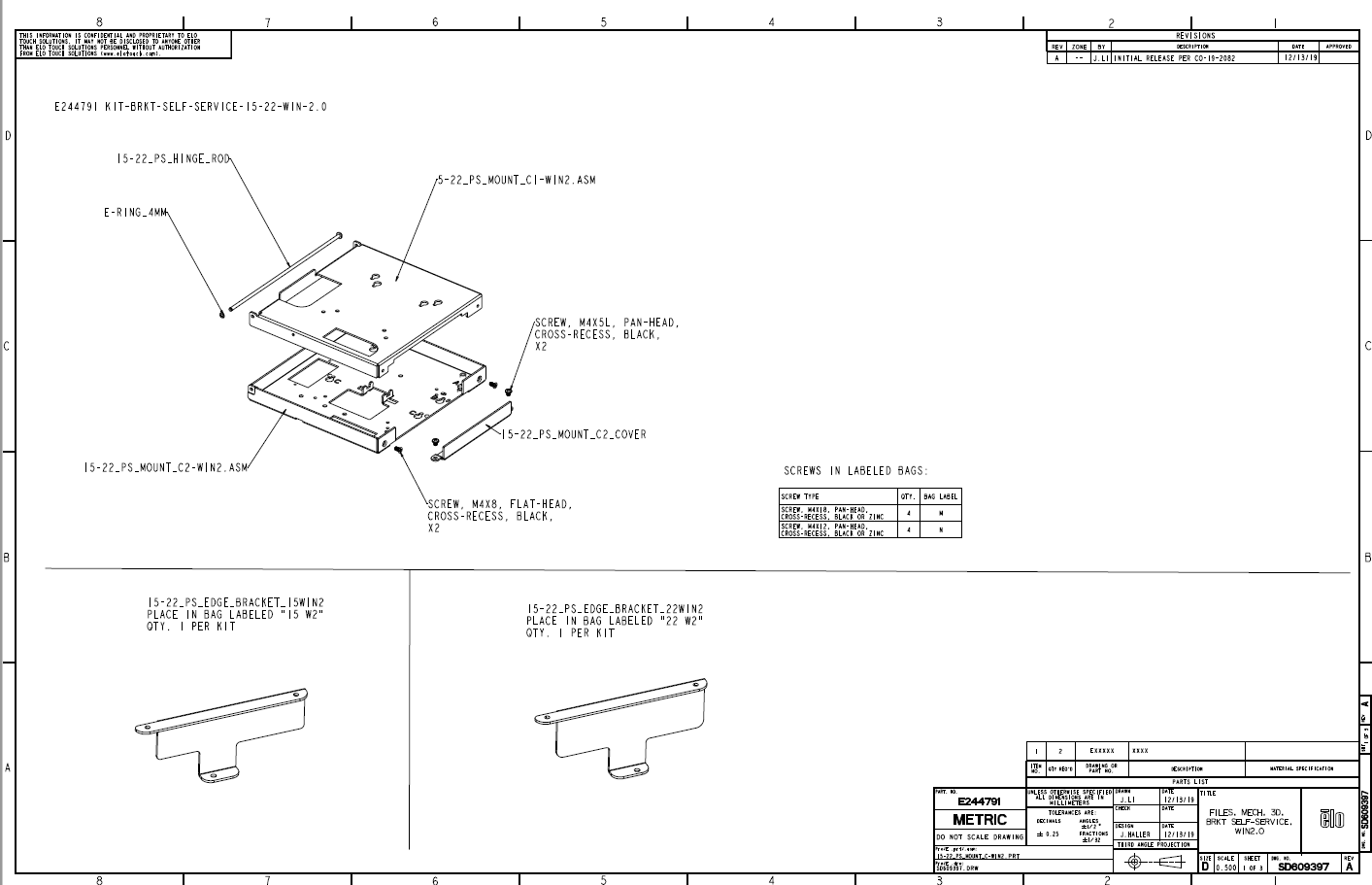

Veja o desenho abaixo:



Os desenhos acima também estão anexados a este KB em formato .pdf.
