Onde posso encontrar o pinout do cabo RJ45 para DB9 para as unidades EloPOS?

Este artigo descreve o pinout para o cabo RJ45 para DB9 que acompanha as unidades EloPOS

Descrição da peça: 5K.47T20.501: CABLE RJ45-RS232 900MM EA15PA0-1

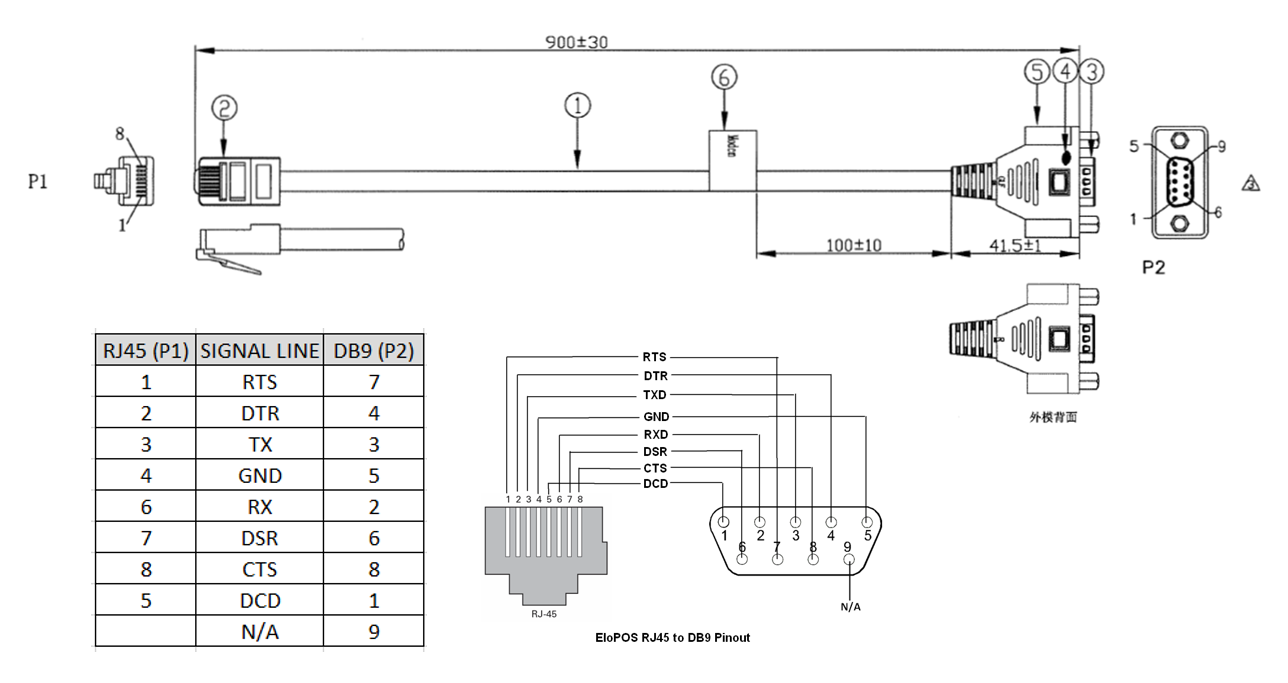

Pinout RJ45 para DB9 do EloPOS

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
