Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar os Desenhos Dimensionais do EloPOS Pack?

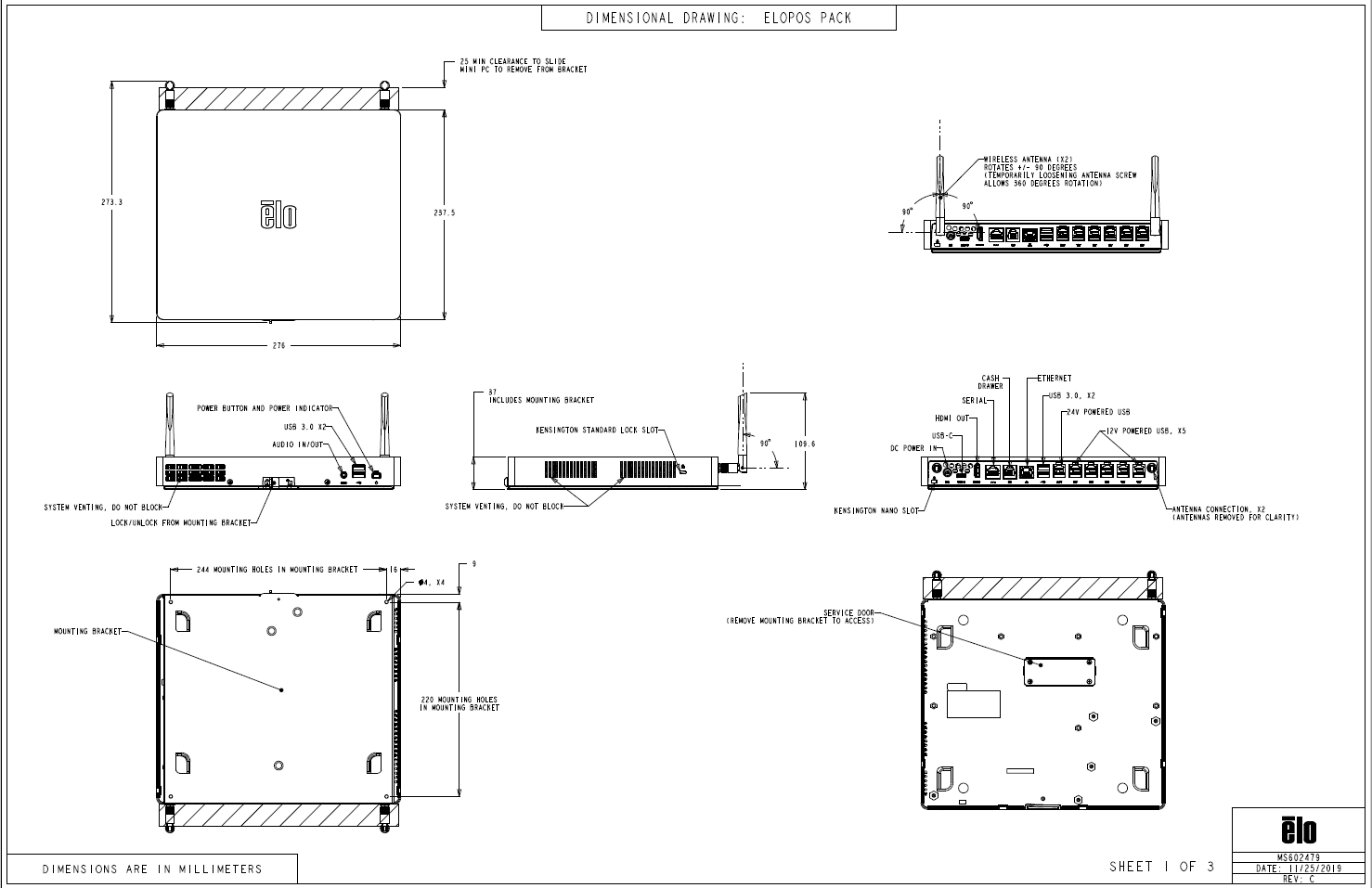

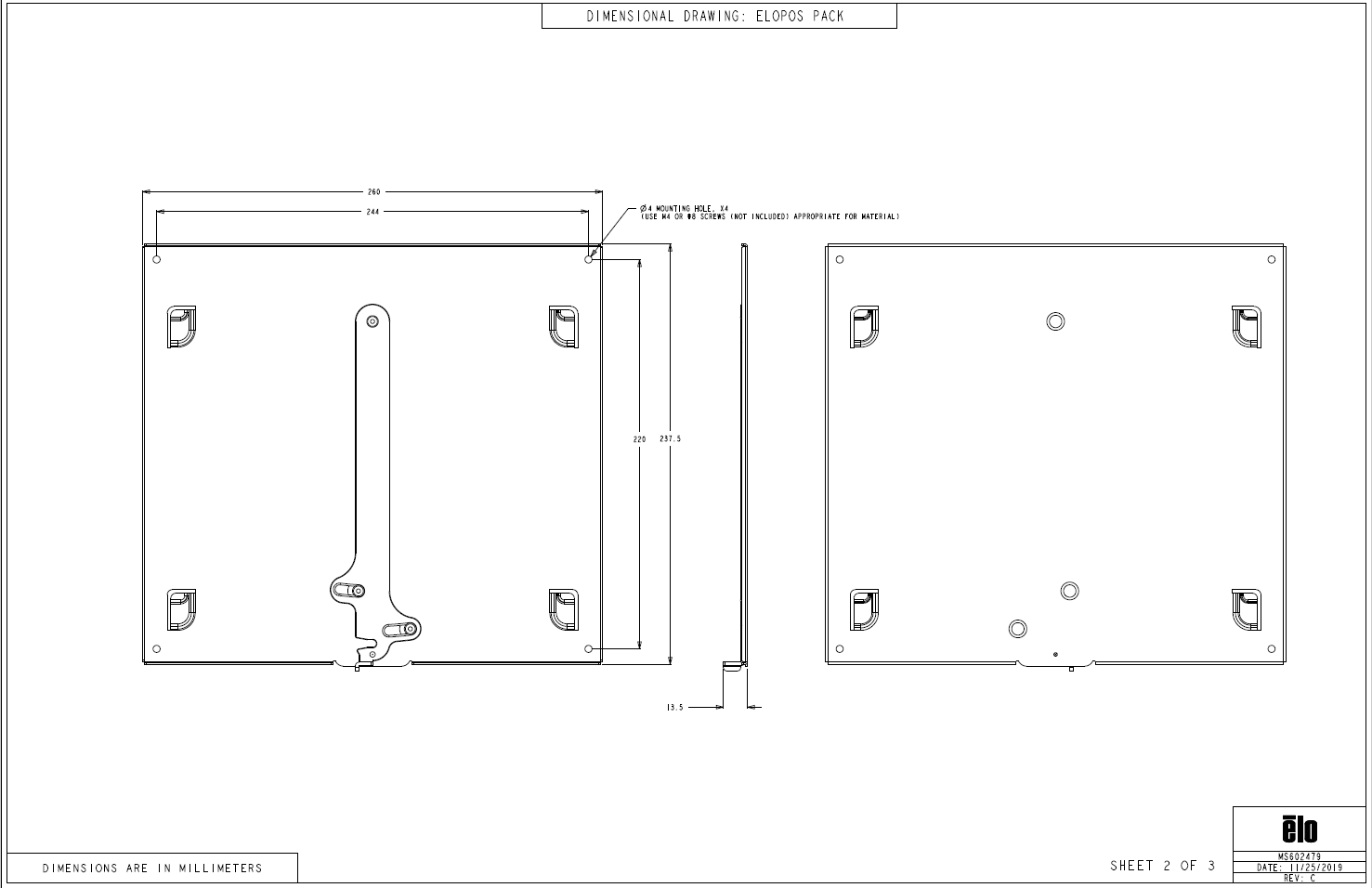

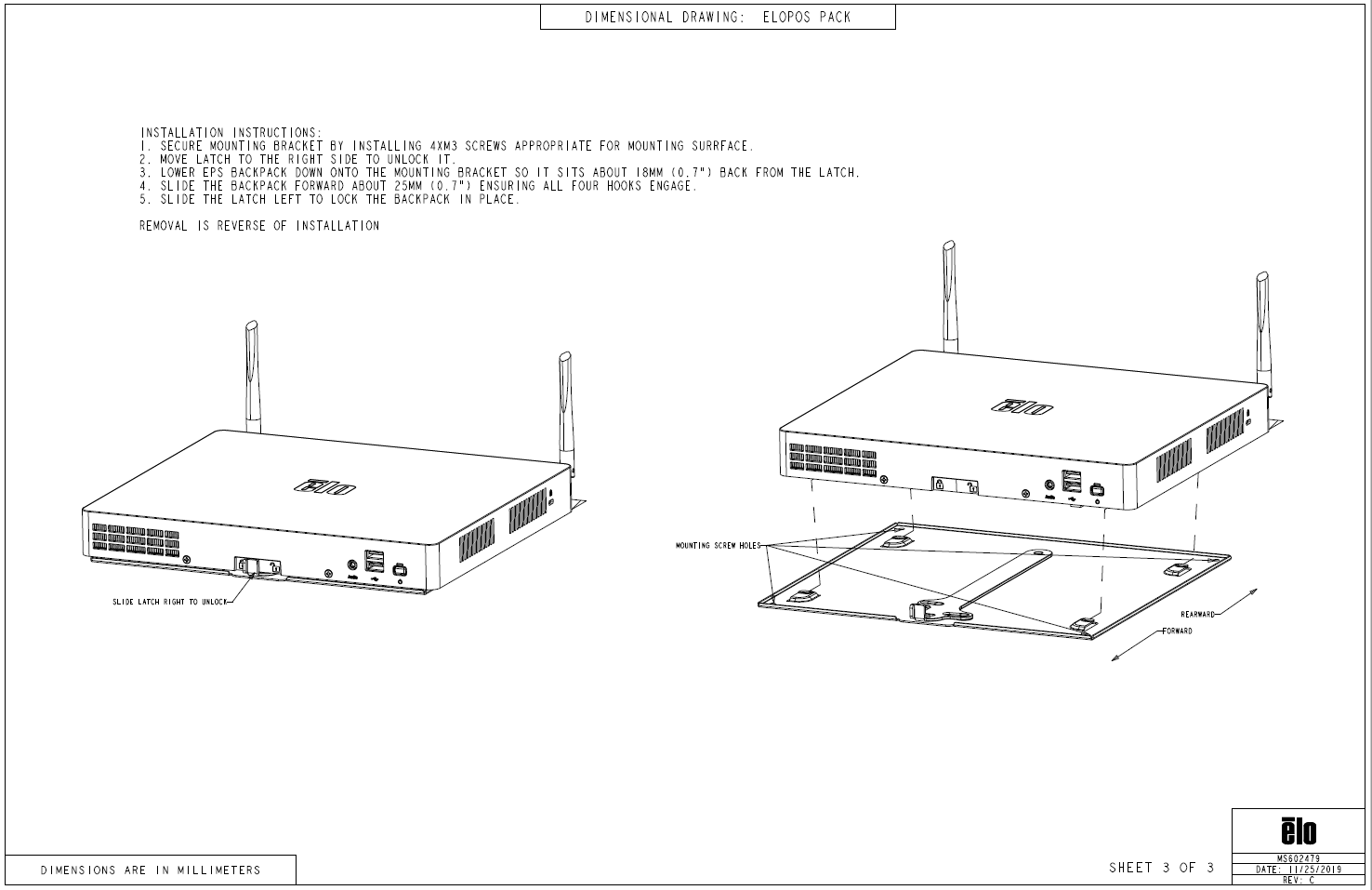

Este artigo fornece os Desenhos Dimensionais do EloPOS Pack abaixo

A versão .pdf pode ser baixada AQUI.



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
