Onde posso encontrar a pinagem do Cabo RS232 para DB9 E196292, X-Series?

Este artigo contém o pinout para o Cabo E196292, X-Series RS232 para DB9



Abaixo estão o desenho e os pinouts para P/N: E196292, Cabo X-Series RS232 para DB9.

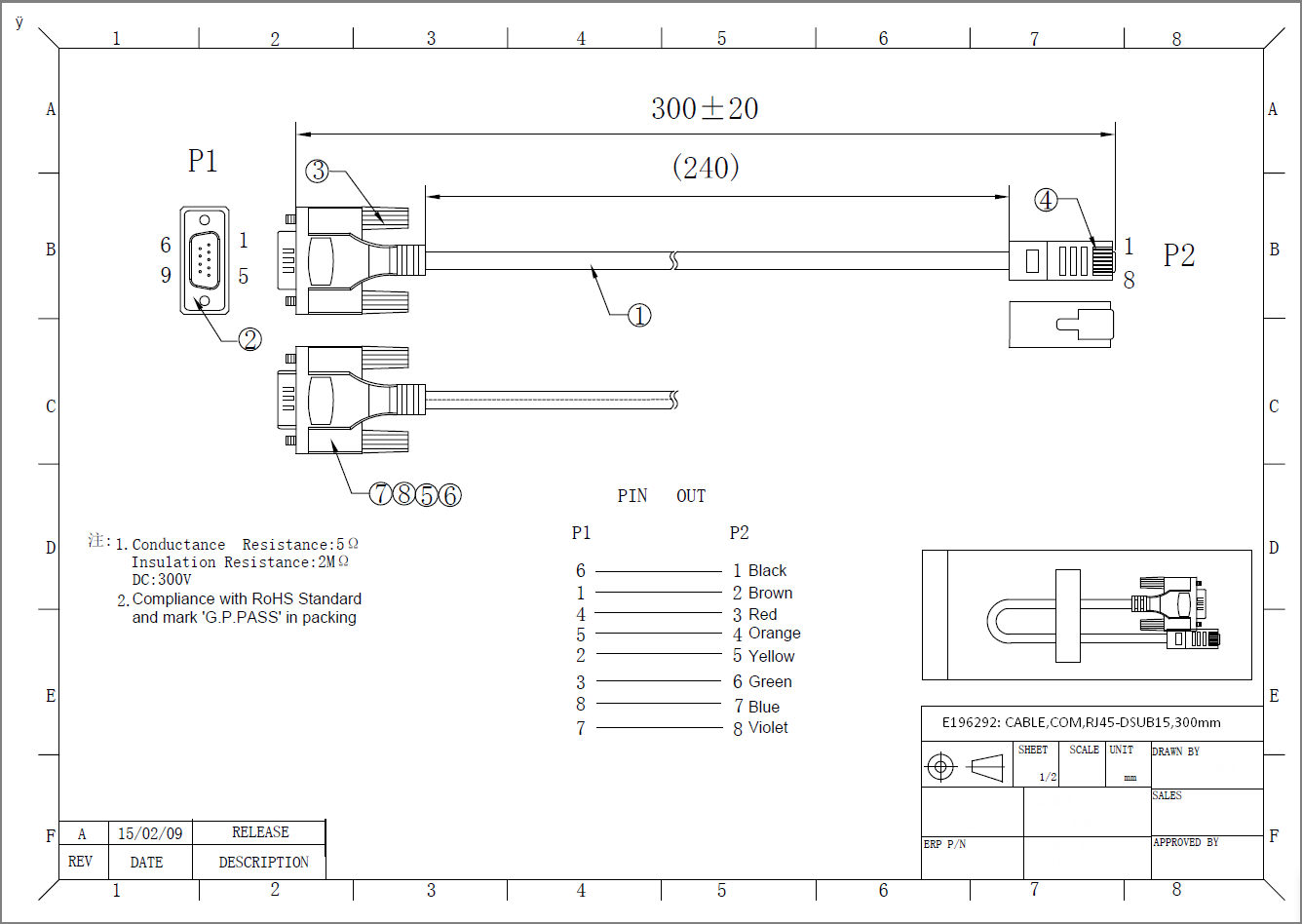

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

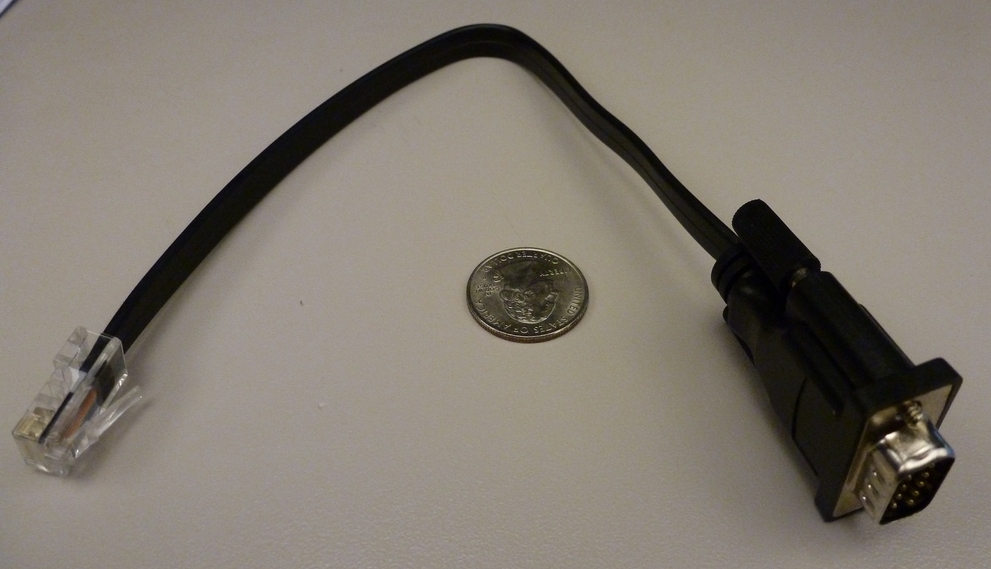

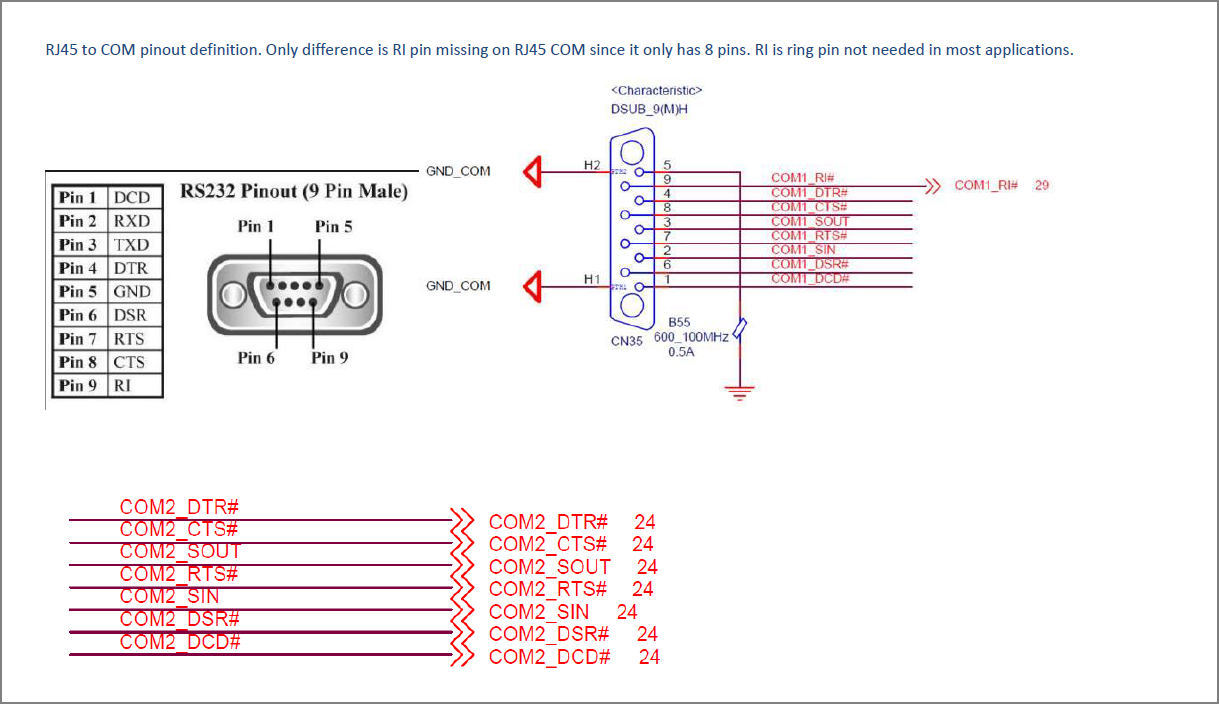

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
