Onde posso encontrar informações sobre E075614, cabo Y USB para 0700L (obsoleto)?

Este artigo fornece mais informações sobre o Elo P/N: E075614, cabo Y USB para monitor 0700L

Abaixo estão informações sobre o Elo P/N: E075614, cabo Y USB de 8 pés para monitor 0700L (agora obsoleto)

Número da peça & Descrição

  • E075614: CAB-USB-XT-8.2FT-R
  • CAB-KIT-Cabo Y de 2.5 metros para o 0700L
  • Nota: O conector na extremidade que se conecta ao 0700L é Mini-USB

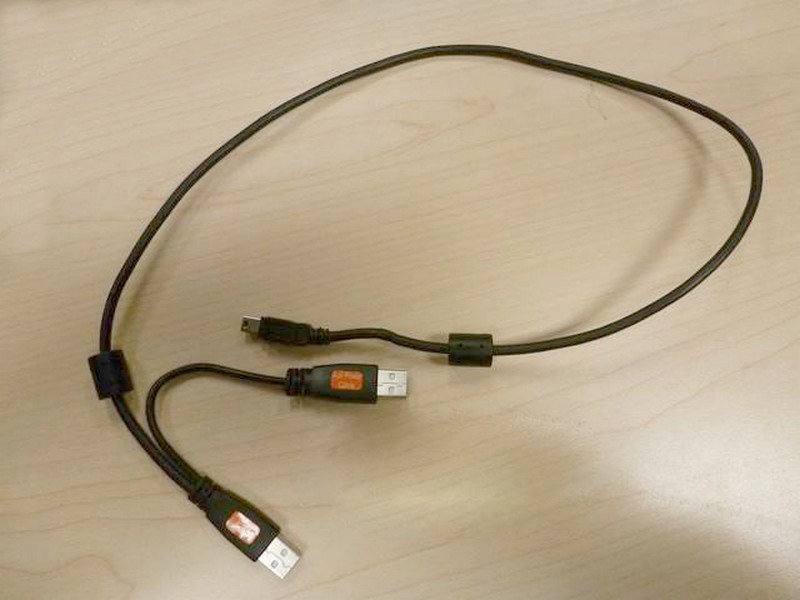

Foto

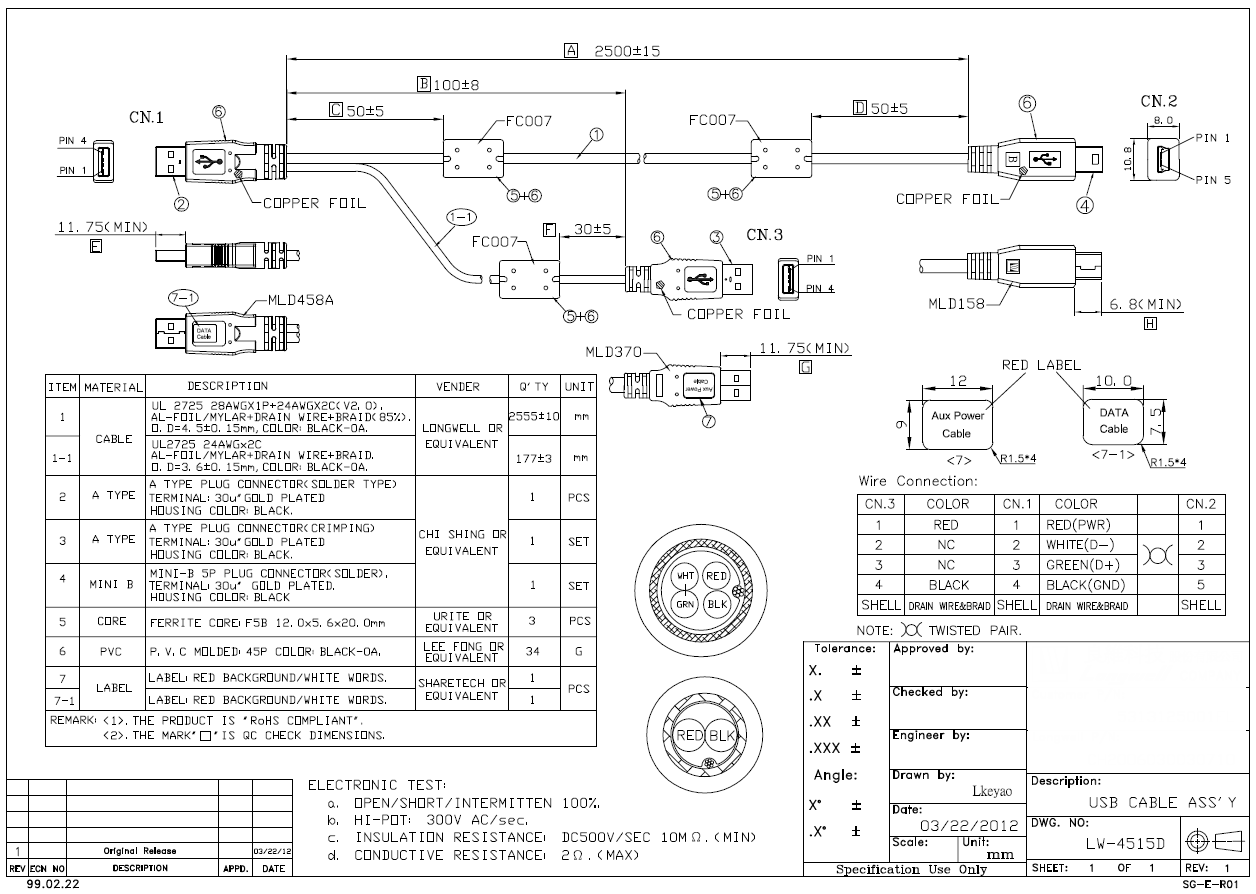

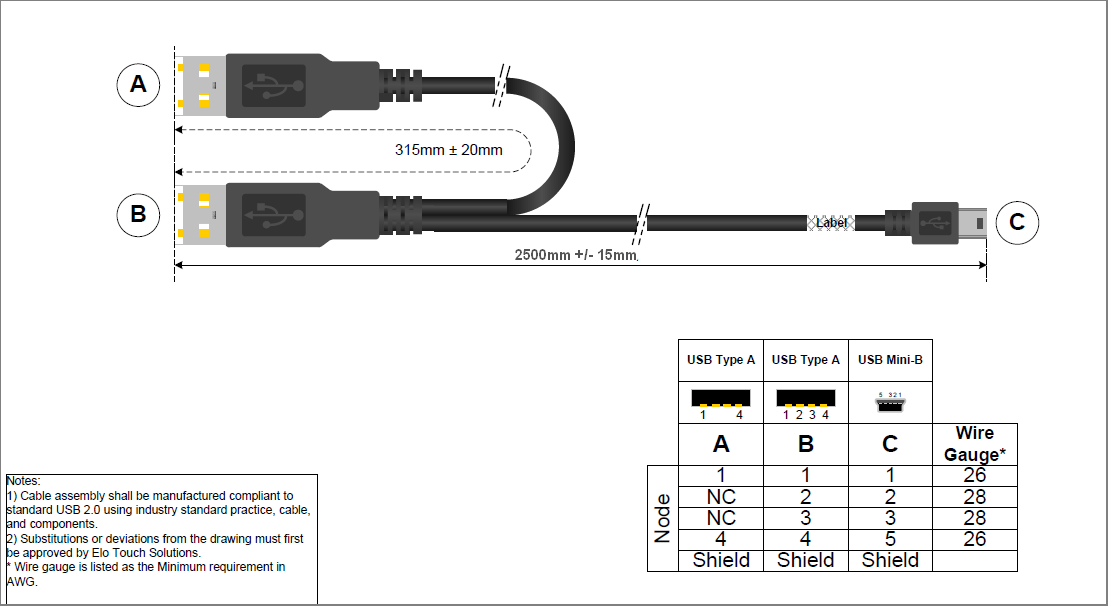

Desenho
