Onde posso encontrar mais informações sobre o Kit Adaptador de 100mm – Elo P/N: E388675?

Este artigo fornece informações sobre o Kit de Adaptador de 100mm – Elo P/N: E388675.

Veja abaixo as informações sobre o Kit de Adaptador de 100mm – Elo P/N: E388675. Este adaptador é destinado a ser usado nas unidades Elo de 15 polegadas i-Series 2.0 com Windows. Ele adapta o VESA de 75mm na parte traseira da unidade para um suporte VESA de 100mm, permitindo a montagem em suportes VESA de 100mm.

O kit contém os seguintes itens:

  • Placa Adaptadora VESA de 100mm (1)
  • Parafuso M4x16 (4)

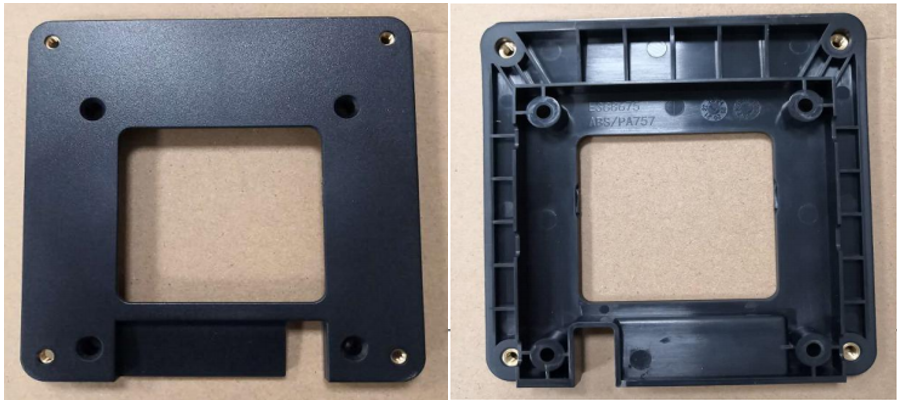

Abaixo estão fotos da placa do adaptador:

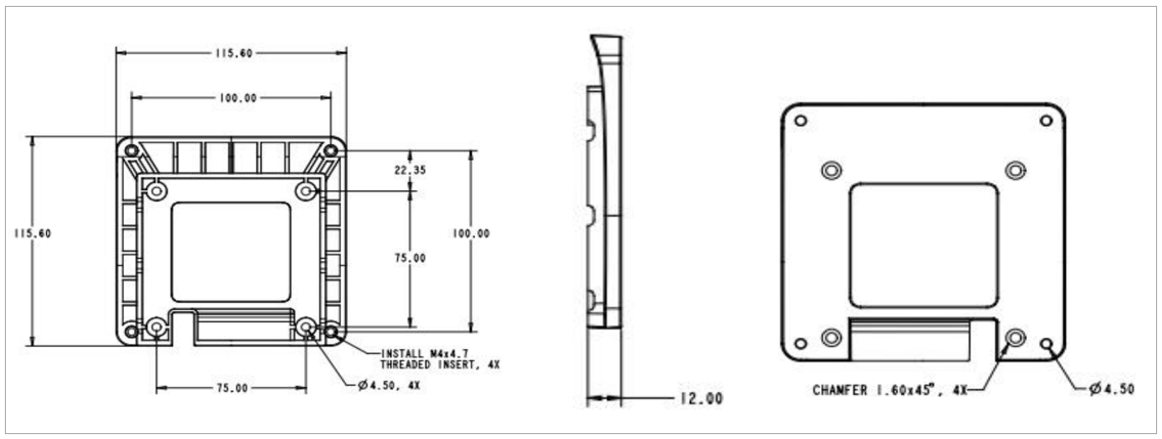

Desenho Dimensional abaixo:

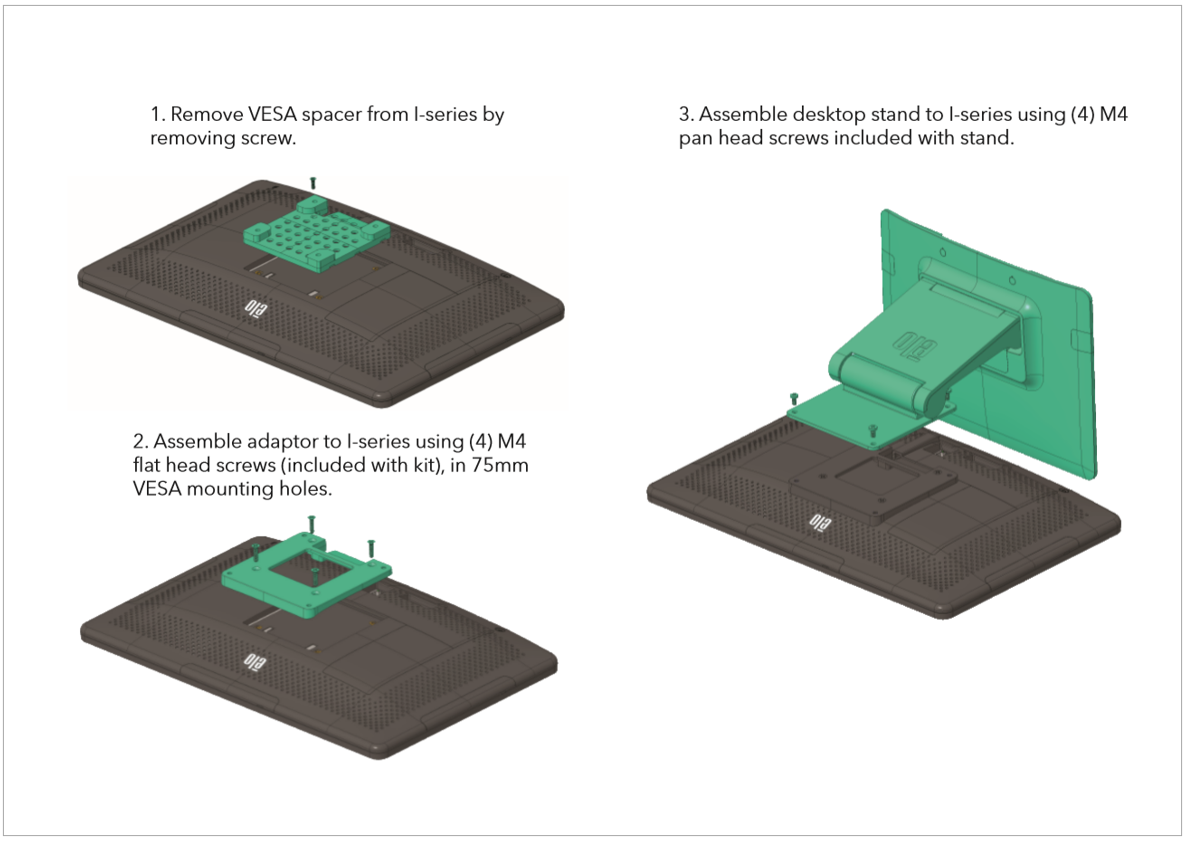

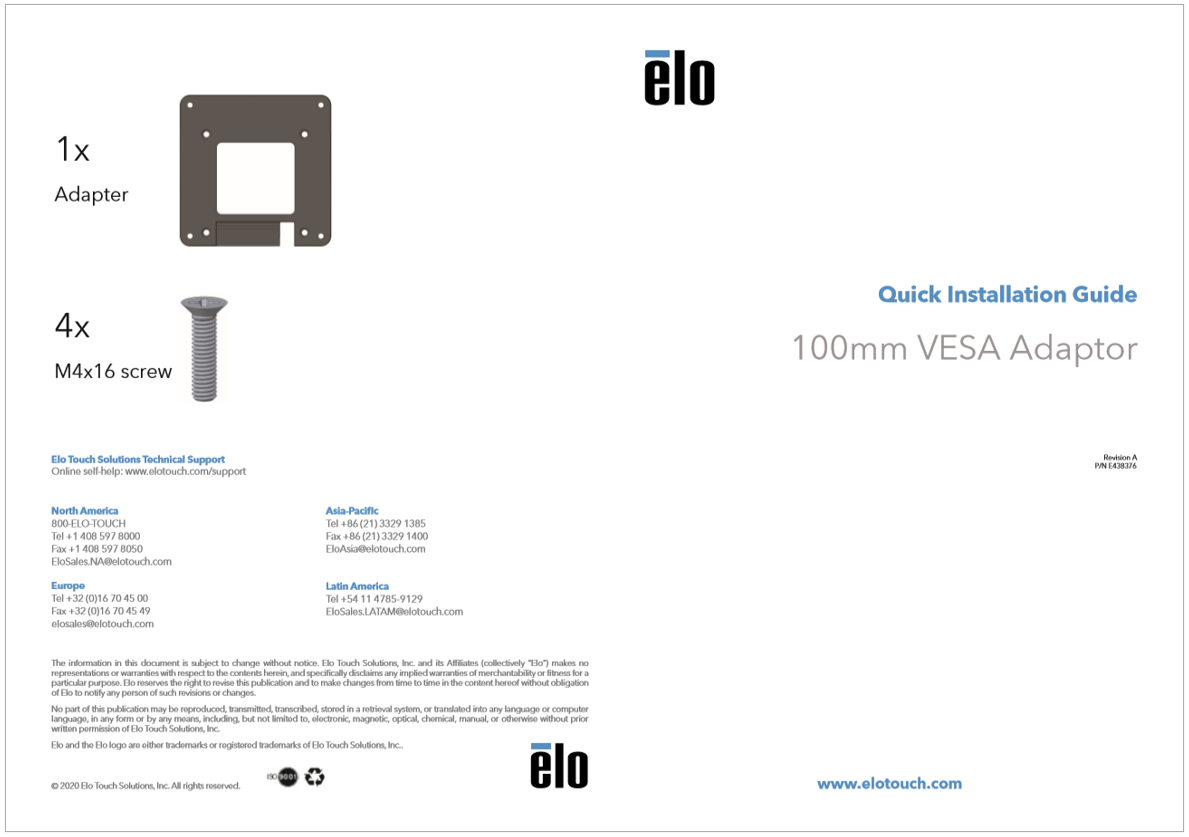

Guia de Instalação Rápida Abaixo:
