Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar especificações e fotos do Suporte E275623 para IDS 02 Series?

Este artigo fornece especificações e fotos do Suporte E275623 para IDS 02 Series

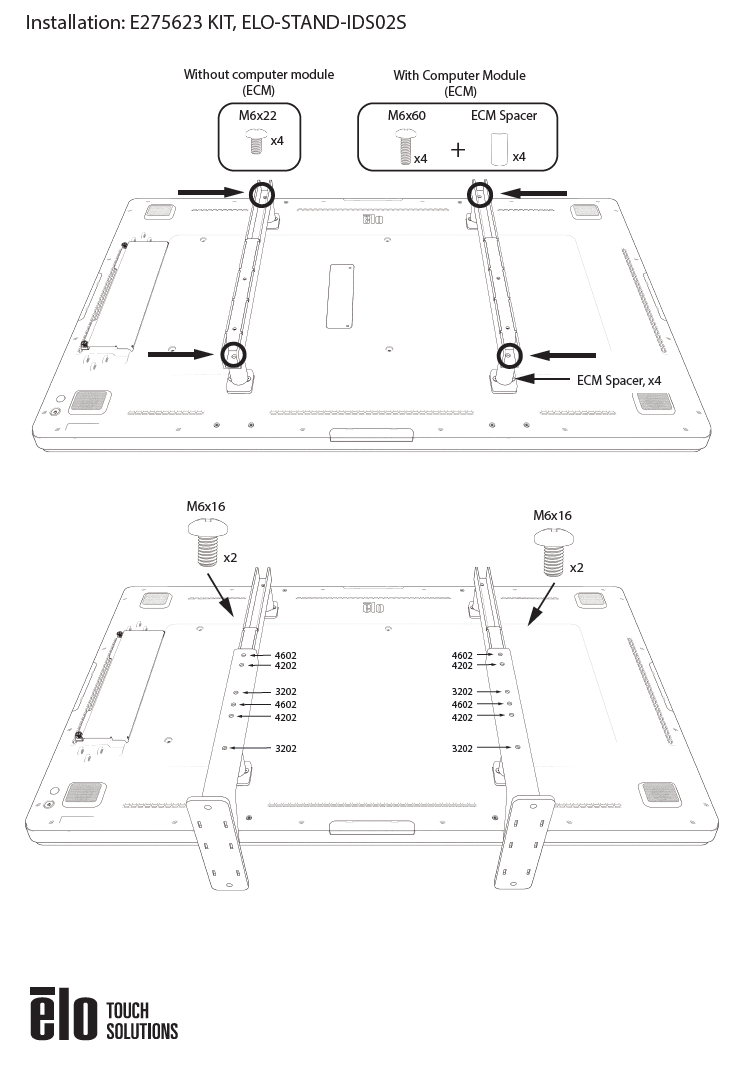

Veja abaixo as especificações e fotos do Suporte E275623 para monitores IDS 02 Series.

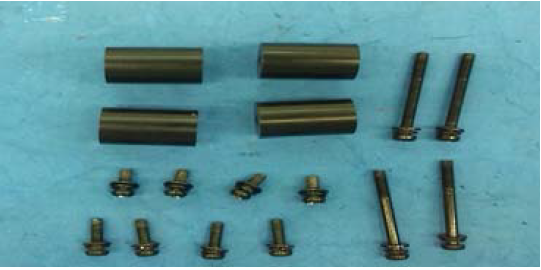

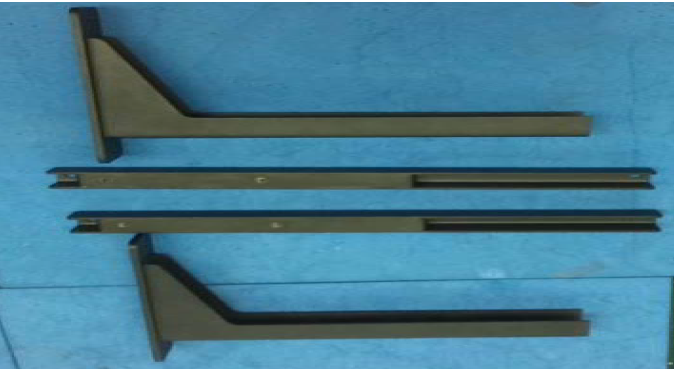

Conteúdo do Kit:

  • 2x IDS3_STAND_MNT
  • 2x IDS3_STAND_LEG
  • 4x Parafusos Philips M6 x 22mm
  • 4x Parafusos Philips M6 x 16mm
  • 4x Parafusos Philips M6 x 60mm
  • 4x ESPAÇADOR VESA de 39MM de comprimento

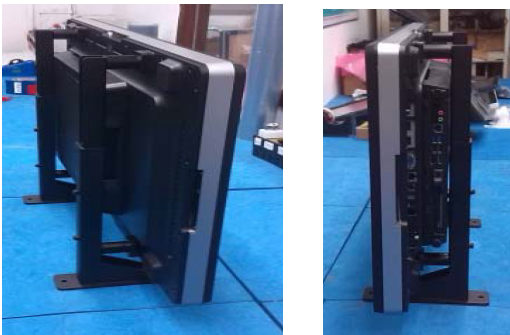

Fotos:
