Onde posso encontrar informações sobre o kit de moldura para montagem em rack E462672 Elo 2293L-2294L?

Este artigo fornece informações sobre o E462672 Elo 2293L-2294L Bezel de montagem em rack

E462672 Elo 2293L-2294L Bezel de montagem em rack, adequado apenas para as versões intelliTouch, SecureTouch, AccuTouch dos produtos. Este suporte requer 12U de espaço em rack.

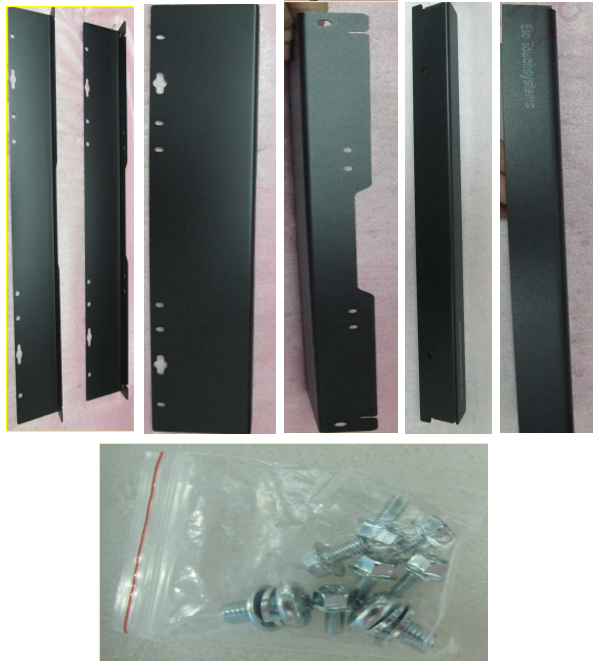

Conteúdo do kit:

  • 1x SUPORTE, MONTAÇÃO INFERIOR EM RACK
  • 2x SUPORTE, LATERAL, MONTAÇÃO EM RACK
  • 4x PARAFUSO, PHIL, PNHD COM CAPT WHRS, M6X12L-R
  • 4x PARAFUSO, HXHD, PHIL, SERREADO, M4X

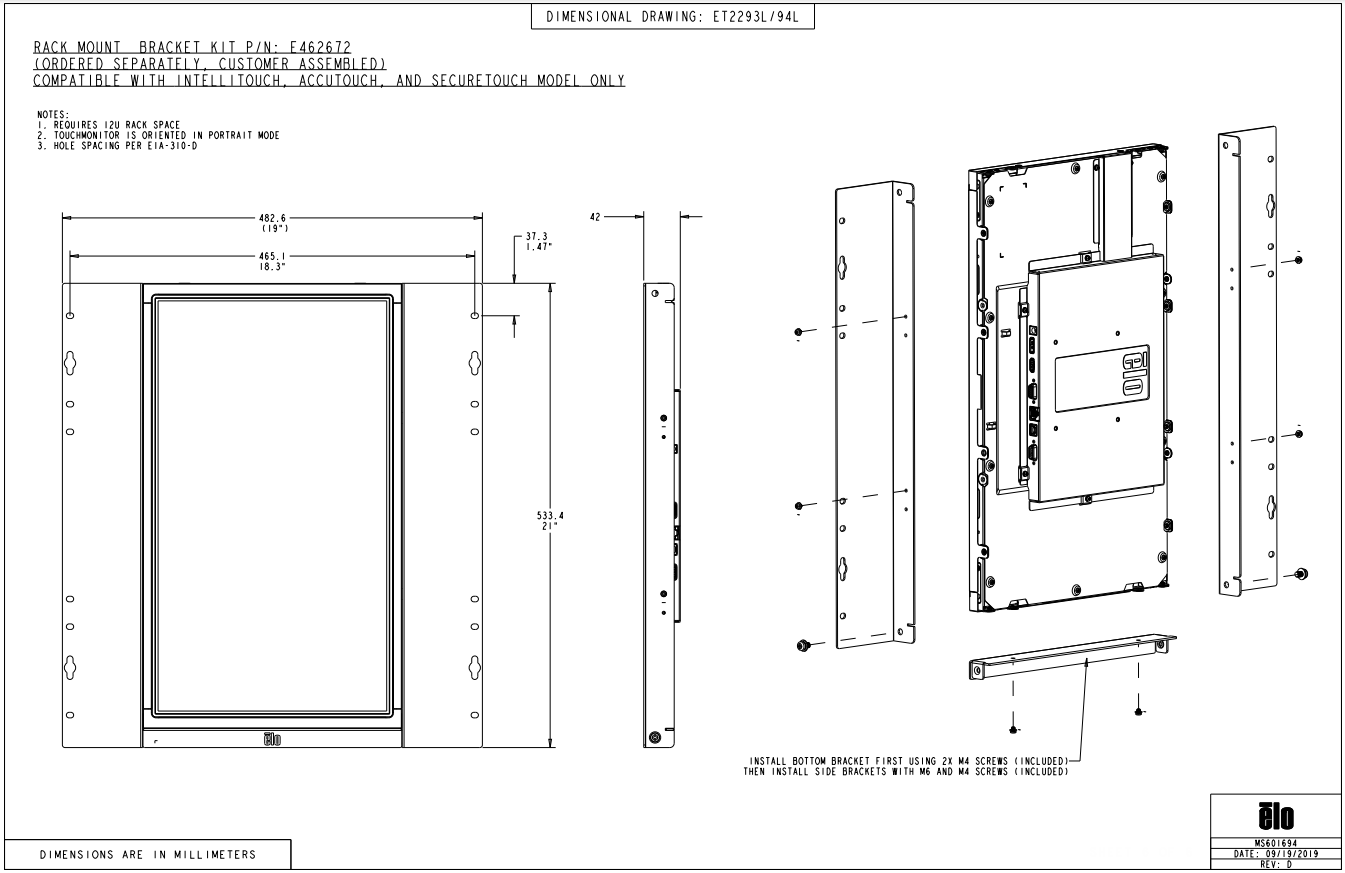

Desenho e Montagem
