Onde posso encontrar informações sobre E763022 e E752302, cabos USB Y alimentados por 12V?

Este artigo fornece informações sobre os cabos USB com alimentação de 12V atualmente vendidos para os monitores de toque Elo 1002L e 1502L.

Números de peça e descrições:

  • E763022: Cabo, USB 12V Pwd, 3M, cabo Y USB alimentado por 12V 3m
  • E752302: Cabo, pUSB 12V 2.5mm 1.8m, cabo Y USB alimentado por 12V Elo 1.8m

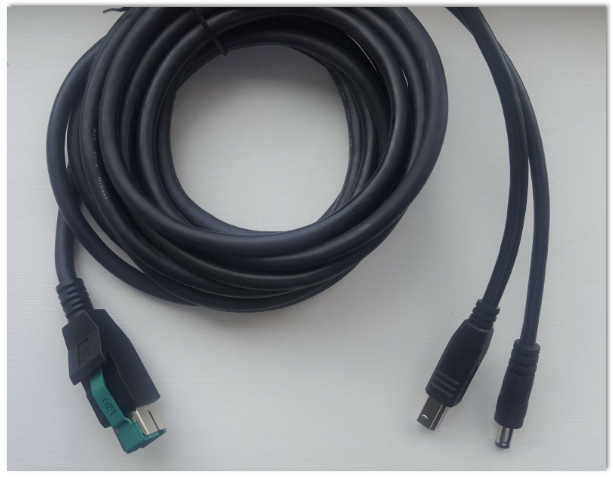

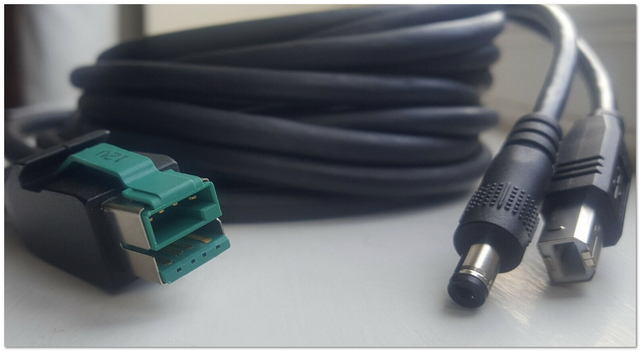

Fotos (cabo de 3m mostrado. O de 1.8m é idêntico, exceto pelo comprimento do cabo).

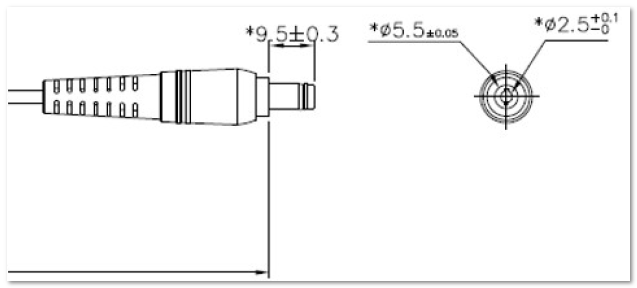

Pinagem do conector Barrel de 5,5mm x 2,5mm para saída DC de 12V
