Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar desenhos dimensionais para o monitor 2799L Outdoor Open Frame?

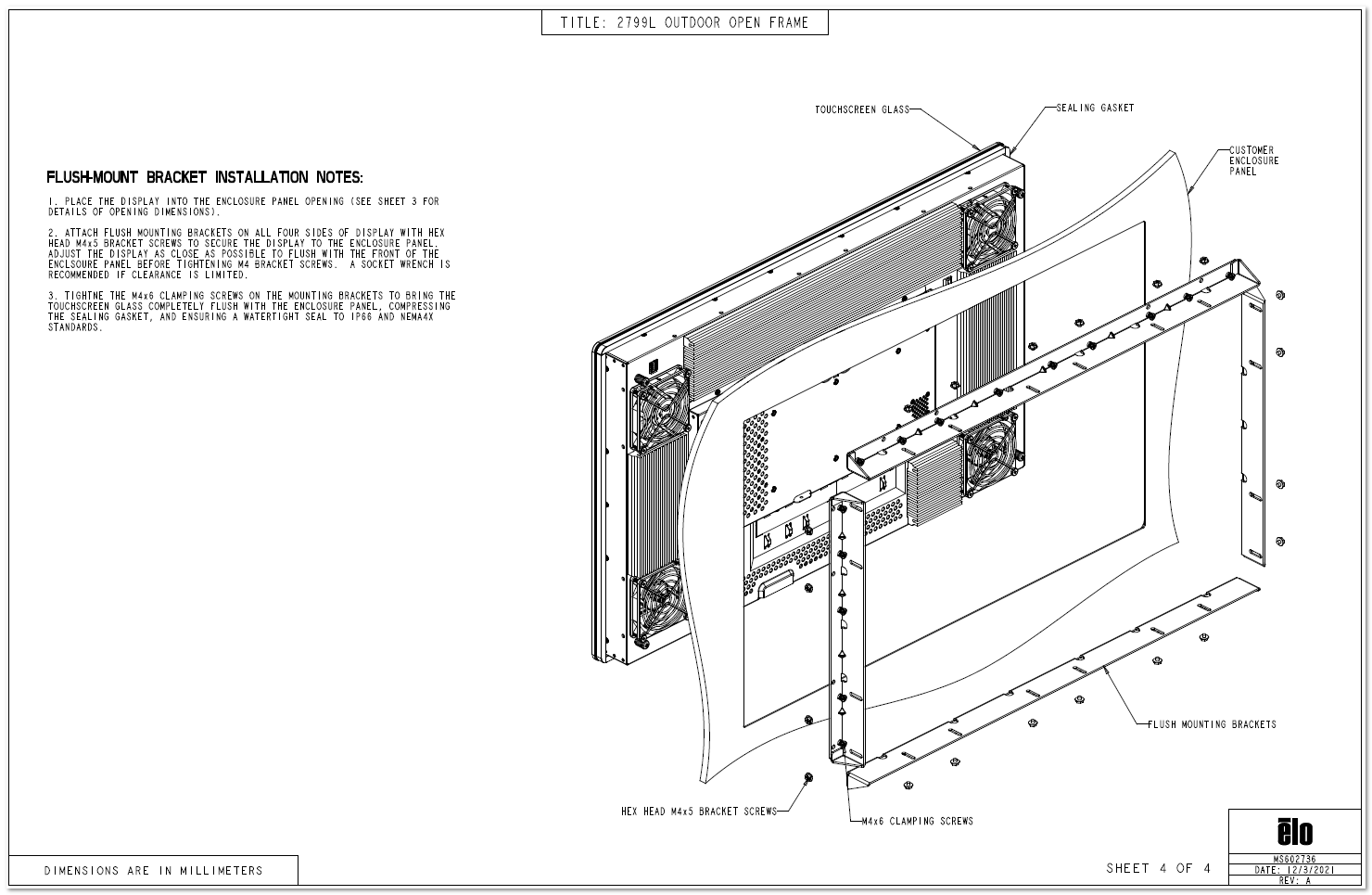

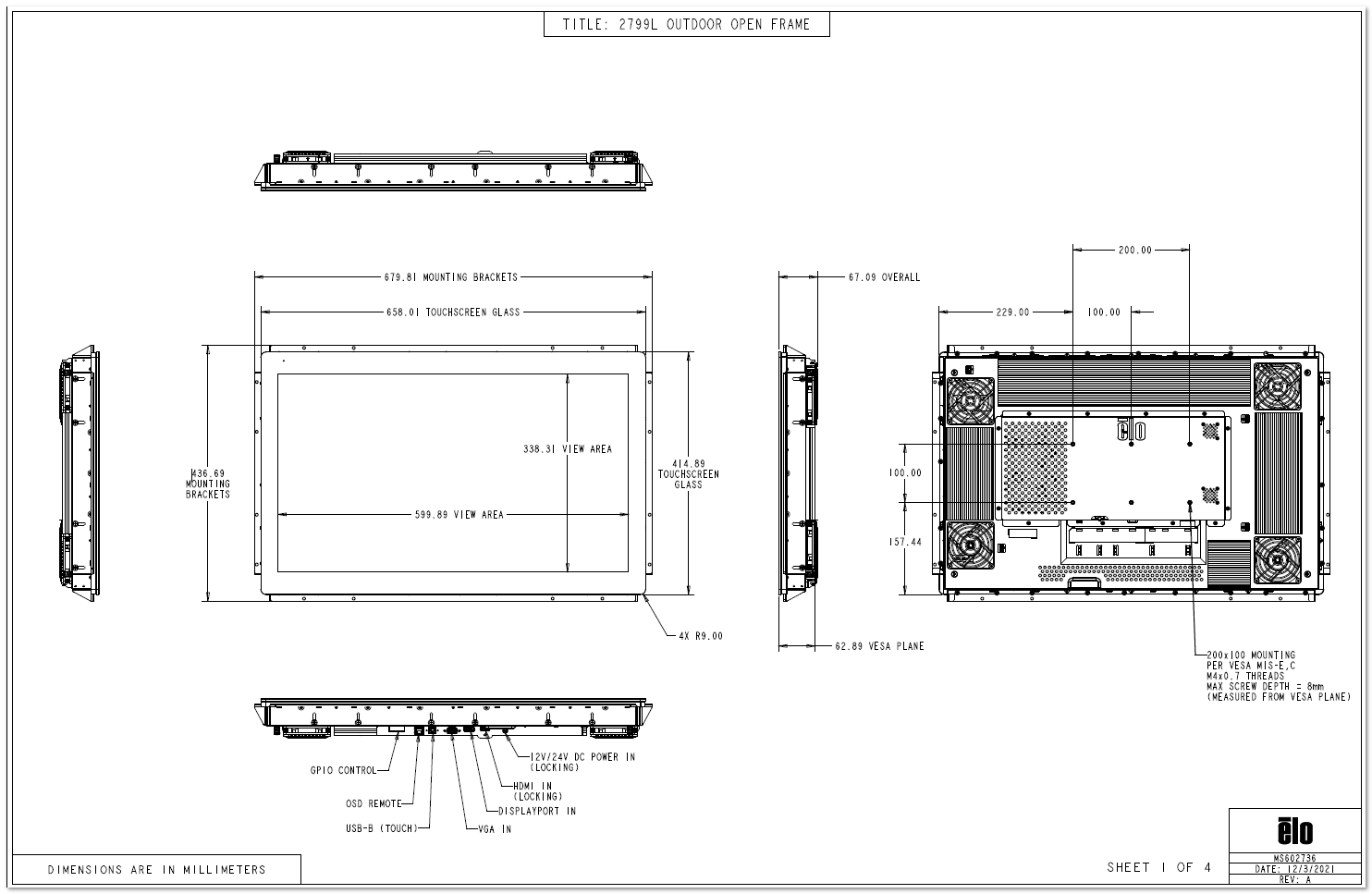

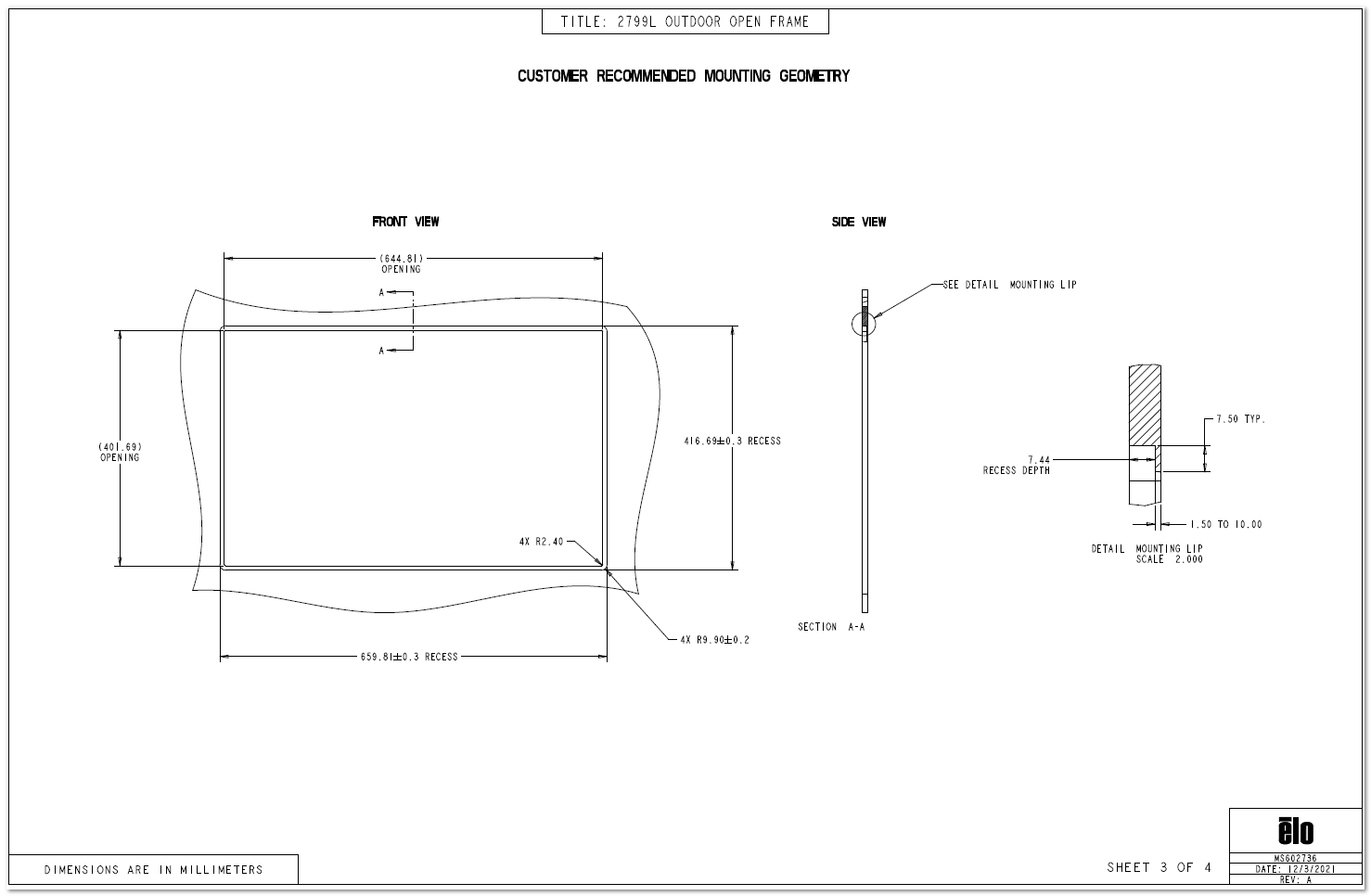

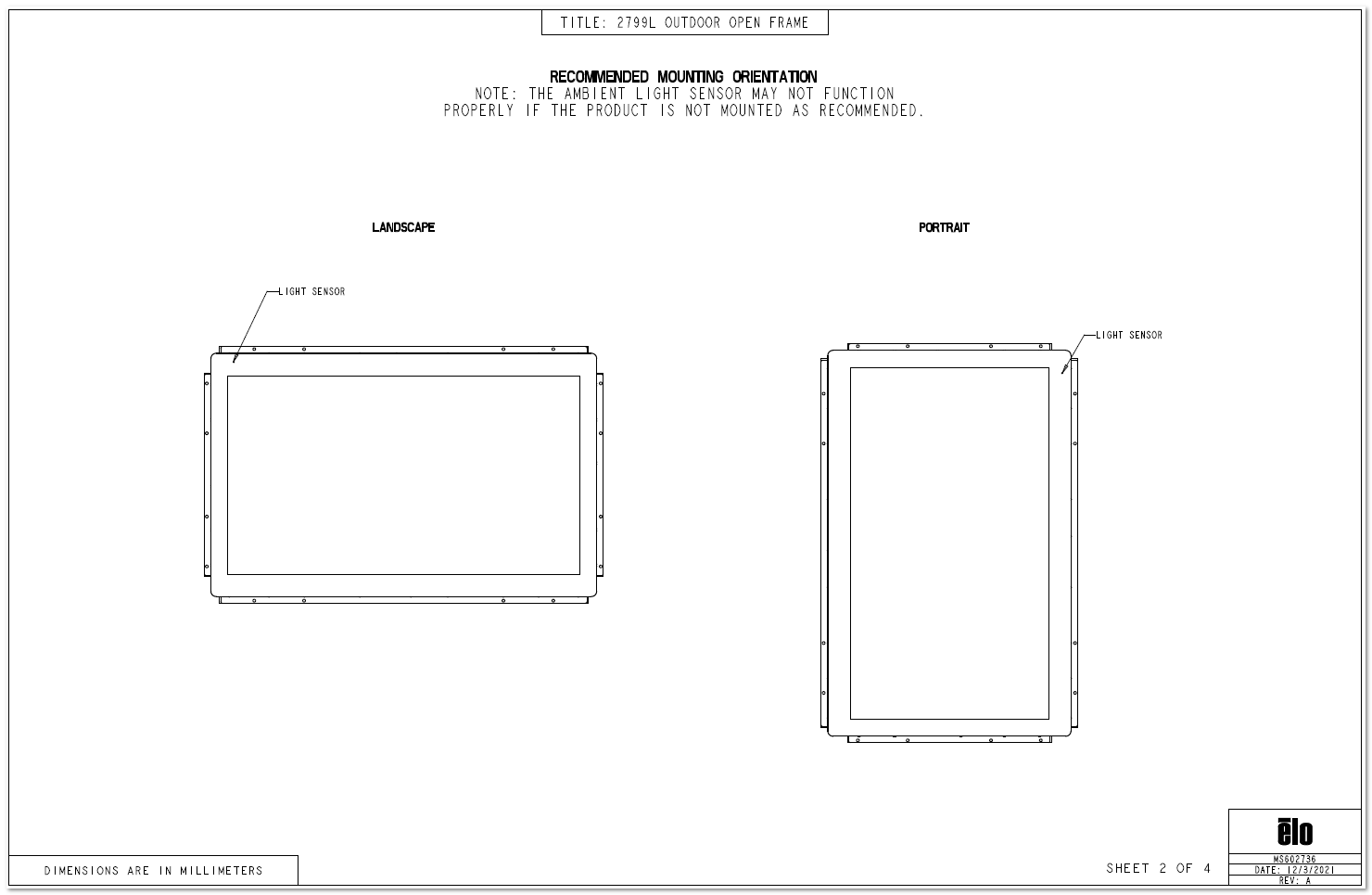

Este artigo fornece os desenhos dimensionais para o monitor 2799L Outdoor Open Frame

Desenhos:
