Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar desenhos dimensionais para o monitor de Quadro Aberto 1099L para Uso Externo?

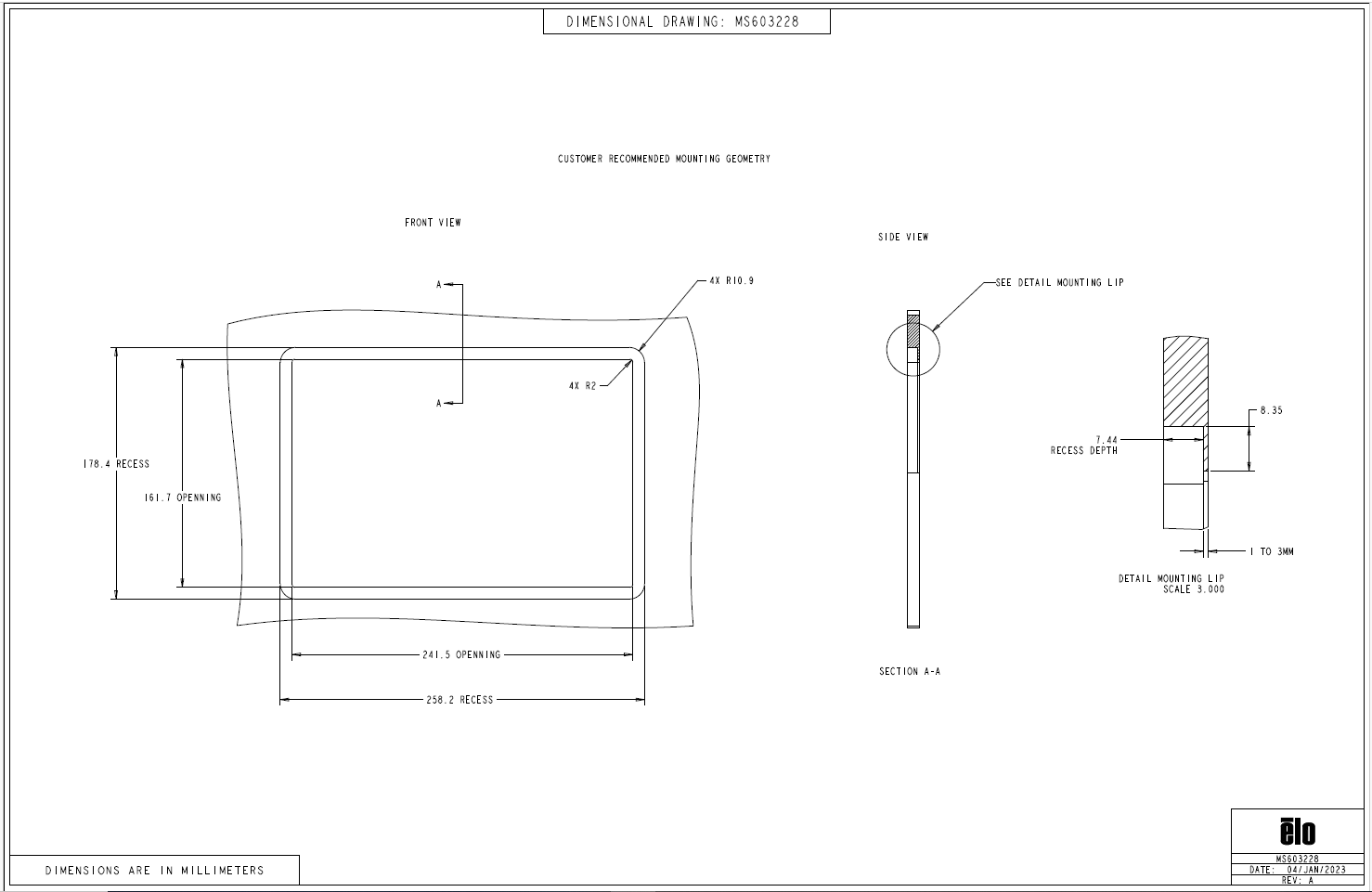

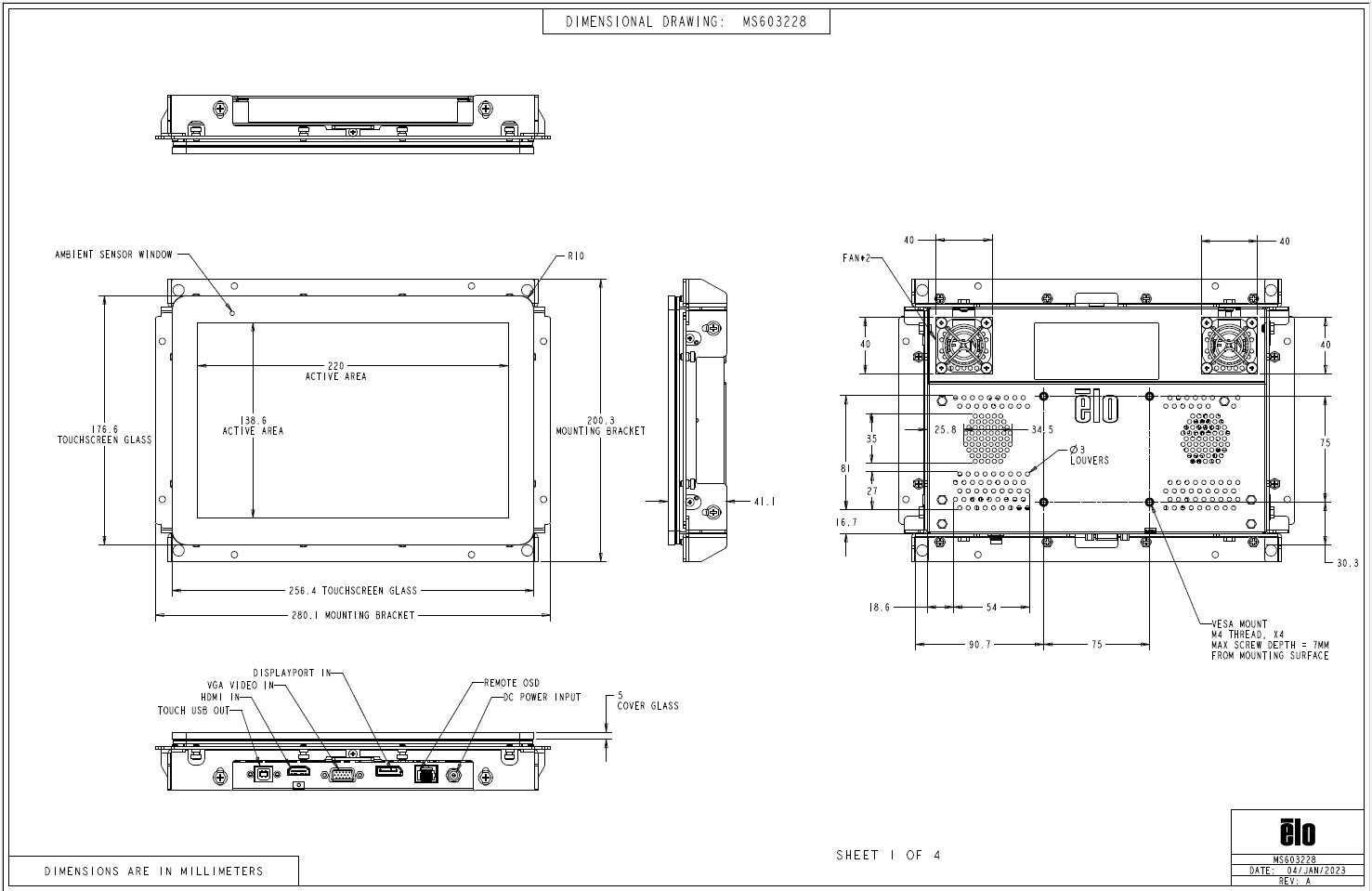

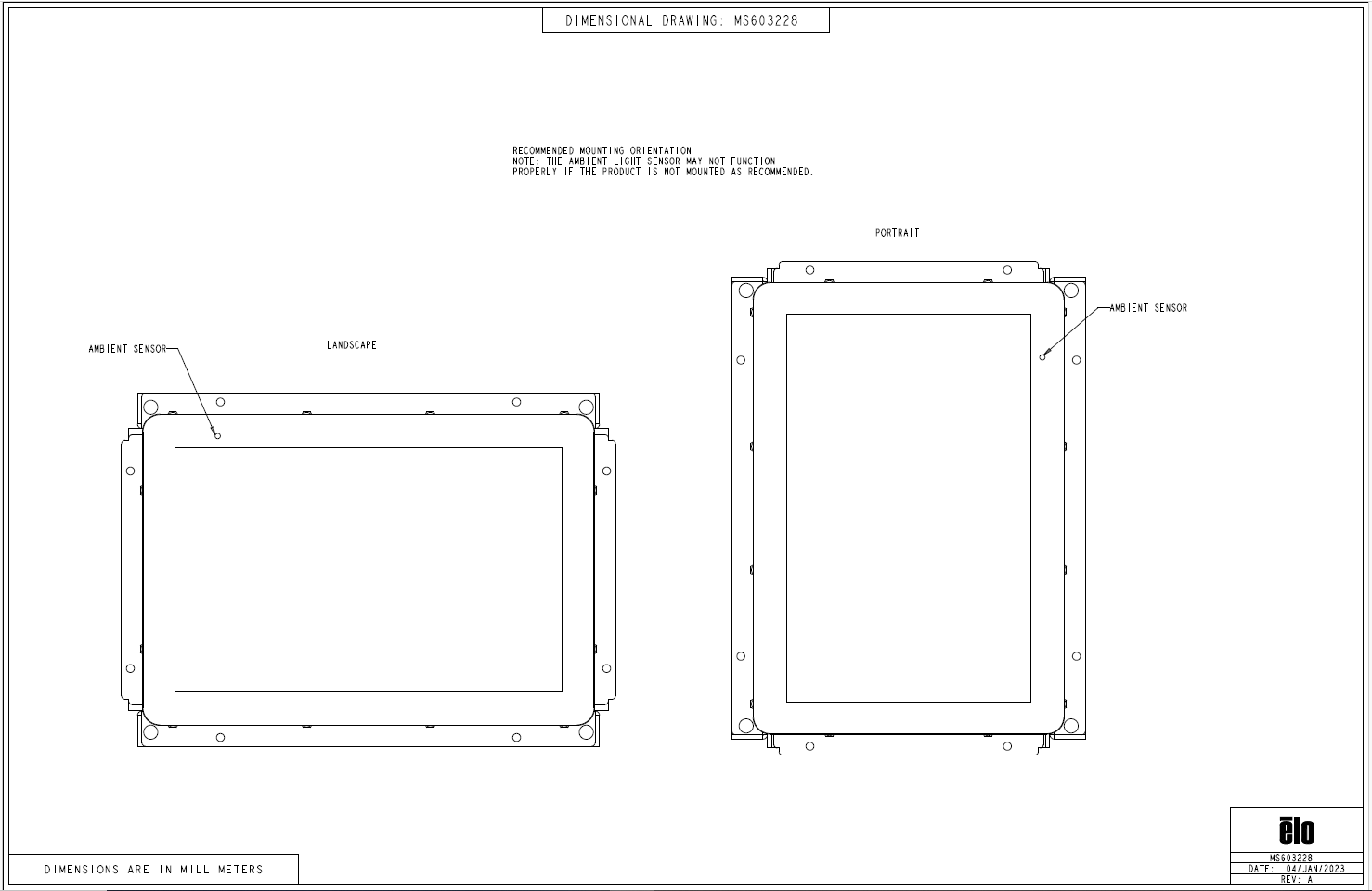

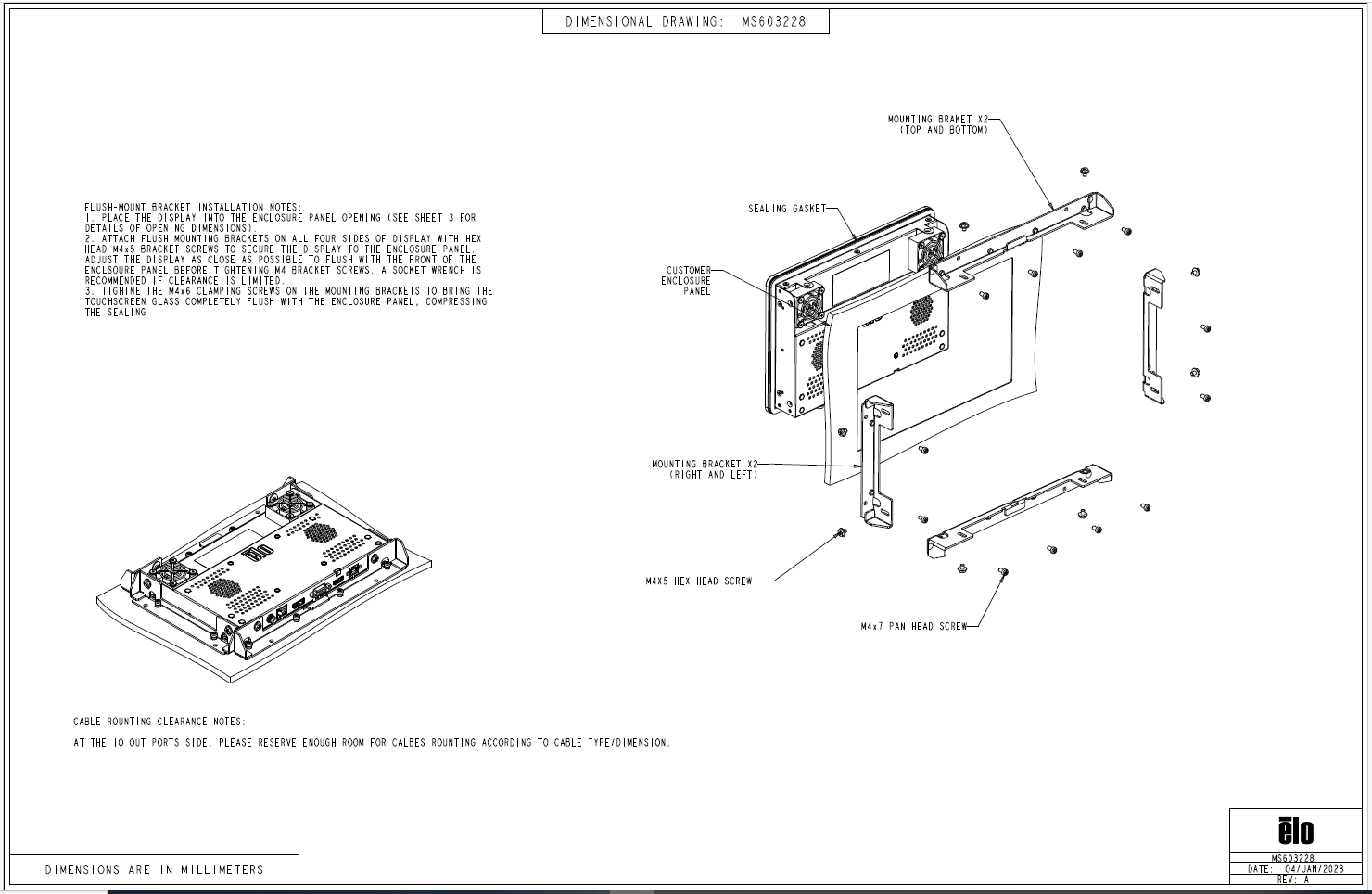

Este artigo fornece os desenhos dimensionais do monitor touch ET1099L Outdoor Open Frame

Além disso, encontre os desenhos anexados a este artigo.
