Como monto o monitor touch 1099L Outdoor Open Frame?

Este artigo descreve os vários métodos de montagem do monitor touch 1099L Outdoor Open Frame

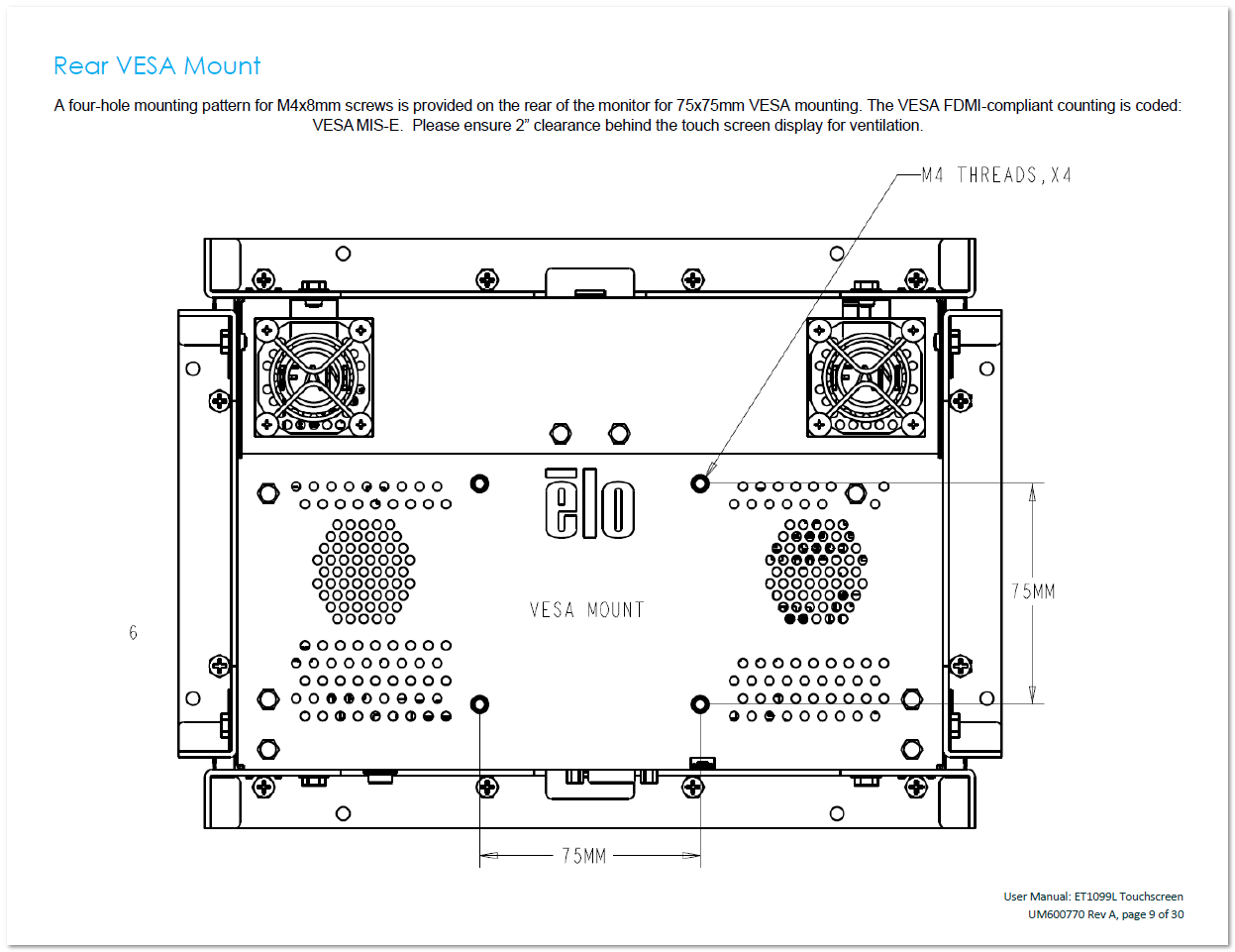

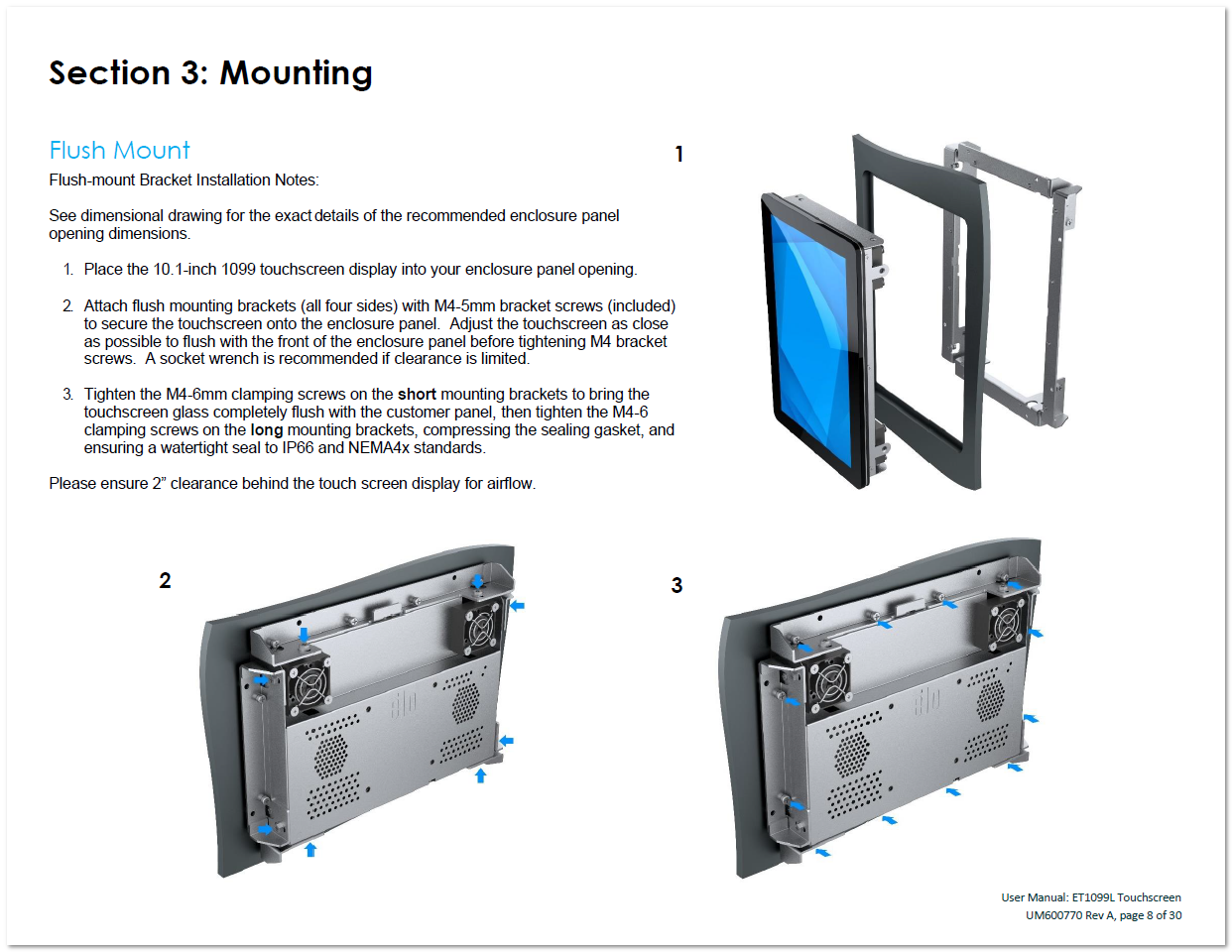

Das páginas 8-9 do Manual do Usuário:

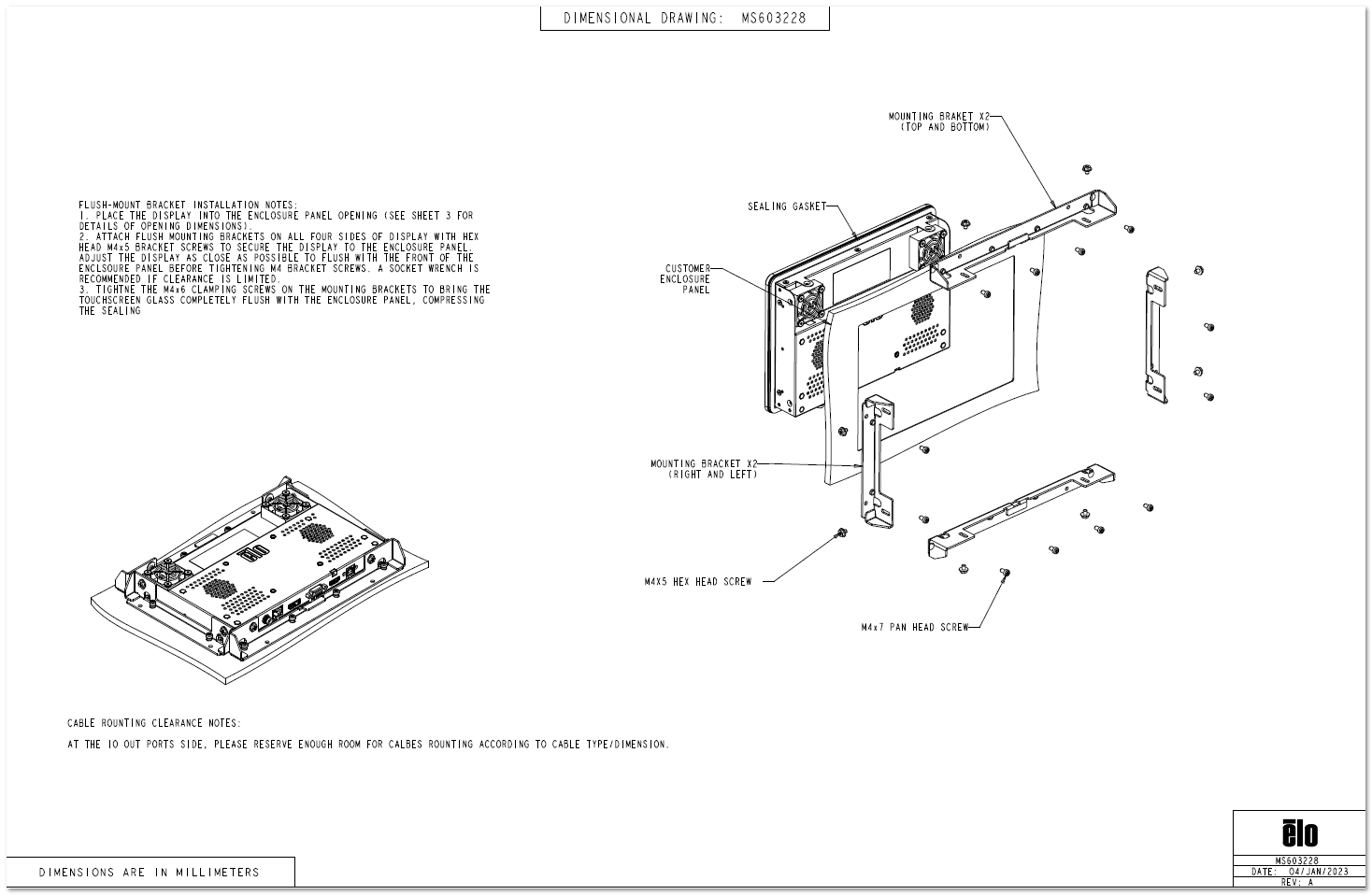

Da página 4 do Desenho Dimensional:
