Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar informações sobre o adaptador de energia para o monitor touchscreen 1099L Outdoor Open Frame?

Este artigo fornece especificações sobre o adaptador de energia para o monitor de toque 1099L Outdoor Open Frame

O monitor de toque ET1099L Outdoor Open Frame não é enviado com um adaptador de energia. A Elo oferece um adaptador de energia de 80W, 12VDC com conector de bloqueio e kit de cabo de energia regional separadamente. Para números de peça e detalhes deste kit de adaptador de energia, consulte nosso artigo de conhecimento: Kit de Power Brick e Cabo de 80W para Outdoor Open Frame

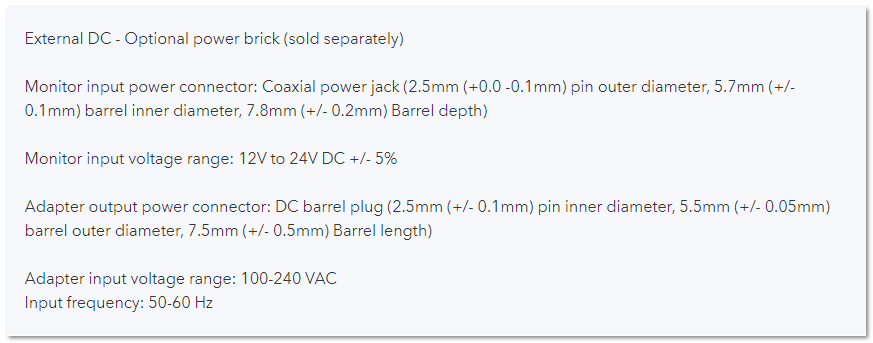

Abaixo estão as especificações elétricas e dimensões do conector:
