Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar informações sobre E641484: Kit, cabo RJ45 para DB9, EloPOS?

Este artigo lista informações para o E641484: Kit, cabos RJ45 para DB9 que estão incluídos com os sistemas EloPOS

Descrição

  • Comprimento: 900mm
  • RJ45 macho vertical para DB9 macho vertical (Tipo de Cabo Direto)

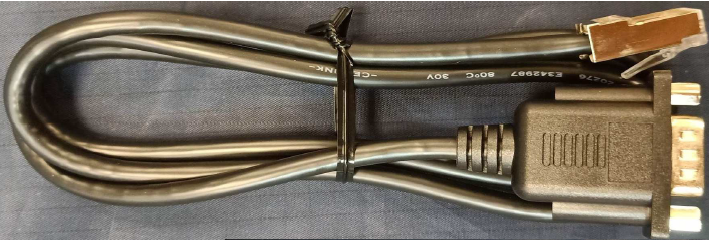

Foto

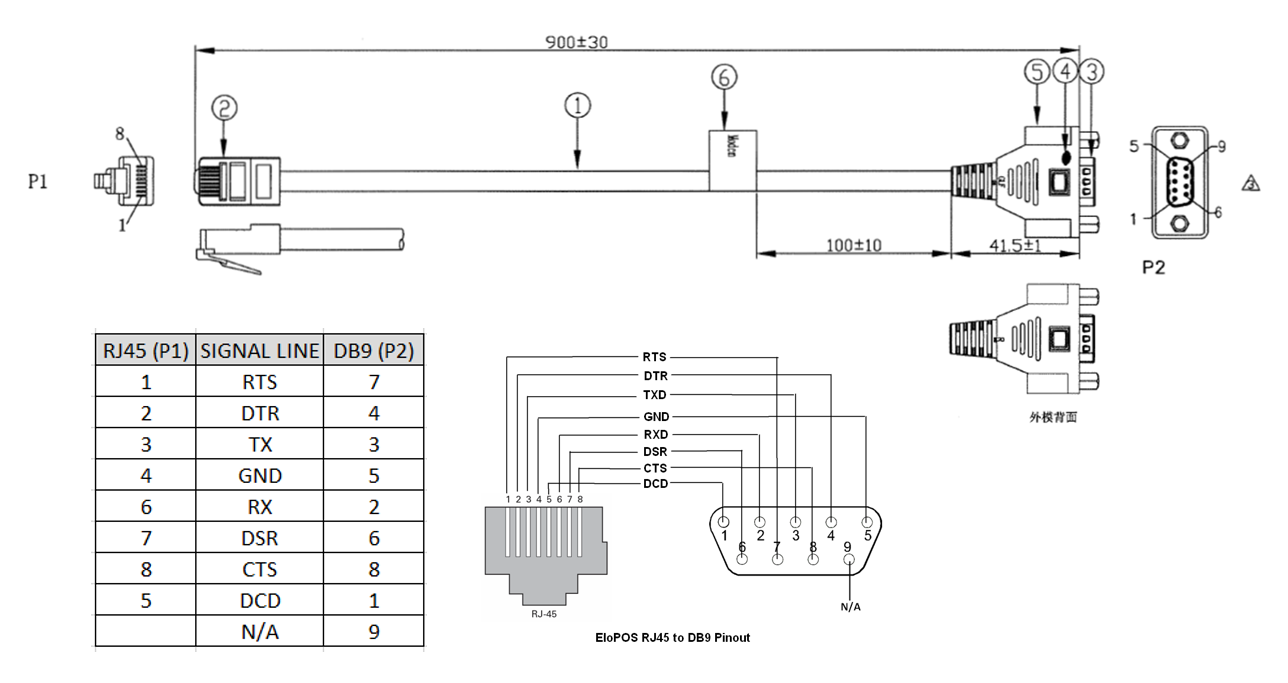

Desenho e Pinagem
