Где я могу найти информацию о P/N: E038989 Заднем креплении на столбе для серии X?

В данной статье представлена информация о P/N: E038989 настенном кронштейне с задней стороны для серии X

Ниже представлена информация о Elo P/N: E038989 настенном кронштейне с задней стороны для AIO TouchComputer серии X.

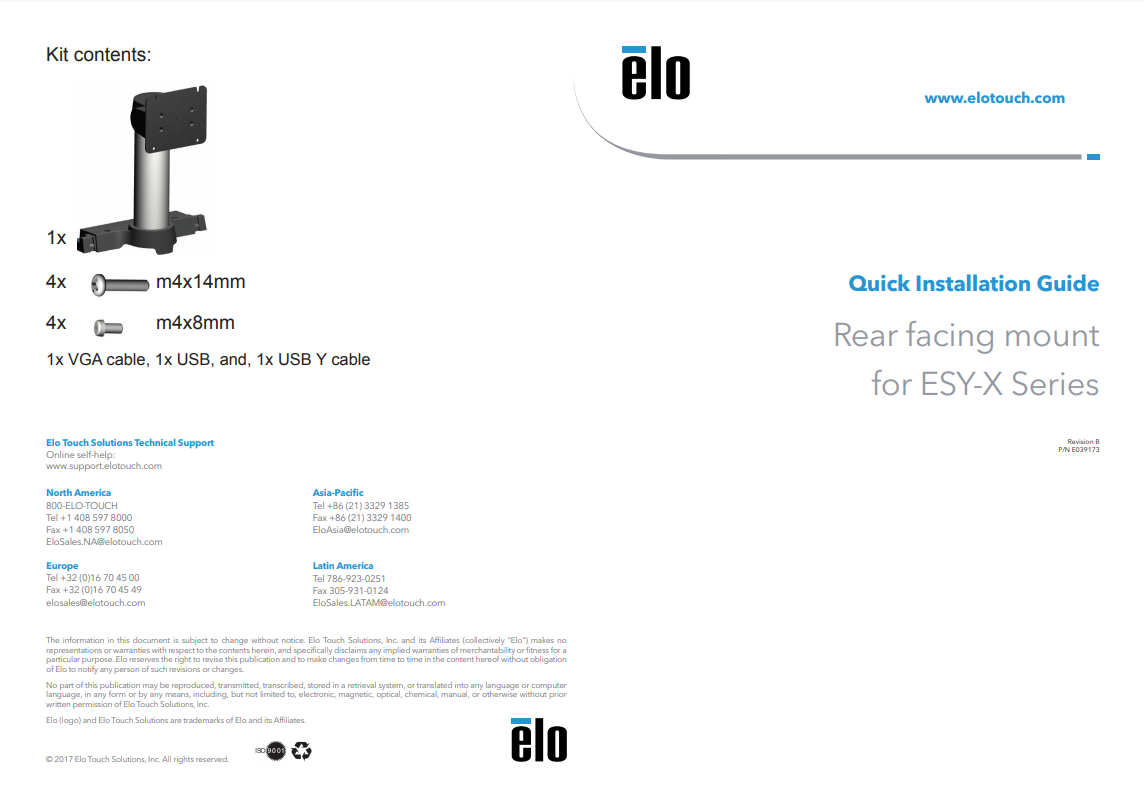

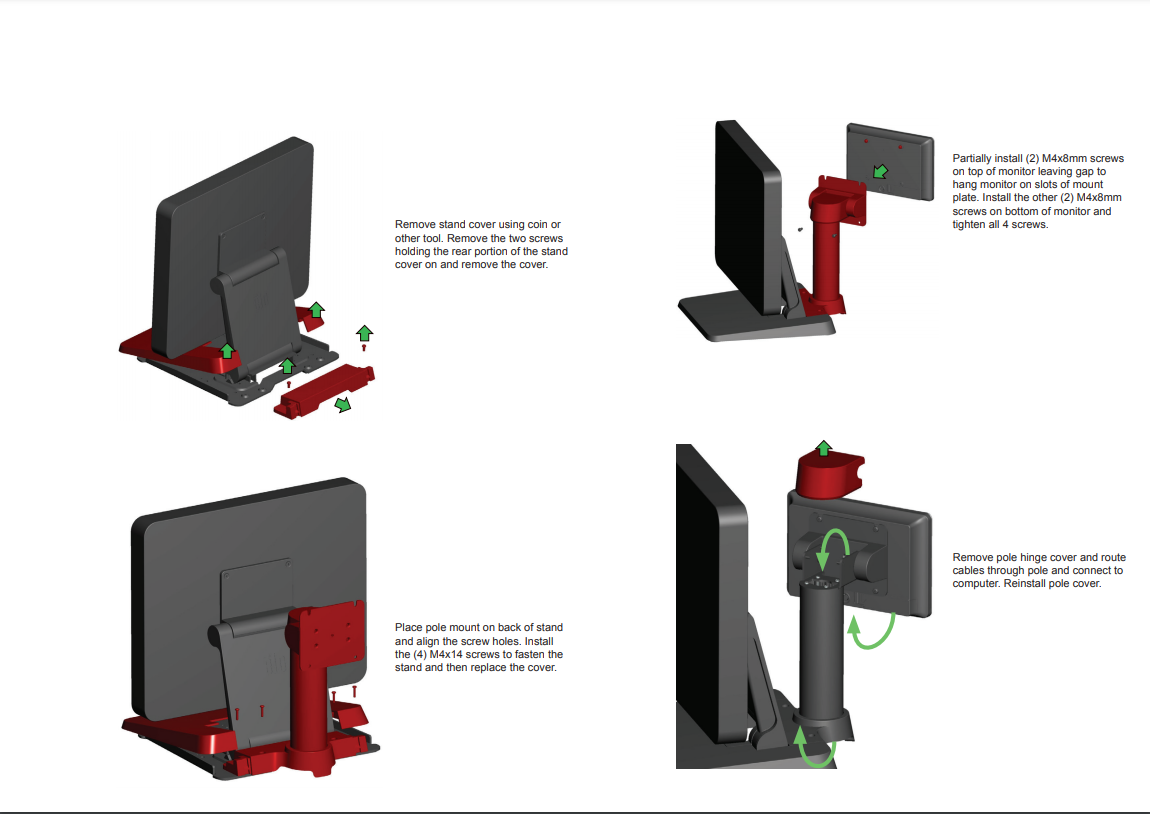

Руководство по быстрой установке:

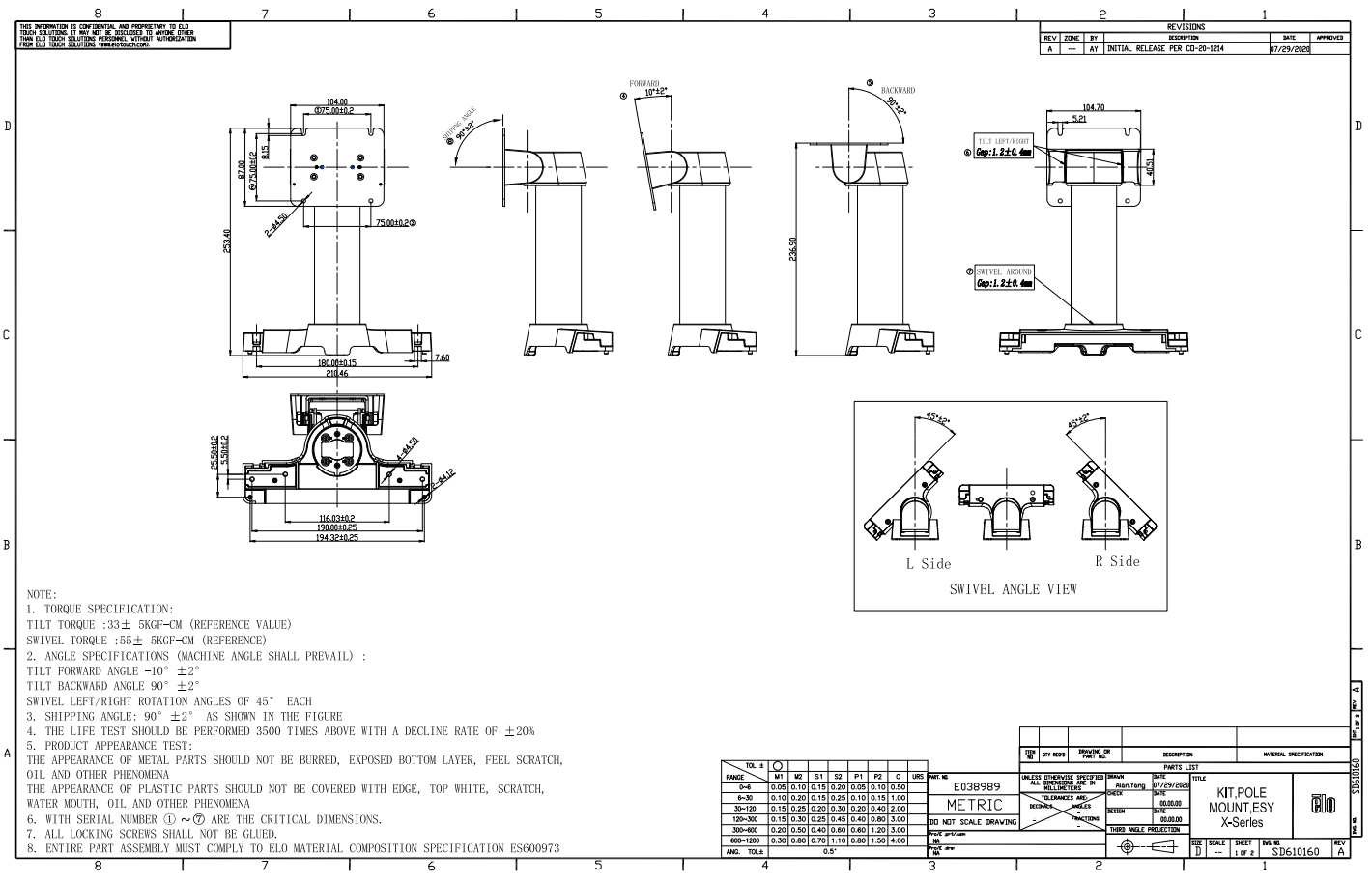

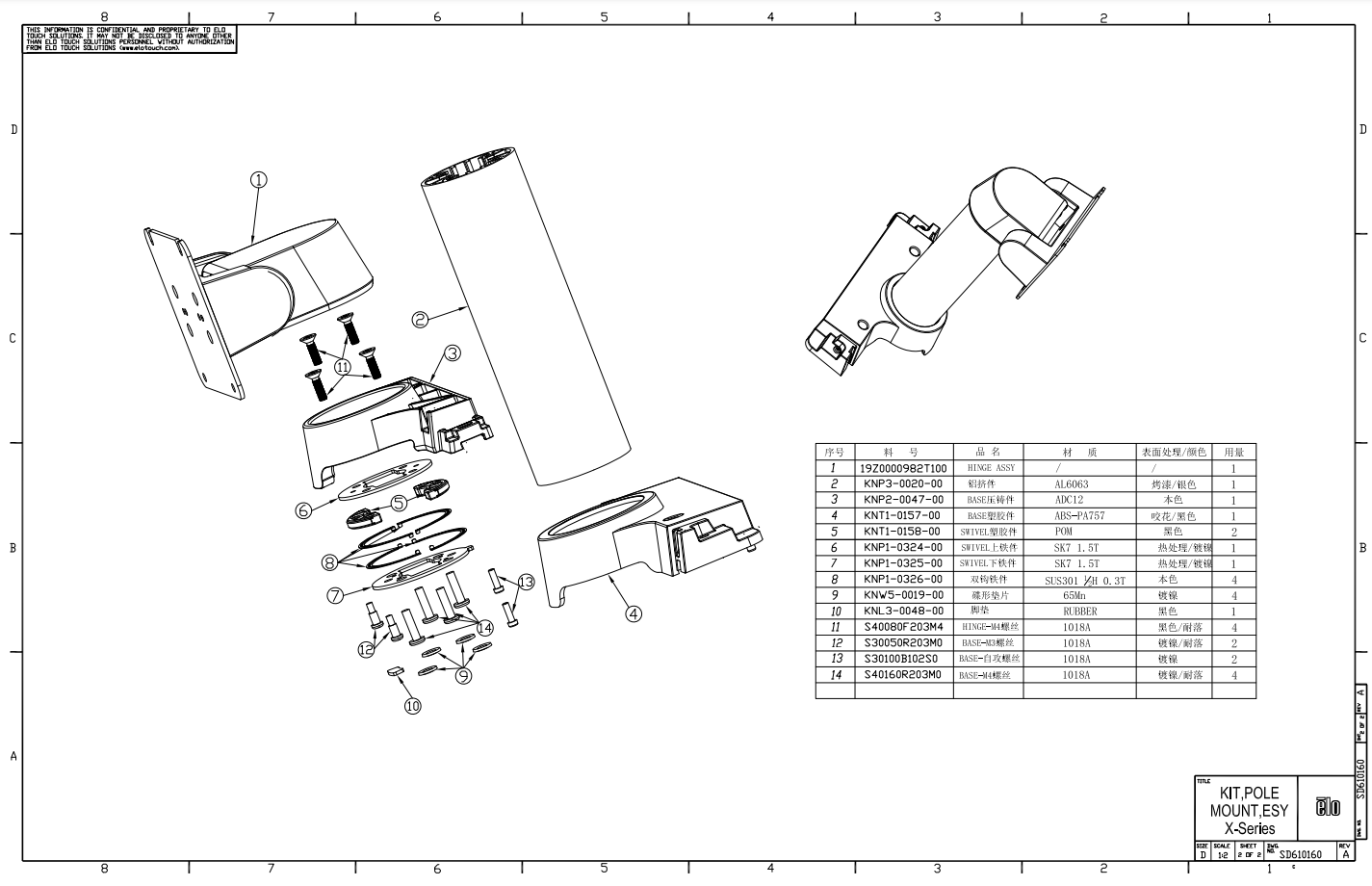

Чертежи:

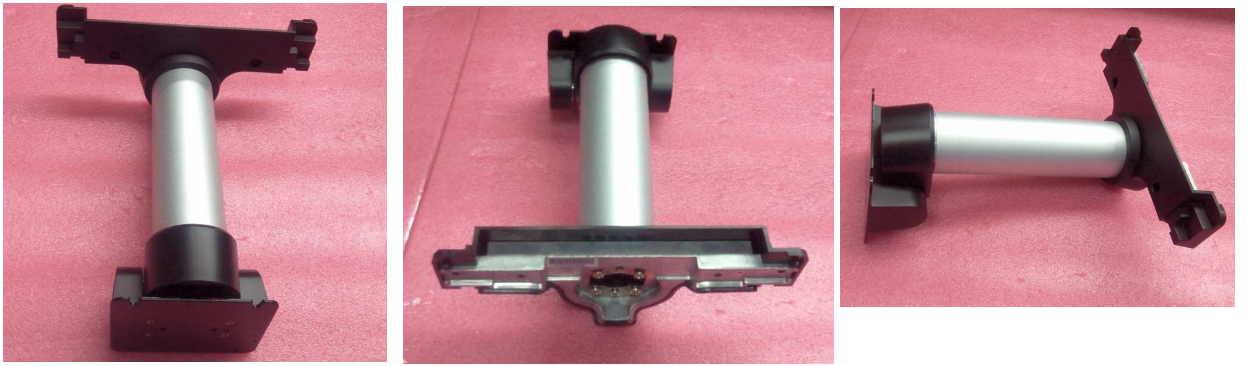

Фотографии:
