Где я могу найти размеры чертежей для сканера штрих-кодов E384627?

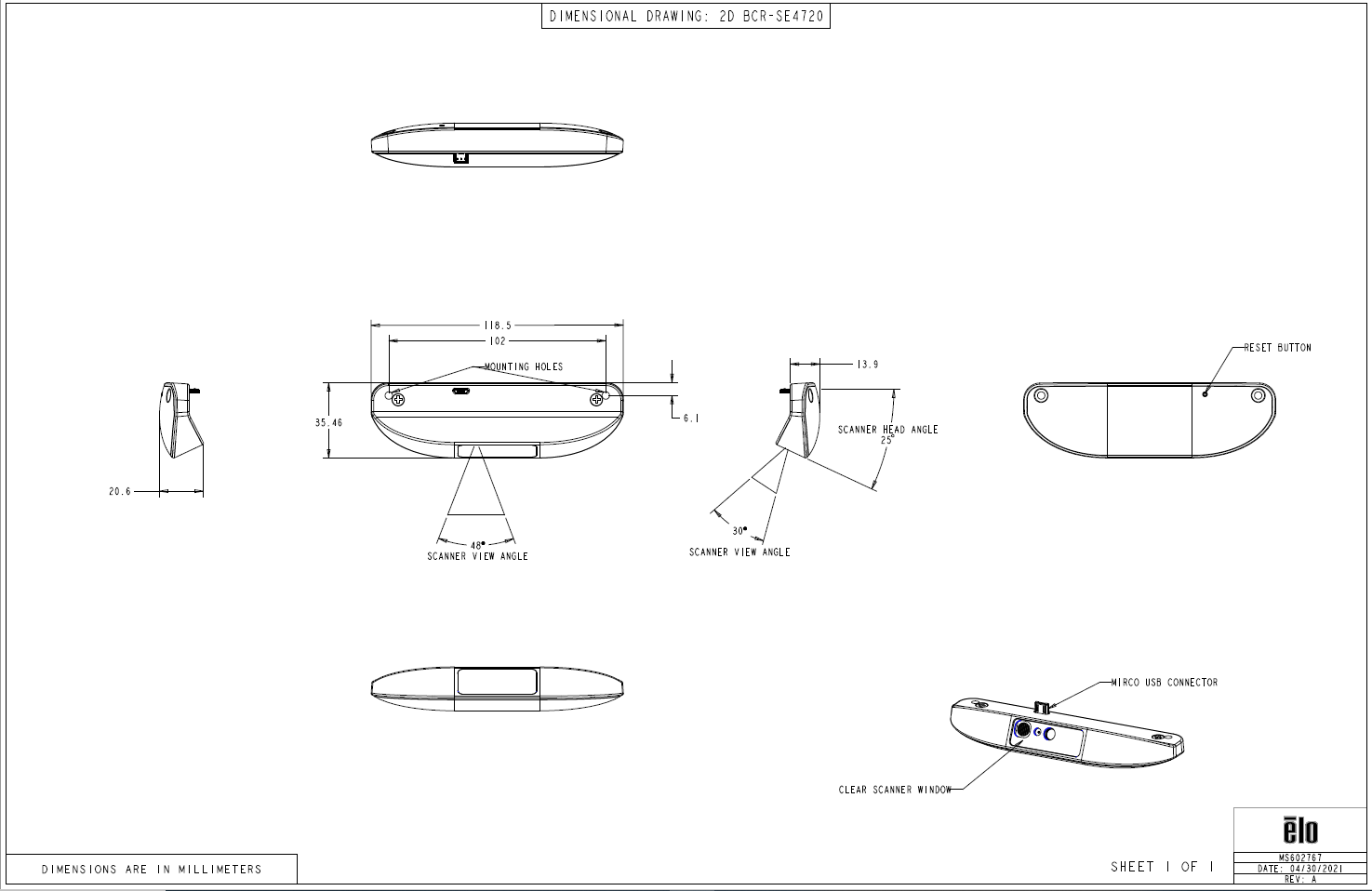

В этой статье представлено размерное чертеж для Elo P/N: E384627 - Elo Edge Connect 2D сканер штрих-кодов (SE4720-Performance)
