Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

Где я могу найти распиновку кабеля RJ45 на DB9 для устройств EloPOS?

В этой статье описывается распиновка кабеля RJ45 на DB9, который входит в комплект с устройствами EloPOS

Описание детали: 5K.47T20.501: CABLE RJ45-RS232 900MM EA15PA0-1

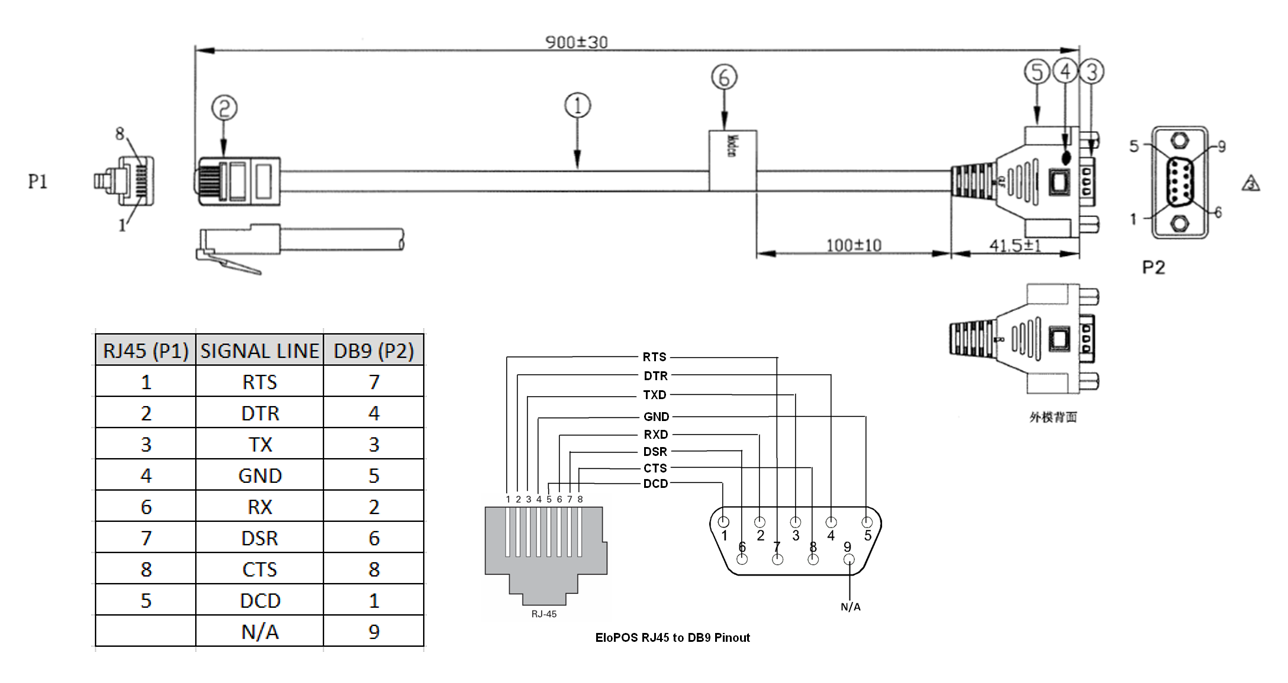

Распиновка RJ45 на DB9 для EloPOS

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
