Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

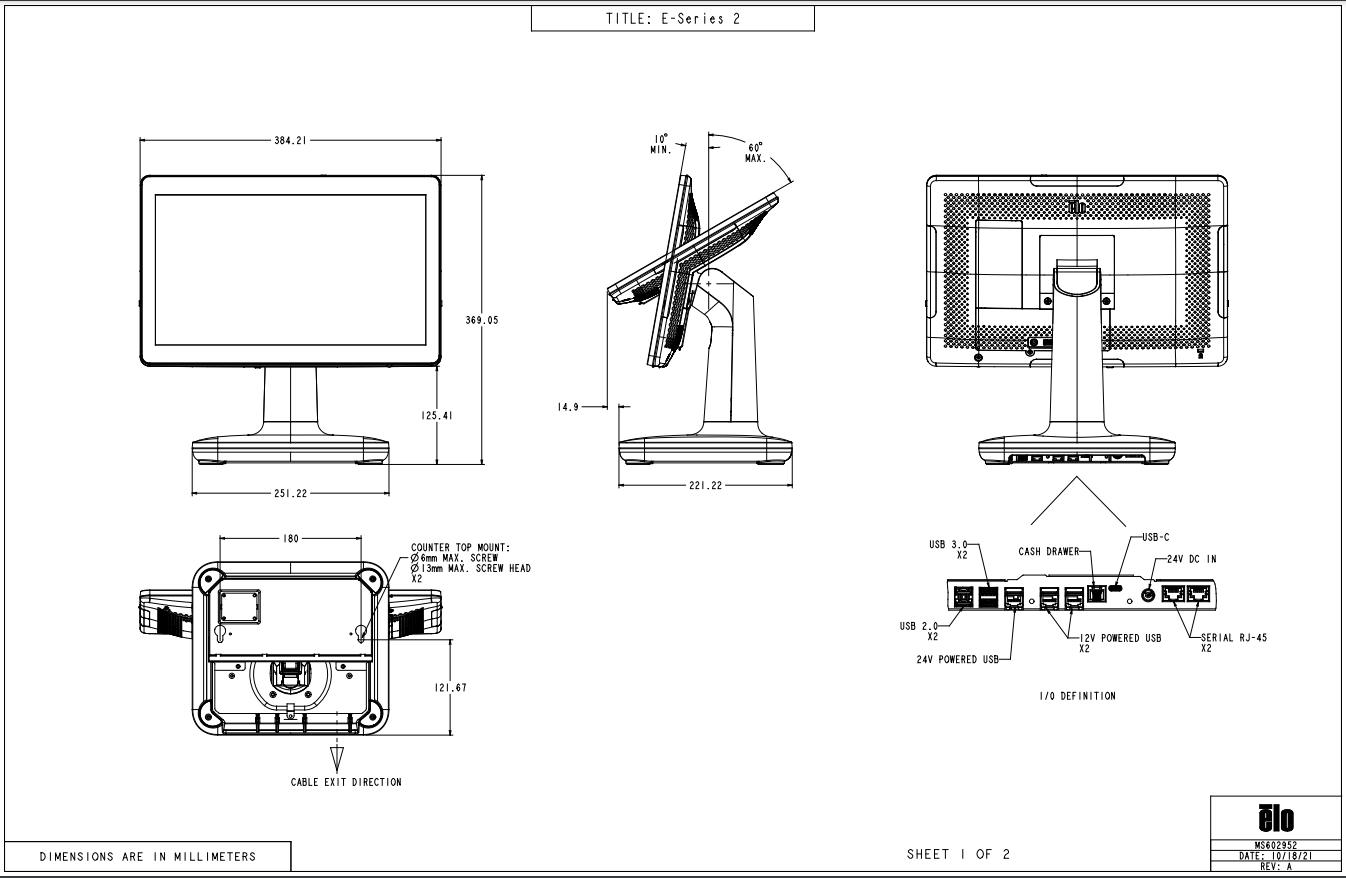

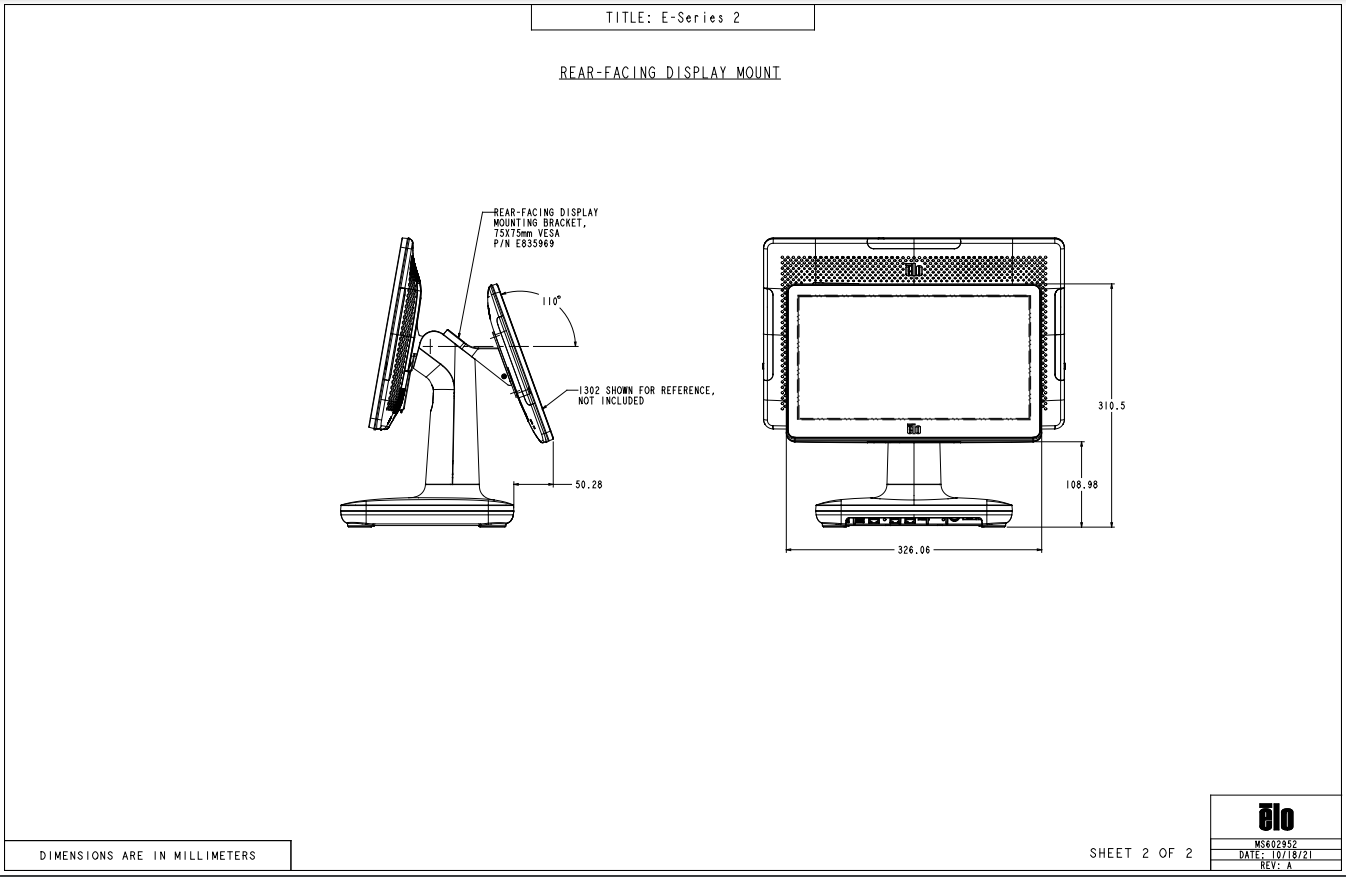

Где я могу найти размерный чертеж для устройства E-Series 2?

В этой статье представлен размерный чертеж для сенсорного компьютера E-Series 2 AIO.

Чертеж также можно скачать с сайта Elo
