Где я могу найти распиновку для E196292, X-Series RS232 на кабель DB9?

В этой статье представлен распиновка для кабеля E196292, X-Series RS232 на DB9

Ниже представлены чертеж и распиновки для П/Н: E196292, X-Series RS232 на DB9.

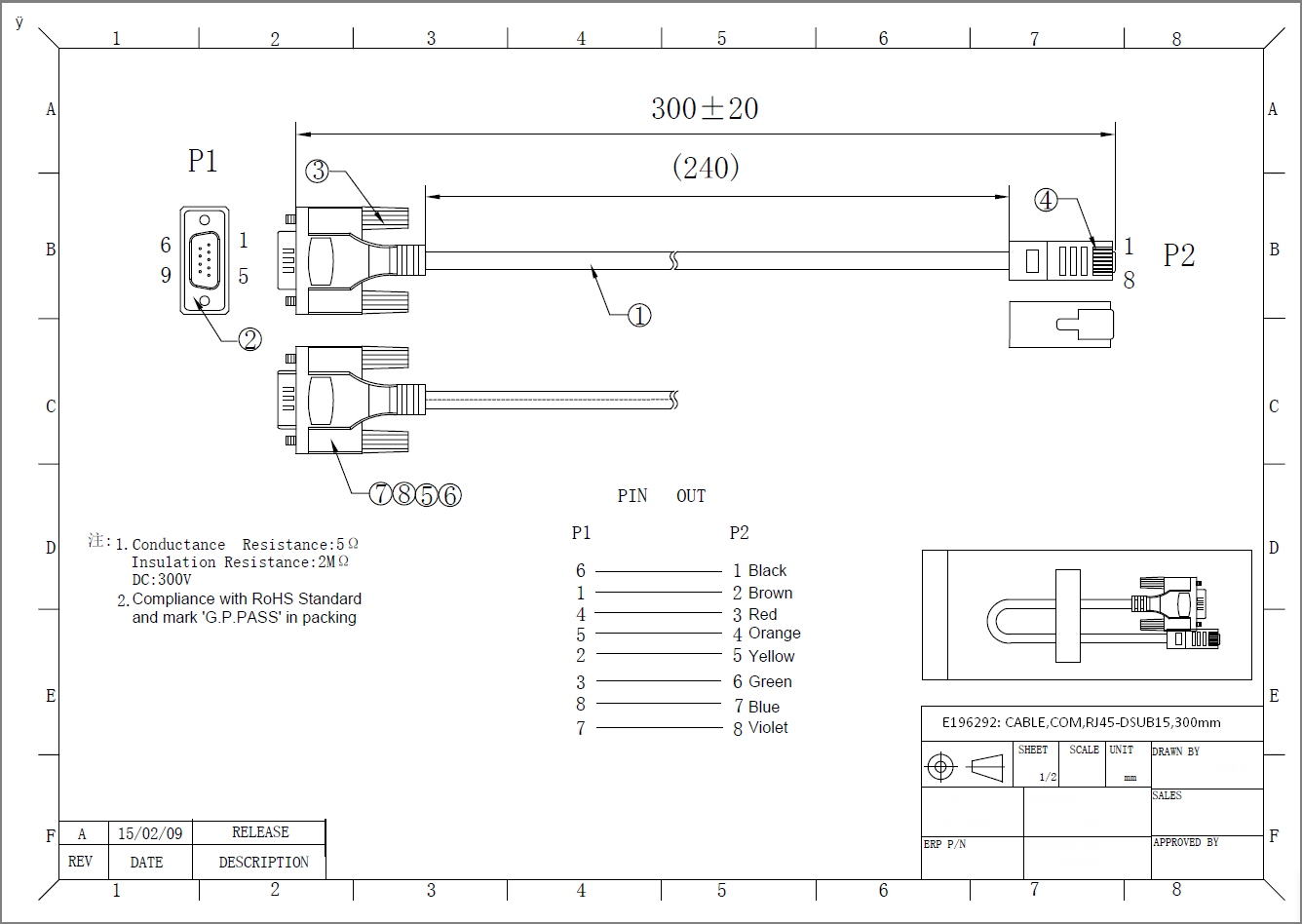

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

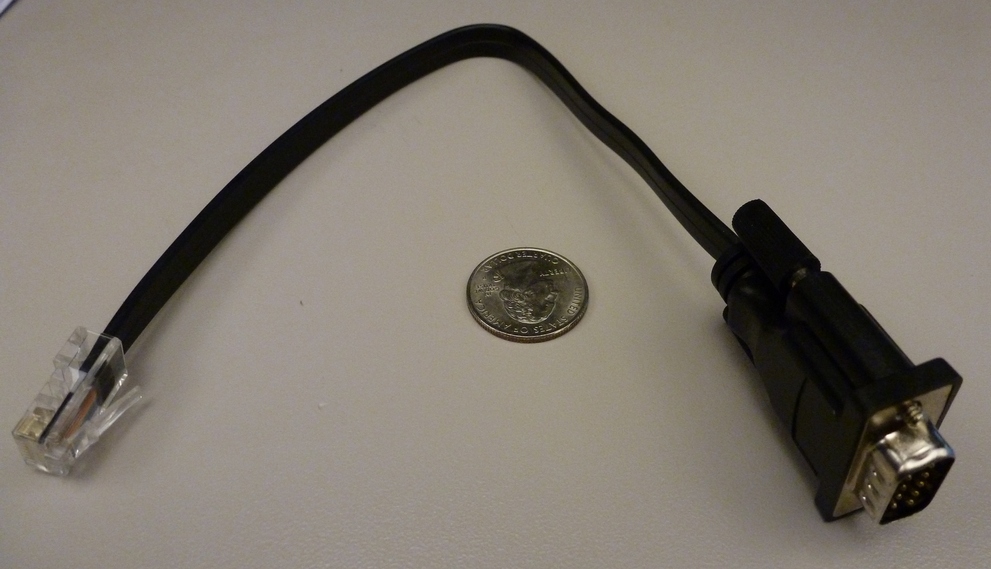

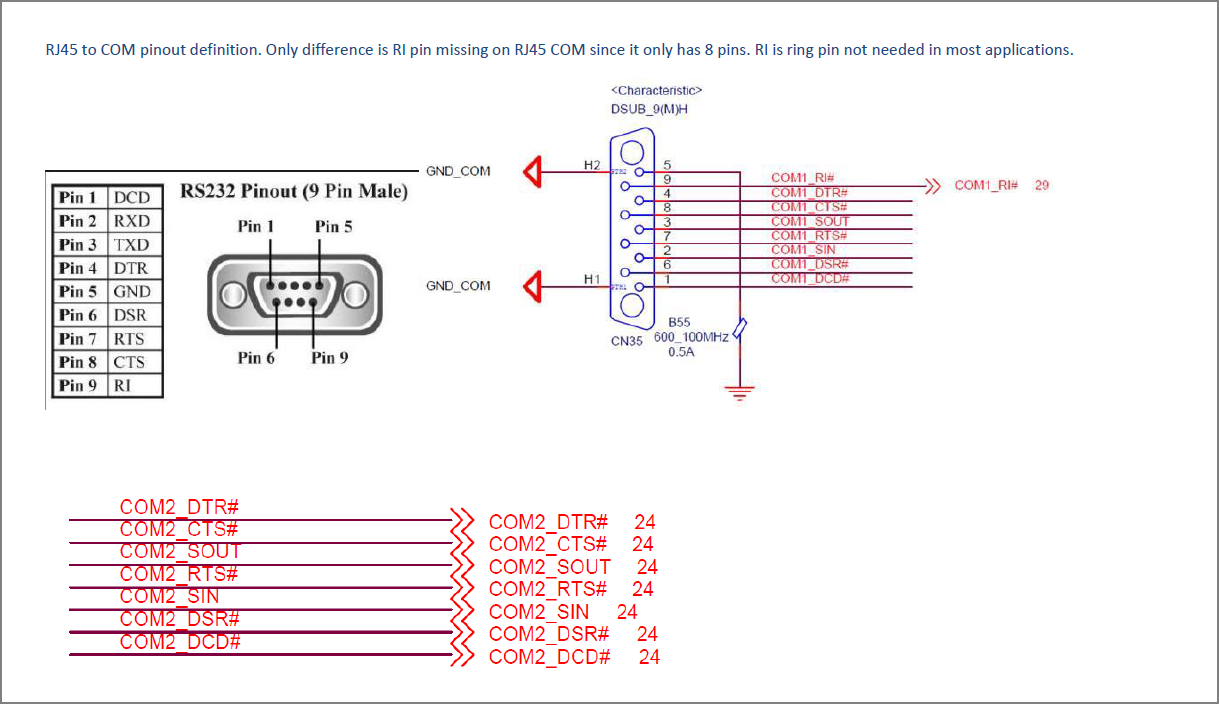

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
