Где я могу найти информацию о E075614, USB Y-кабеле для 0700L (устаревший)?

В этой статье представлена дополнительная информация о Elo P/N: E075614, USB Y-кабель для монитора 0700L

Ниже представлена информация о Elo P/N: E075614, 8-футовом USB Y-кабеле для монитора 0700L (в настоящее время устаревший)

Номер детали и описание

  • E075614: CAB-USB-XT-8.2FT-R
  • CAB-KIT-2.5 Meter Y-Cable для 0700L
  • Примечание: Коннектор на конце, который подключается к 0700L, является Mini-USB

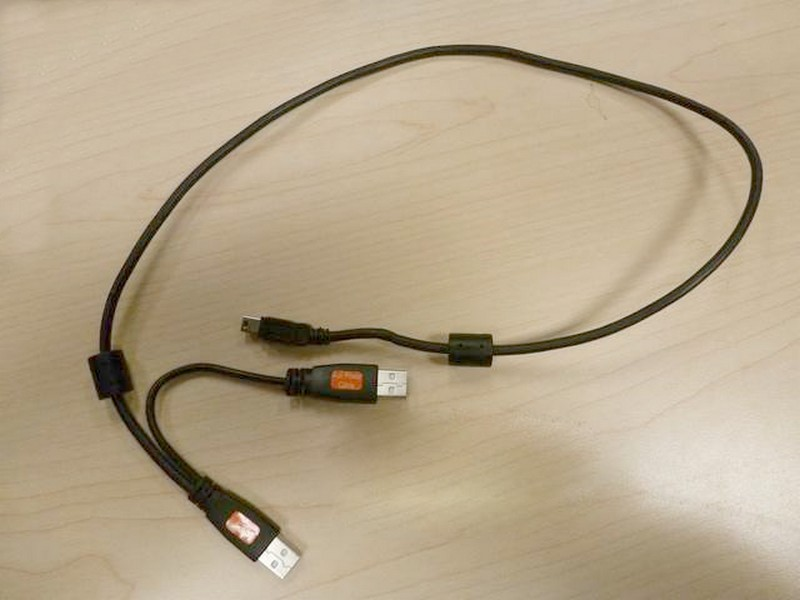

Фото

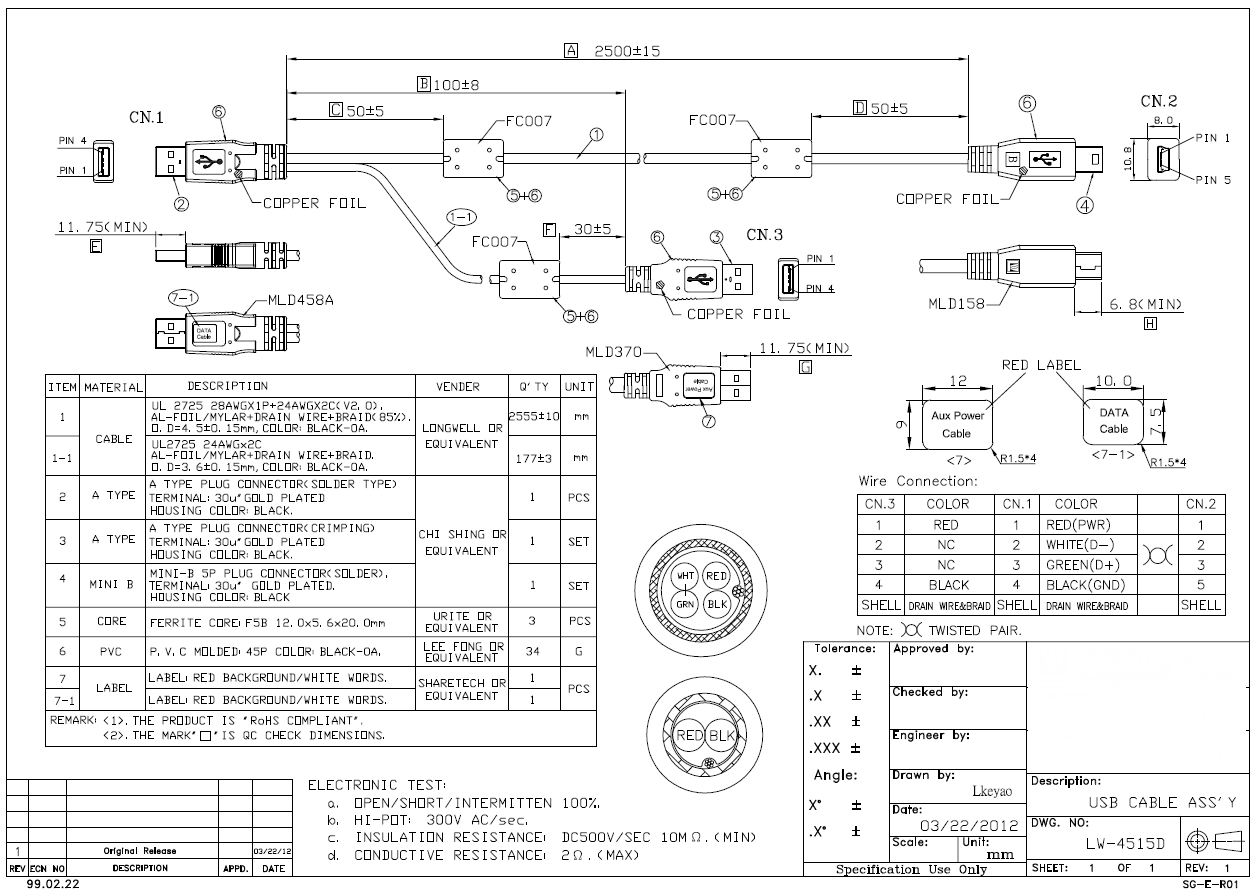

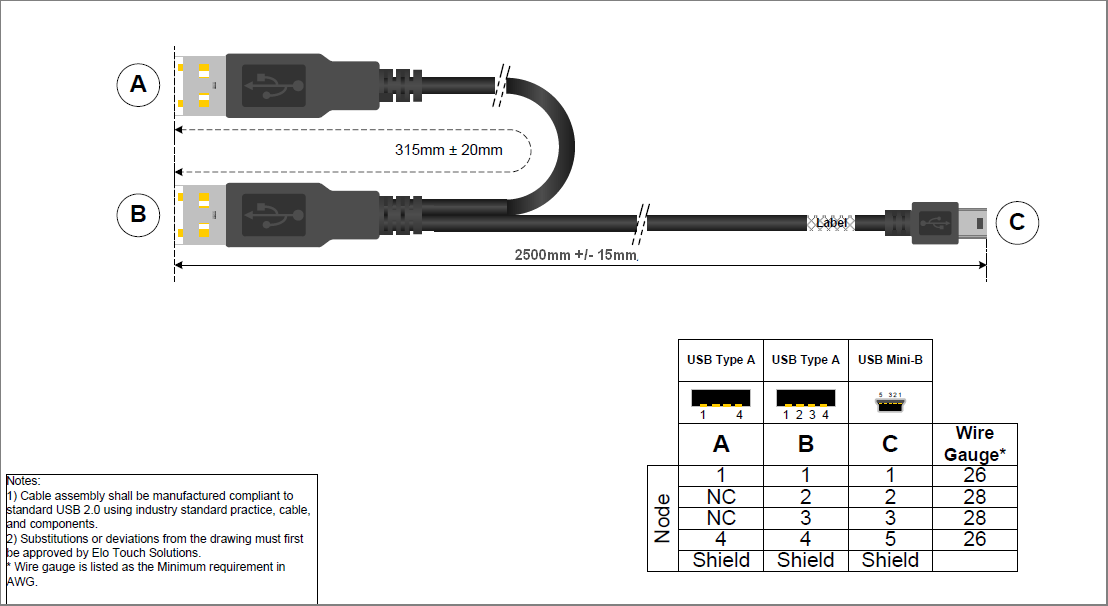

Чертеж
