Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

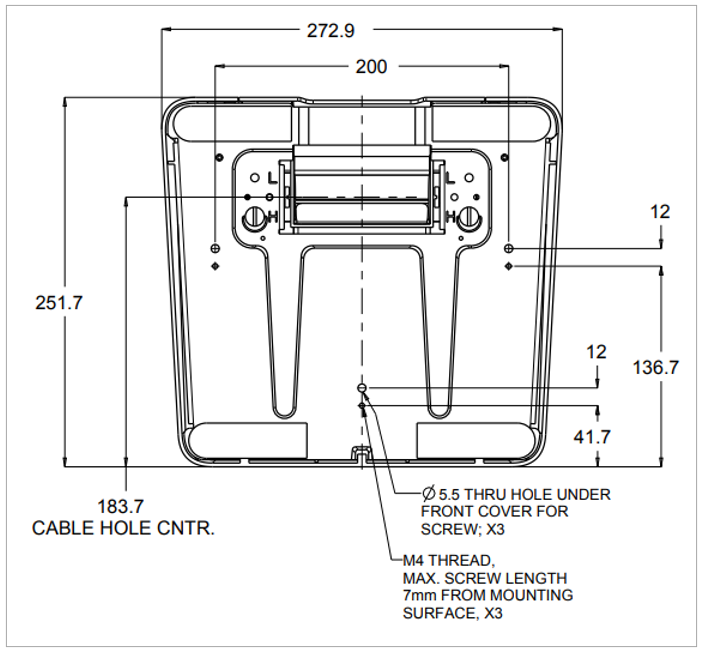

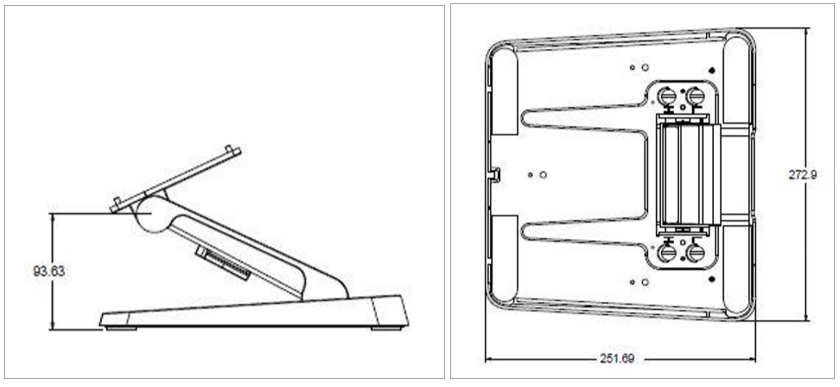

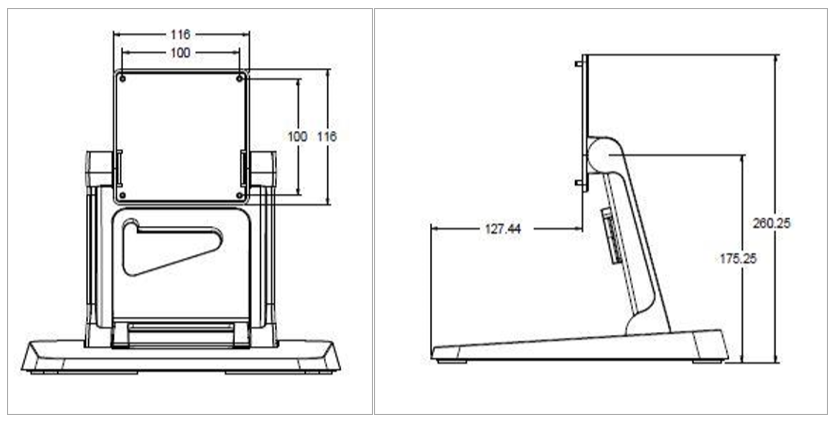

Где я могу найти размеры или чертеж стойки X-Series, P/N: E154446?

В этой статье приведен размеры и чертеж стойки серии X, артикул: E154446

Смотрите ниже размеры и чертеж стойки серии X, номер детали: E154446






Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
