Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

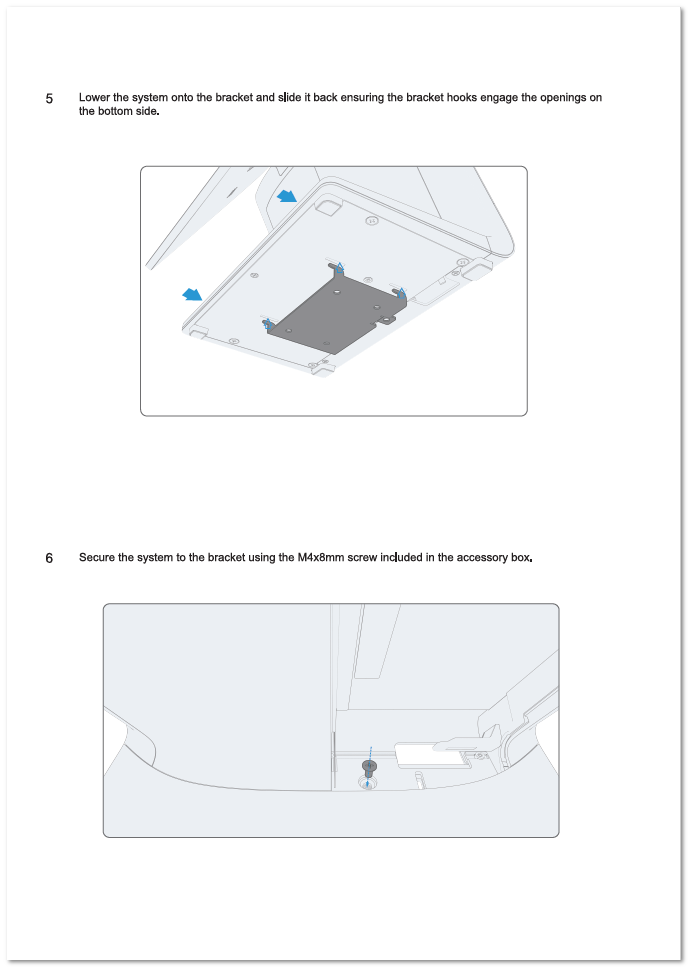

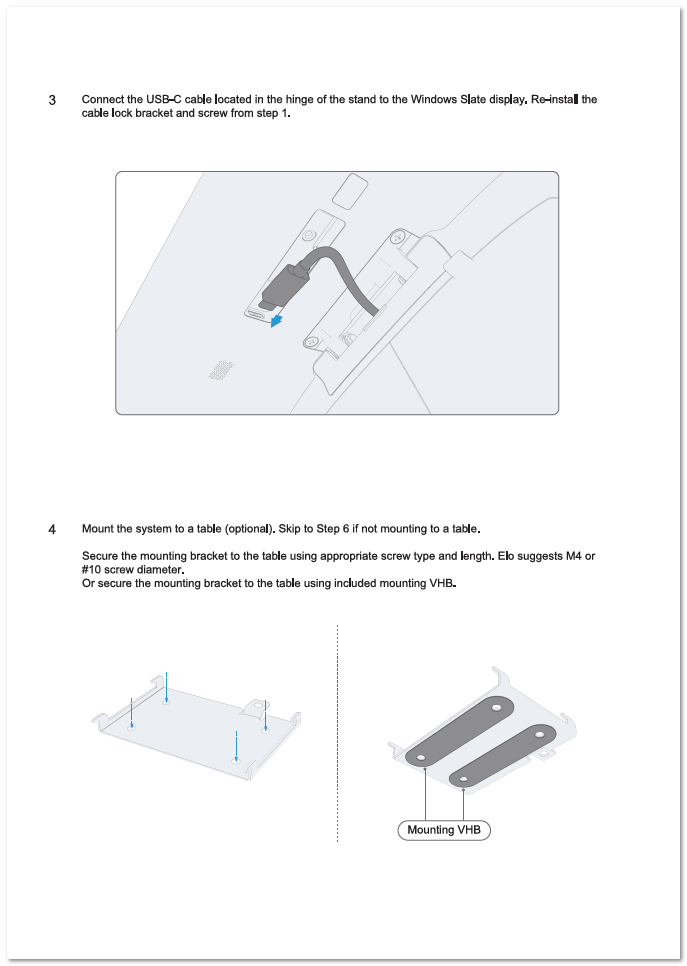

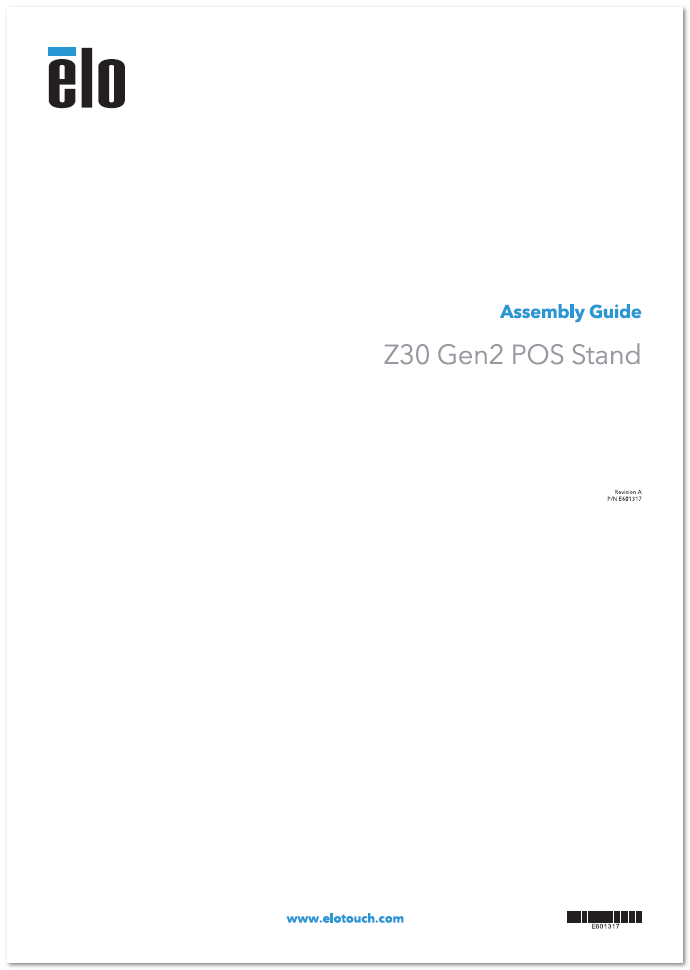

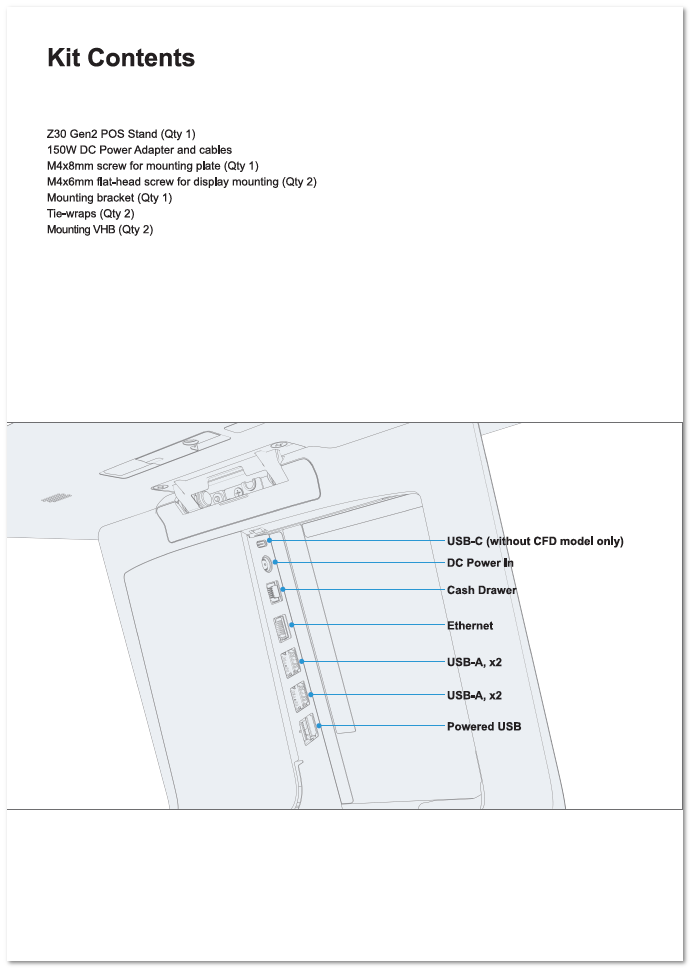

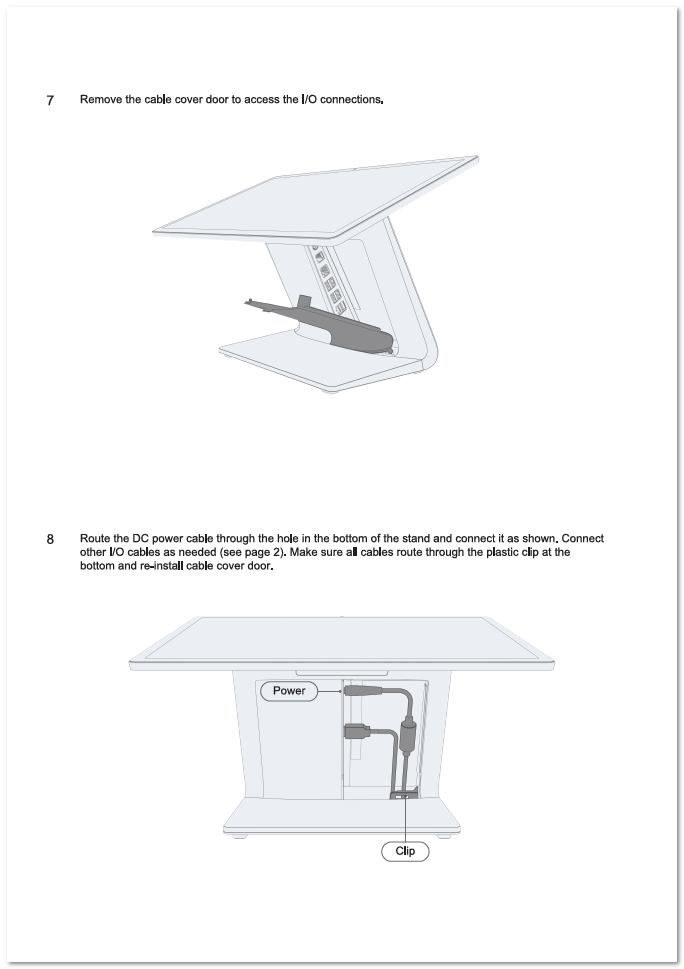

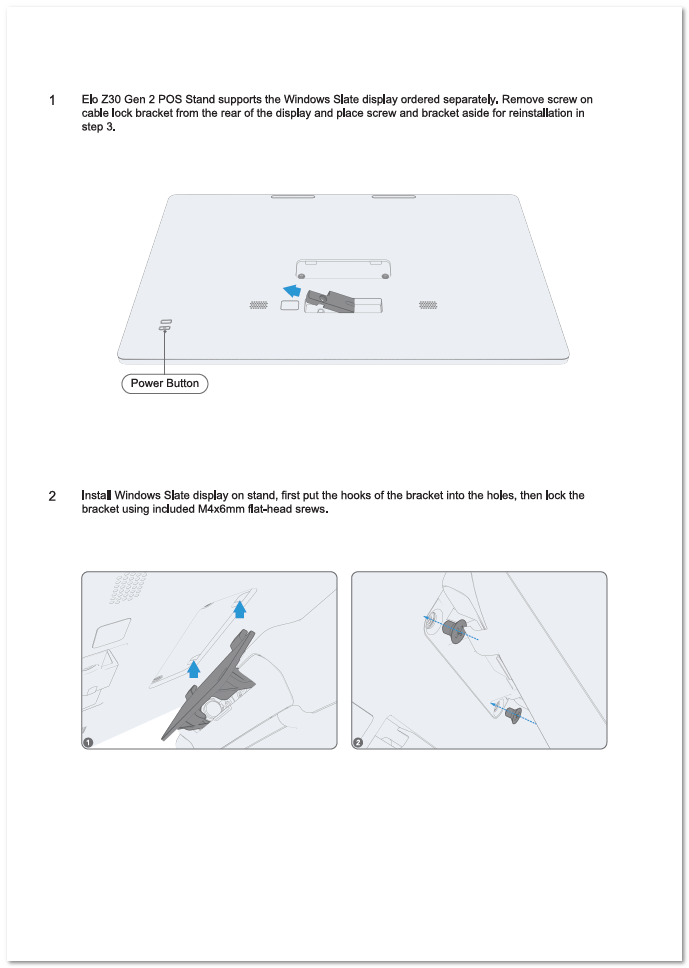

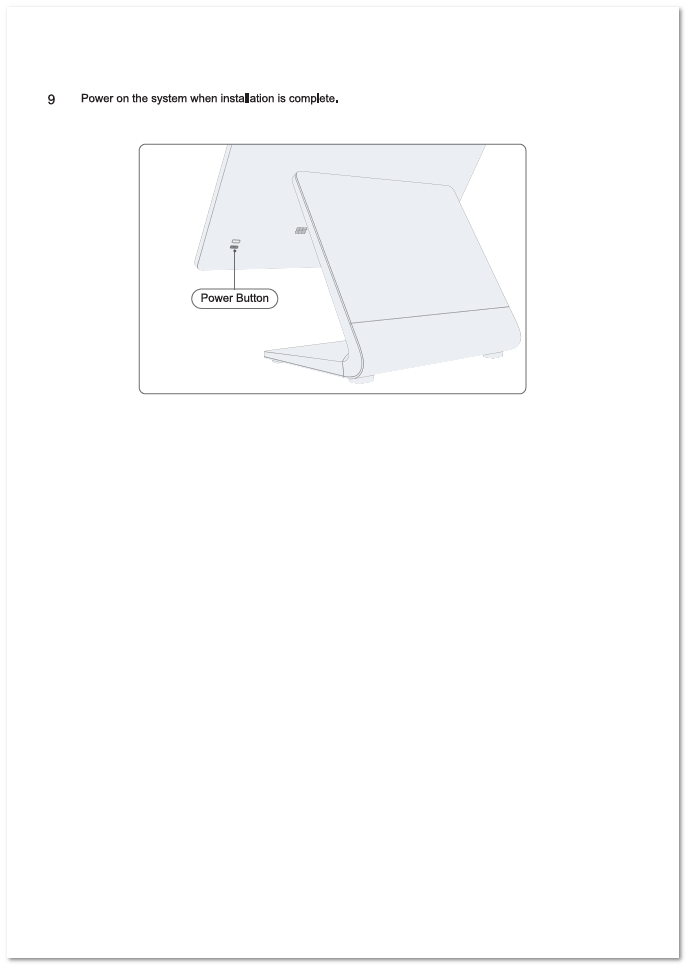

Где я могу найти руководство по быстрой установке (QIG) Z30 Gen. 2 с установкой на Intel?

В этой статье представлен QIG для Z30 Gen. 2 с подставкой Intel

Применимые номера частей:

  • Подставка Z30 POS без CFD - E767561
  • Подставка Z30 POS с CFD - E768749


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
