Где я могу найти размерное чертеж для 2D-сканера штрих-кодов первого поколения (E926356)?

В этой статье представлено размерное чертеж 2D-сканера штрих-кодов, номер детали: E926356

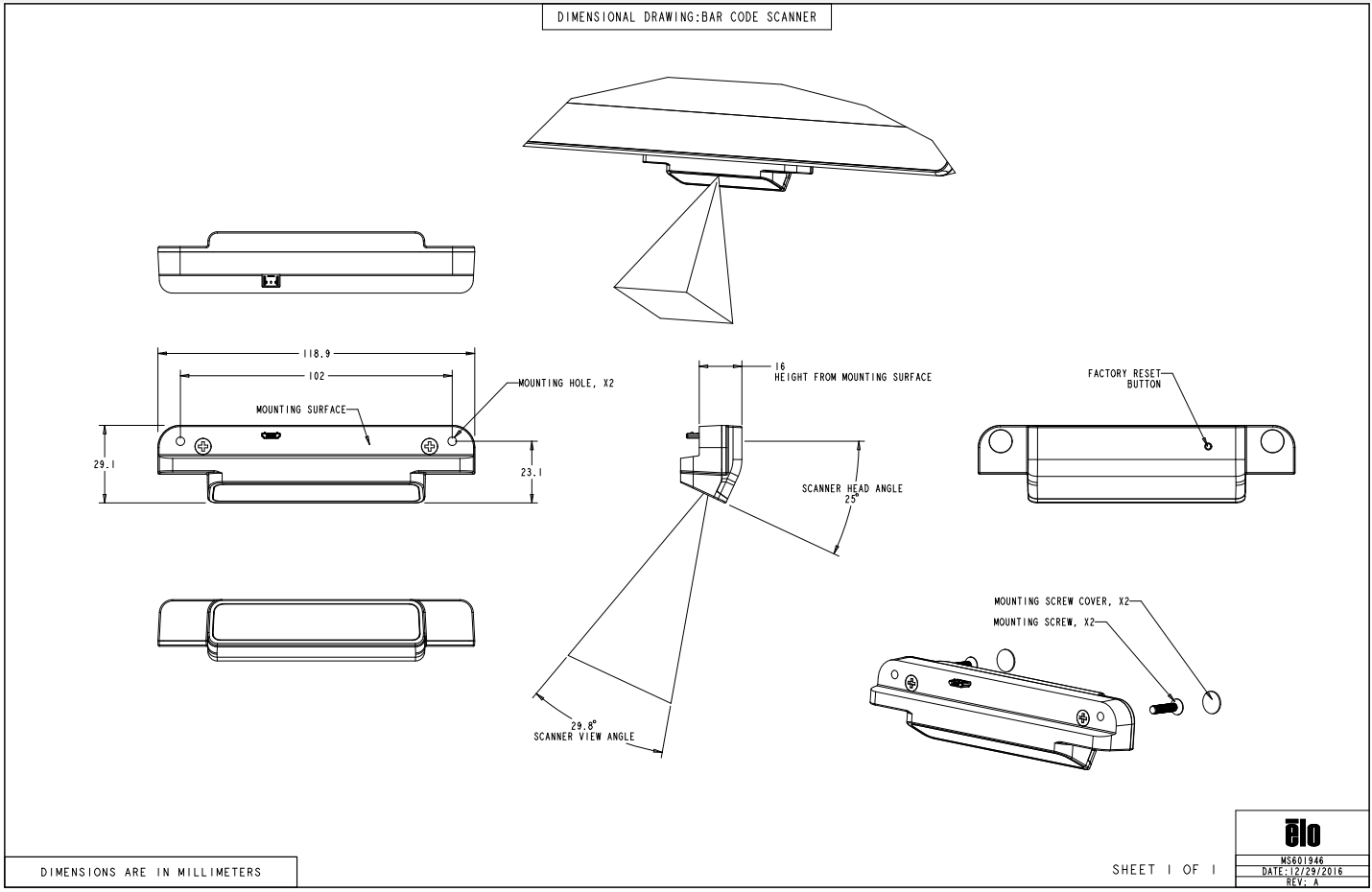

Смотрите чертеж ниже 2D-сканера штрих-кодов, номер детали: E926356

Нижеуказанный чертеж также можно скачать ЗДЕСЬ
