Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

Где я могу найти информацию о E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M?

В этой статье содержится информация о E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

Ниже представлена информация для Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

Характеристики:

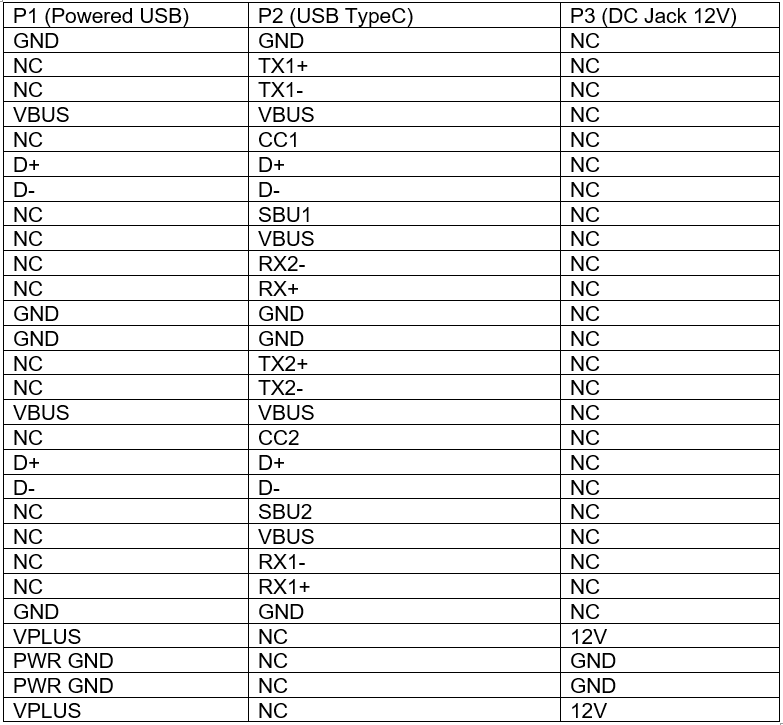

  • Кабель Power-via-USB для TypeC должен включать три типа разъемов.
    • Одна сторона (P1) должна быть стандартным мужским разъемом Powered USB
    • Другая сторона должна быть USB TypeC (P2) и гнезду DC 12V (P3)
    • Длина кабеля должна составлять 3.0 м, черного цвета

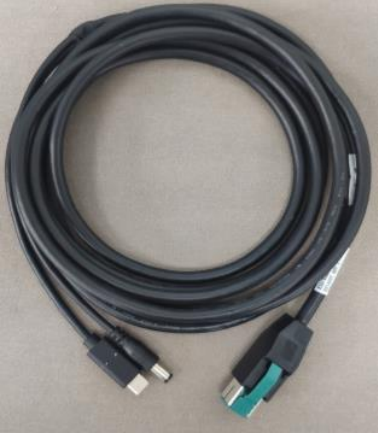

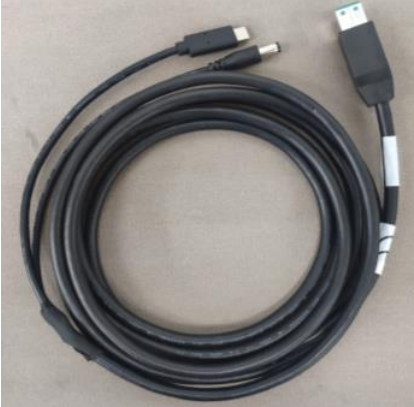

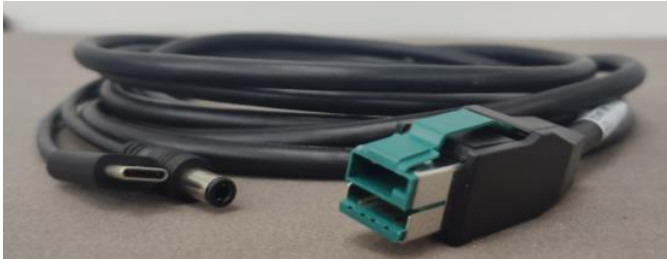

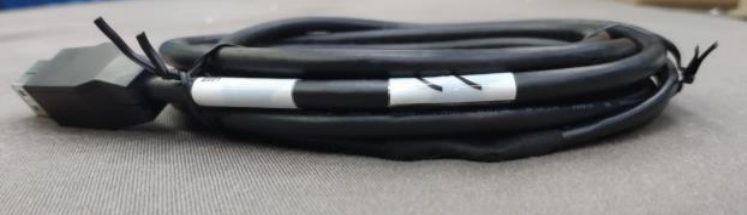

Фотографии
