Где я могу найти информацию о наборе рамки для установки в стойку Elo 2293L-2294L E462672?

В этой статье представлена информация о E462672 Elo 2293L-2294L Rack mount Bezel

E462672 Elo 2293L-2294L Rack mount Bezel подходит только для версий продукции intelliTouch, SecureTouch, AccuTouch. Этот кронштейн требует 12U Rack Space.

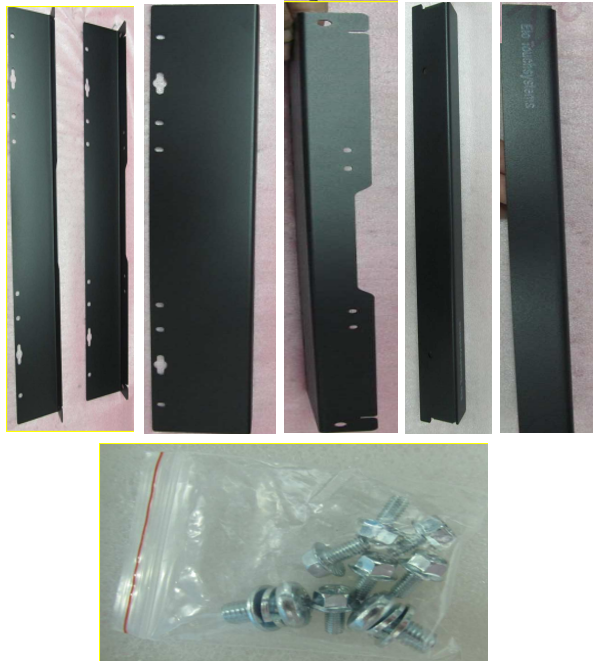

Содержимое комплекта:

  • 1x КРОНШТЕЙН, НИЖНИЙ МОНТАЖ РАКА
  • 2x КРОНШТЕЙН, БОКОВОЙ, МОНТАЖ РАКА
  • 4x ВИНТ, PHIL, PNHD С КАПЛИЧКОЙ WHRS, M6X12L-R
  • 4x ВИНТ, HXHD, PHIL, ЗУБЧАТЫЙ, M4X

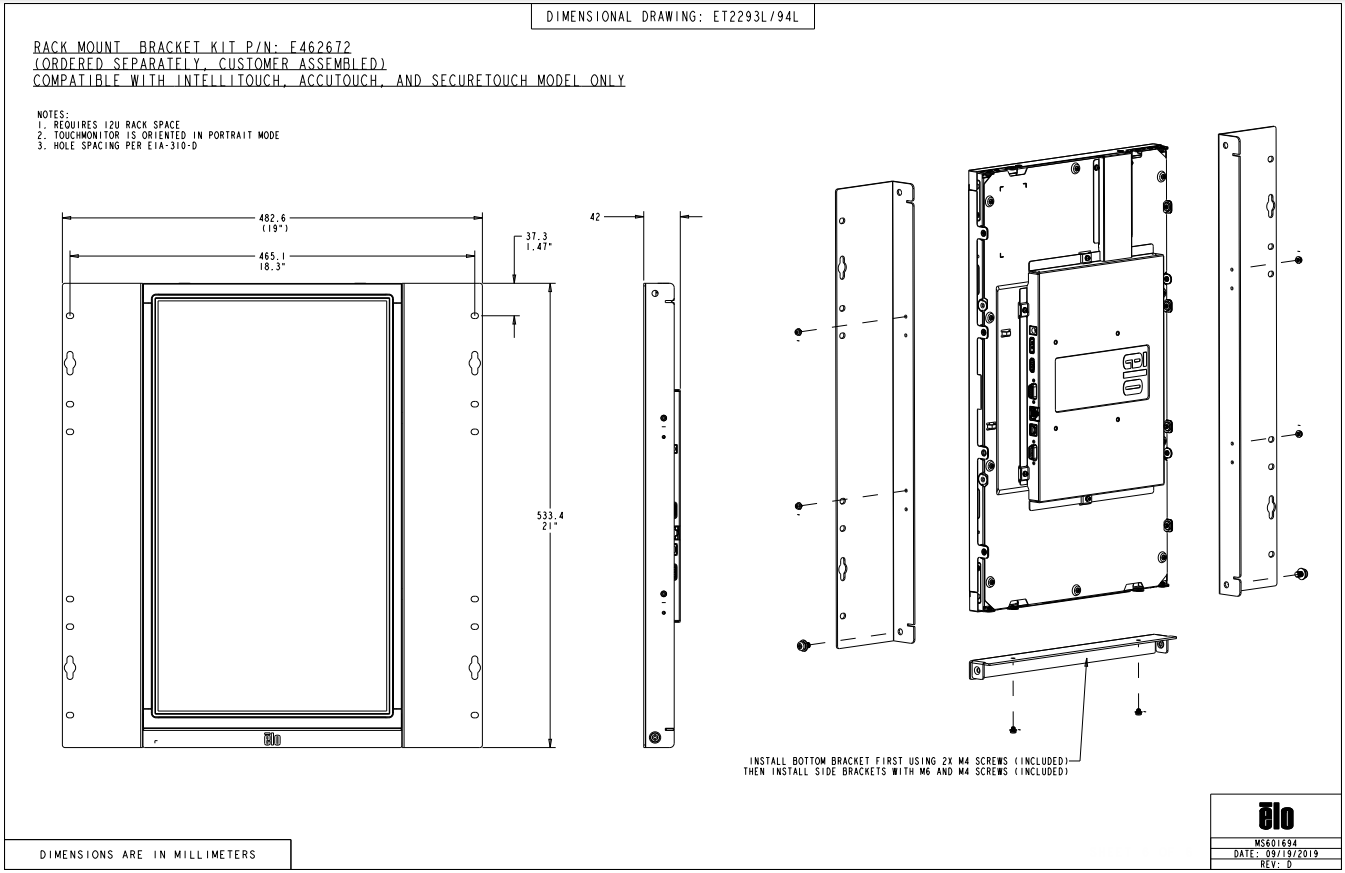

Чертеж и сборка
