Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

Где я могу найти информацию о E763022 и E752302, USB Y-кабелях с питанием 12V?

В этой статье представлены сведения о USB-кабелях с питанием 12V, продаваемых для сенсорных мониторов Elo 1002L и 1502L.

Номера деталей и описания:

  • E763022: Кабель, USB 12V Pwd, 3M, 12V питаемый USB Y-кабель 3м
  • E752302: Кабель, pUSB 12V 2.5mm 1.8m, Elo 12V питаемый USB Y-кабель 1.8м

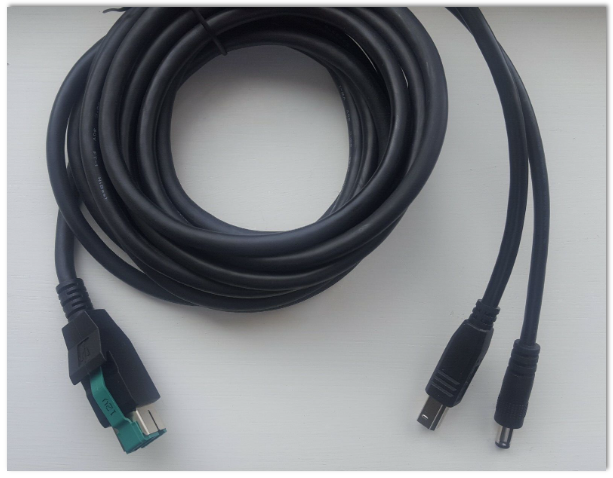

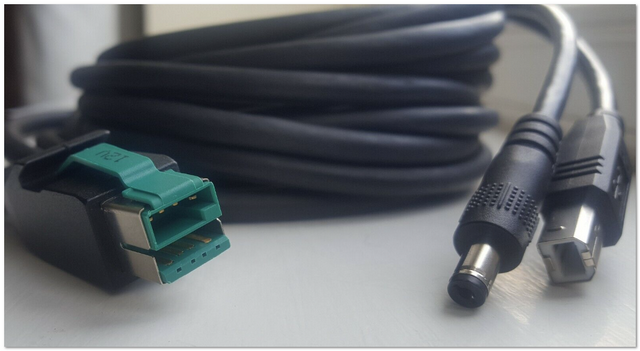

Фотографии (на фото 3м кабель. 1.8м идентичен, кроме длины кабеля).

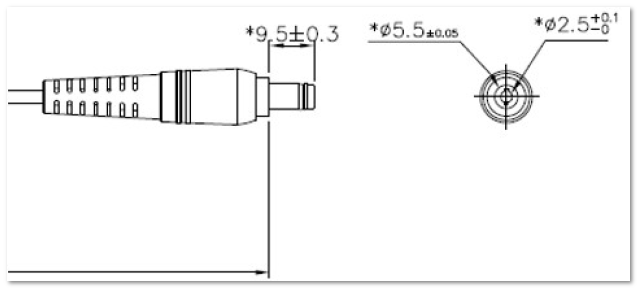

Распиновка разъема Barrel 5.5mm x 2.5mm для выхода 12V DC
