Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

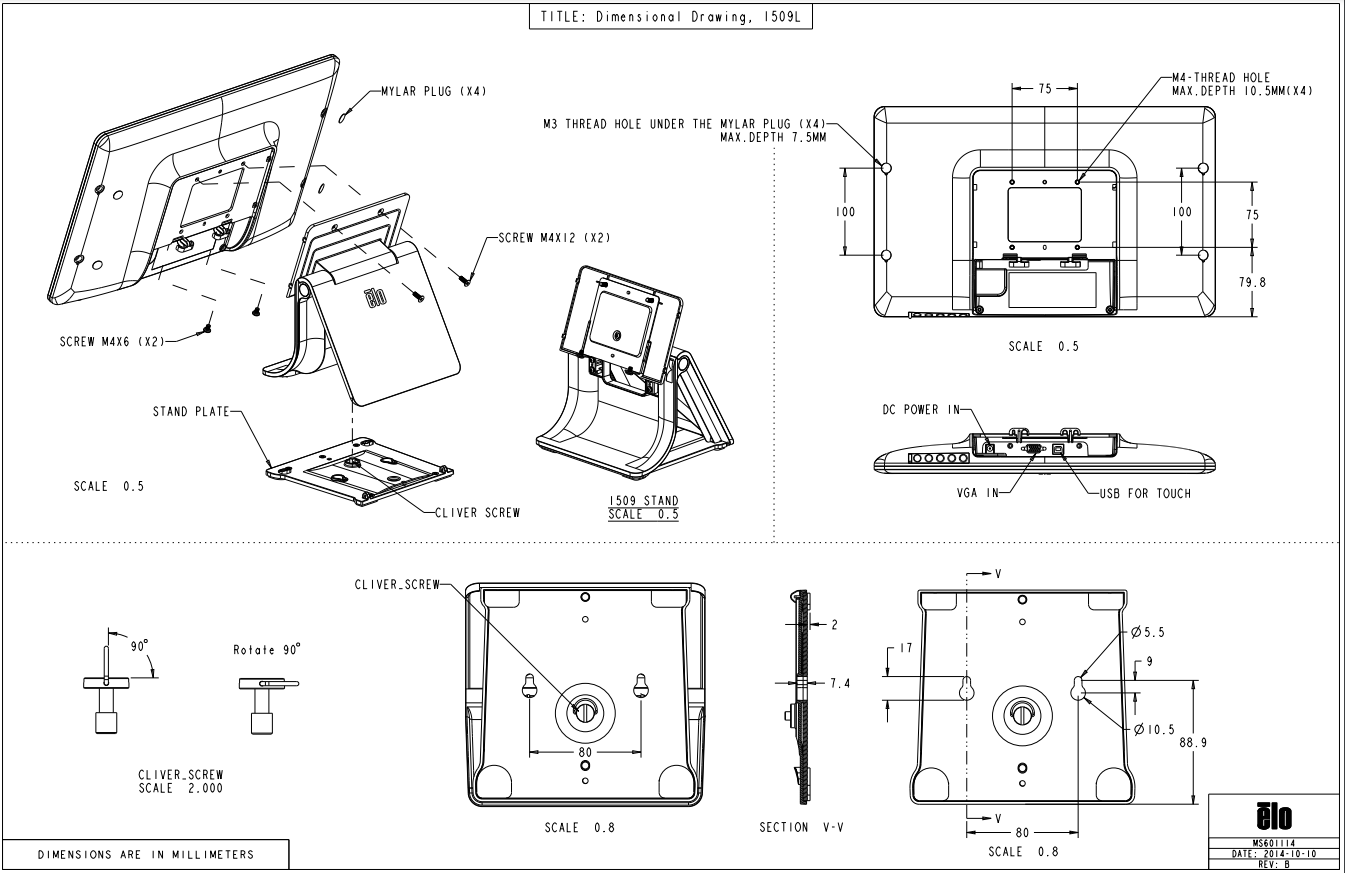

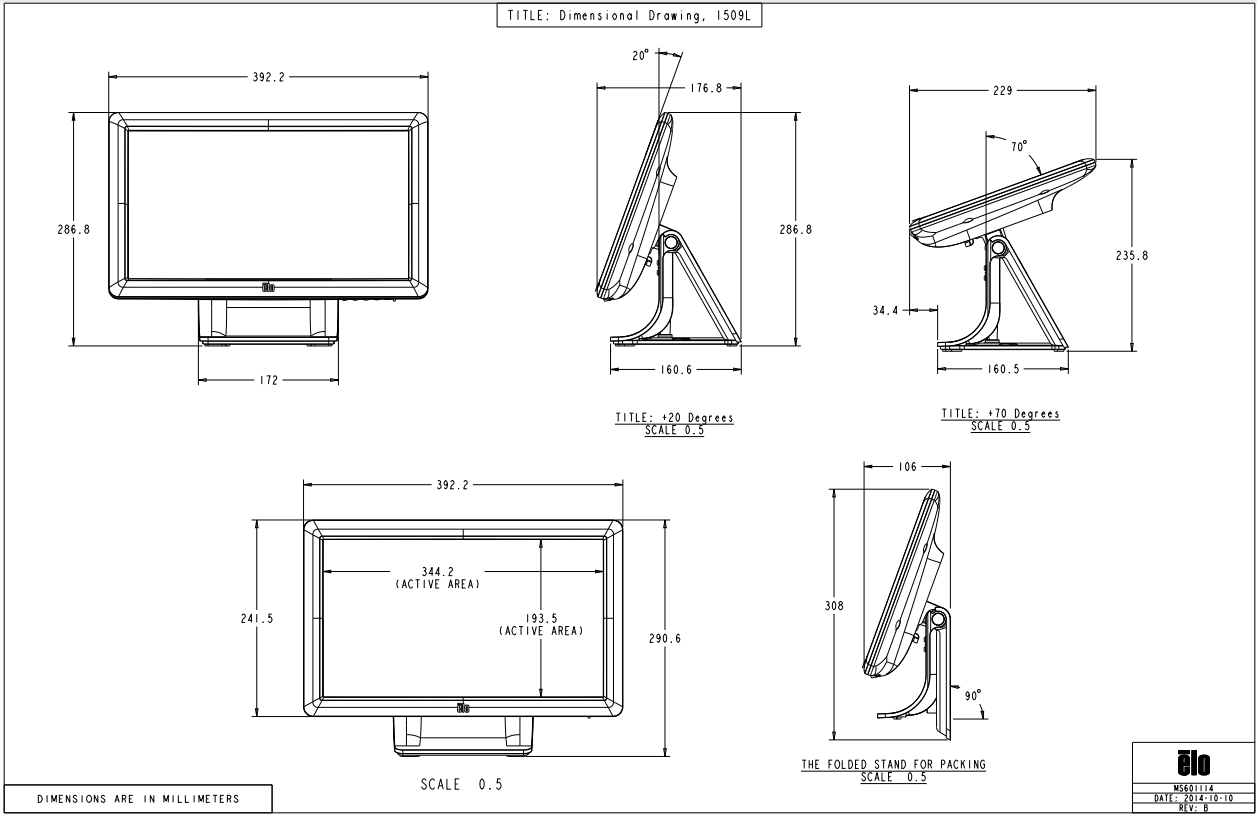

Где я могу найти чертеж E534869: ET1509L-8UWA-0-G (устаревшая модель)?

В этой статье представлены чертежи E534869: ET1509L-8UWA-0-G (продукт снят с производства 28 марта 2023 года).


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
