ECMG2, ECMG3 Sabit Disk Çıkarma Prosedürü

ECMG2 bilgisayar modülümde HDD'yi nasıl değiştirebilirim? Elo ECMG2 veya ECMG3 Bilgisayar Modüllerinde Sabit Diski (HDD/SSD) çıkarmak veya değiştirmek için aşağıdaki adımları izleyin.

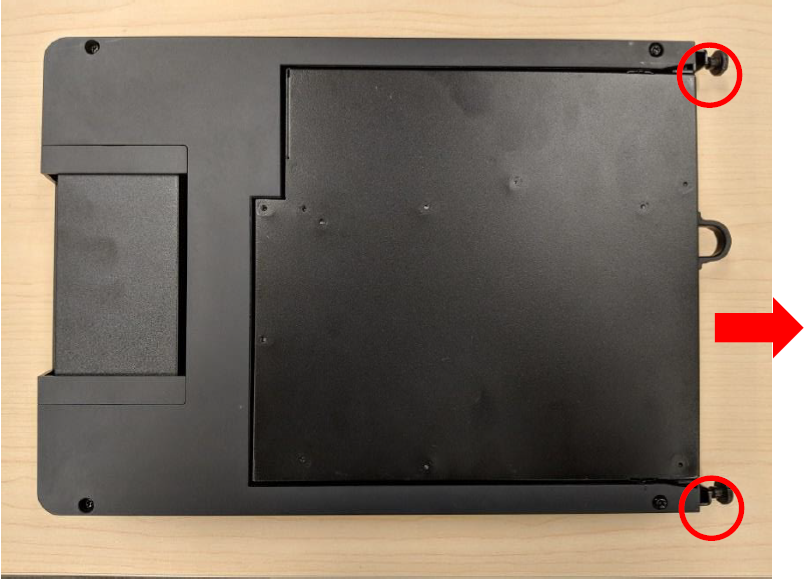

1. Thumbscrew'ları sökün ve ECM'yi Güç Modülünden çıkarın.

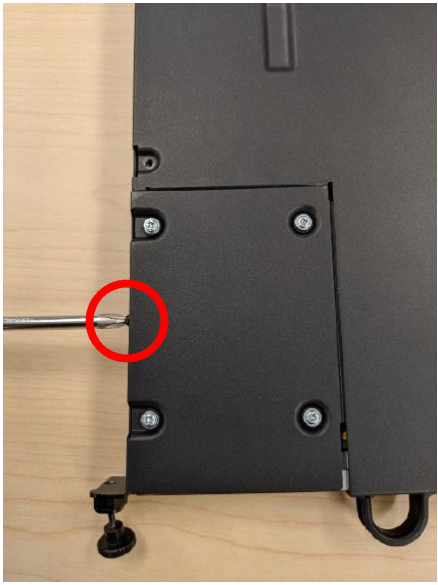

2. Sabit Disk kapısını ECM'den sökün.

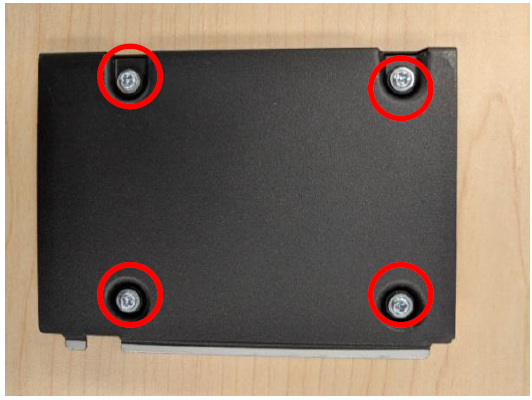

3. HDD/SSD'yi yerinde tutan 4 vida sökün.

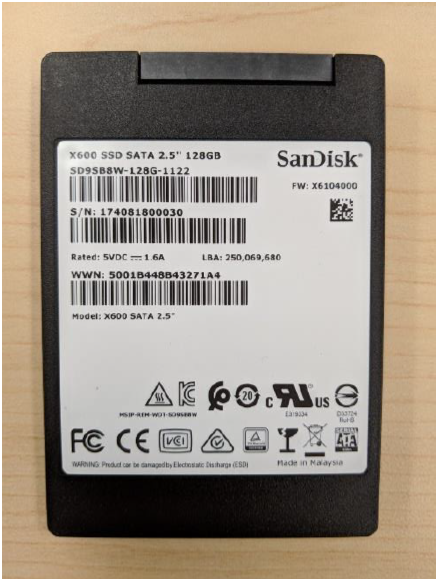

4. Yeni HDD/SSD'yi ECM'ye yerleştirin.


5. ECM'yi yukarıdaki sıralamanın tersine monte edin.


KB#000003213
